BU22-QRDT3 (1983)

Toyota Dyna

Production Feb 1983 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8302- )DTP ; (8302- )BU22,33,34..TB..20T

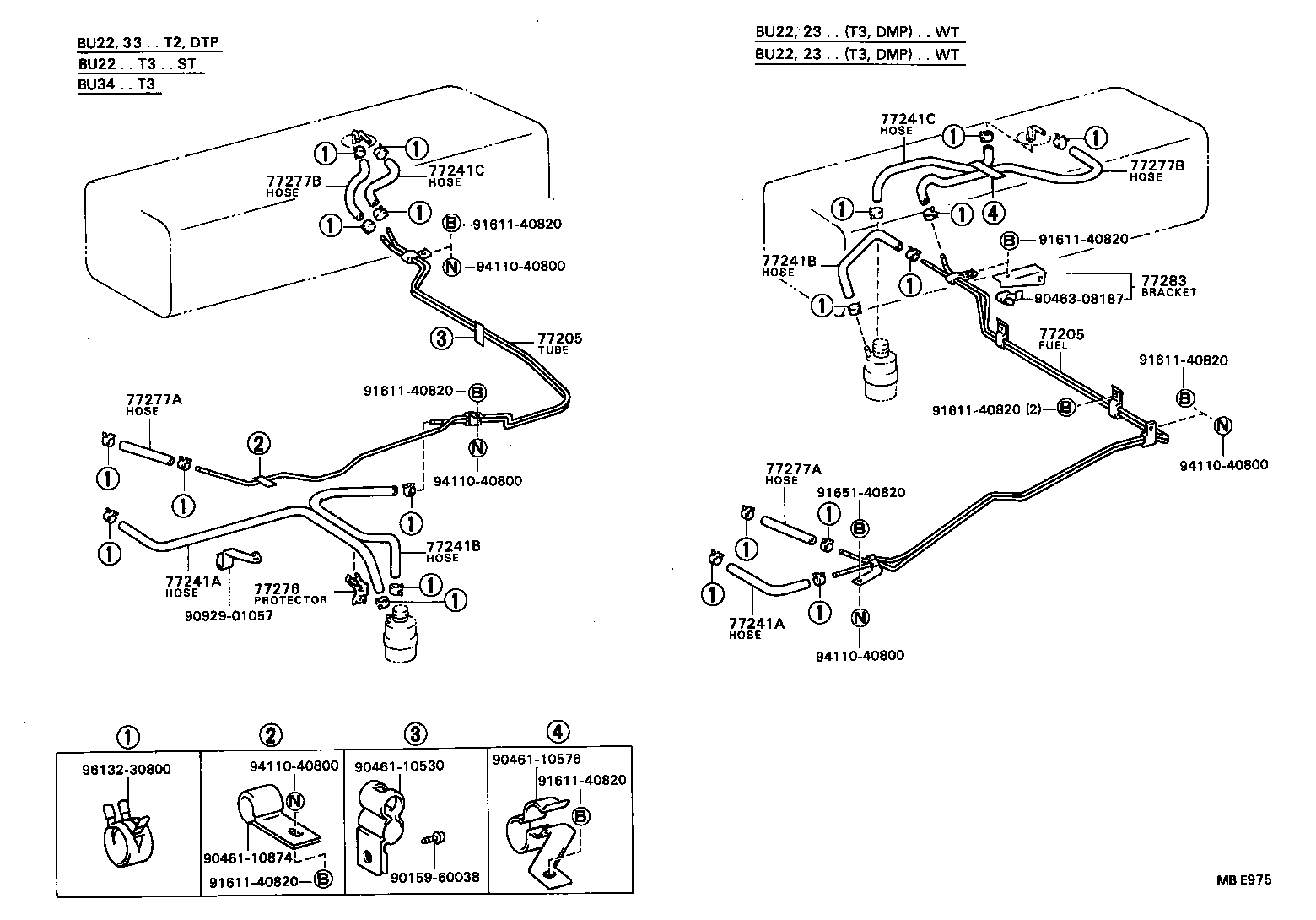

Click highlighted areas on diagram

diagram 77205 77205 77241A 77241A 77241B 77241B 77241C 77241C 77276 77277A 77277A 77277B 77277B 77283 9015960038 9046110530 9046110576 9046110874 9046308187 9092901057 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9165140820 9411040800 9411040800 9411040800 9411040800 9411040800 9613230800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-36070

BU2#..(DM1,DM4,TB)..H50

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-36070

BU2#..(DM1,DM4,TB)..H50

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08080

BU22..V

*H,L=750,内径=7.6

 1
95332-08020

BU23..DM1,DM4,TB;BU22,37,4#,51..H50,H51

*H,L=200,内径=7.6

 1
90445-14115

BU22..V

長さ=720

 1
23271-56020

BU22..V

L=720

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08080

BU22..V

*H,L=750,内径=7.6

 1
95332-08020

BU23..DM1,DM4,TB;BU22,37,4#,51..H50,H51

*H,L=200,内径=7.6

 1
90445-14115

BU22..V

長さ=720

 1
23271-56020

BU22..V

L=720

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040

BU22..V

長さ=400,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040

BU22..V

長さ=400,内径=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08060

BU2#..(DM1,DM4,TB)..H50

*H,L=600,内径=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08060

BU2#..(DM1,DM4,TB)..H50

*H,L=600,内径=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08020

BU2#,3#,4#,51

*H,L=170,内径=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08020

BU2#,3#,4#,51

*H,L=170,内径=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08070

BU2#..(DM1,DM4,TB)..H50

*H,L=700,内径=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08070

BU2#..(DM1,DM4,TB)..H50

*H,L=700,内径=7.6

 1
77283 - BRACKET, FUEL TUBE
58266-36030

BU22,25..H50;BU20..T3..03S..WT..ATP..DSL;BU20,21,23..(DM1,DM4,TB)..H50

 1
Common parts
90159-60038
90461-10530
90461-10576
90461-10874
90463-08187
90929-01057
91611-40820
91651-40820
94110-40800
96132-30800
