BU21D-QRSMTY (1982)

Toyota Dyna

Production Apr 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )

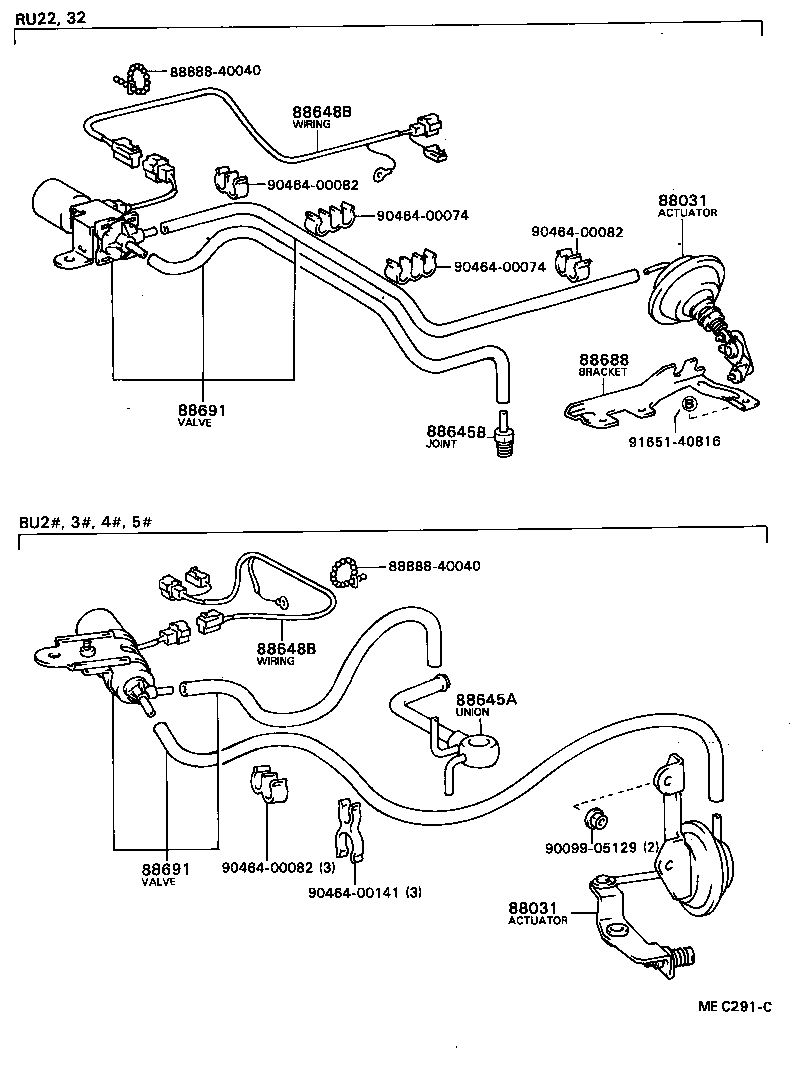

Click highlighted areas on diagram

diagram 88031 88031 88645A 88645B 88648B 88648B 88688 88691 88691 8888840040 8888840040 9009905129 9046400074 9046400074 9046400082 9046400082 9046400082 9046400141 9165140816
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-36030

BU2#,3#,4#,50

 1
88031 - ACTUATOR SET, IDLE-UP
88031-36030

BU2#,3#,4#,50

 1
Common parts
88888-40040
90099-05129
90464-00074
90464-00082
90464-00141
91651-40816
