BU21D-QRSMTY (1982)

Toyota Dyna

Production Apr 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )BU40,41,5#

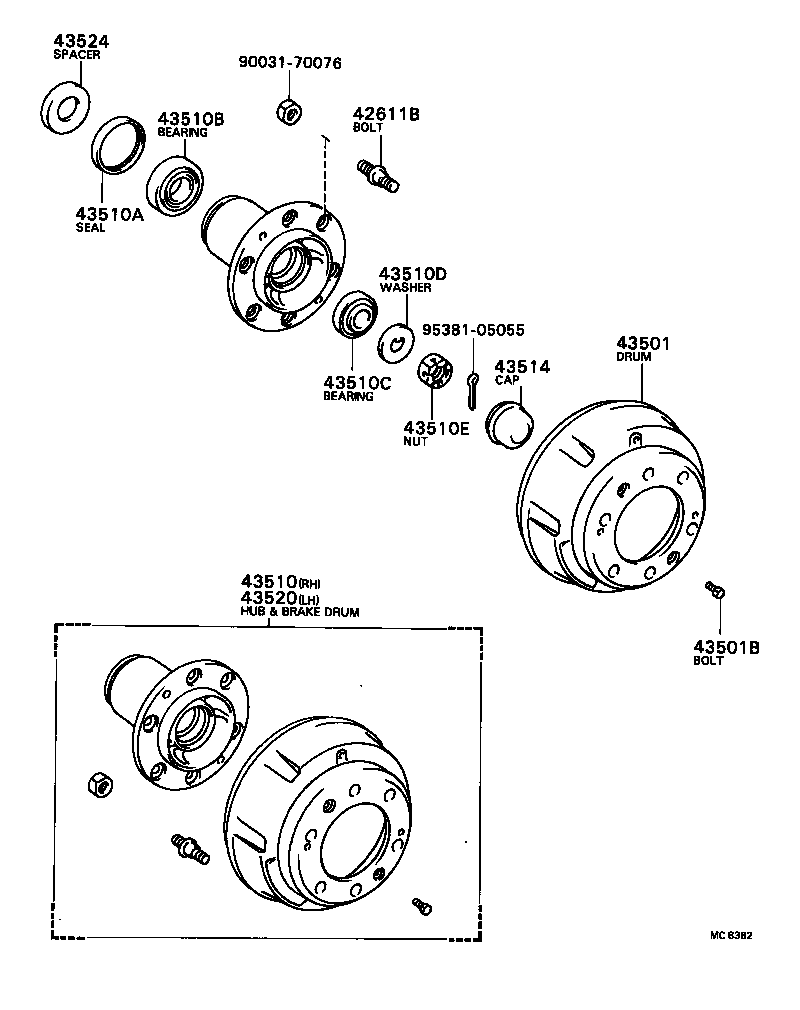

Click highlighted areas on diagram

diagram 42611B 43501 43501B 43510 43510A 43510B 43510C 43510D 43510E 43514 43520 43524 9003170076 9538105055
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02040

BU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL

LH

 6
90942-02039

BU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL

RH

 6
43501 - DRUM SUB-ASSY, FRONT BRAKE
43512-36030

BU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL

 2
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-36060

BU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL

 1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

BU2#,3#,45,46

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

BU2#,3#,45,46

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

BU2#,3#,45,46

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

BU2#,3#,45,46

 2
43510E - NUT (FOR STEERING KNUCKLE)
90171-26001

BU2#,3#

 2
43514 - CAP, FRONT HUB GREASE
43514-36030

BU2#,3#,45,46

 2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520-36060

BU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL

 1
Common parts
90031-70076
95381-05055
