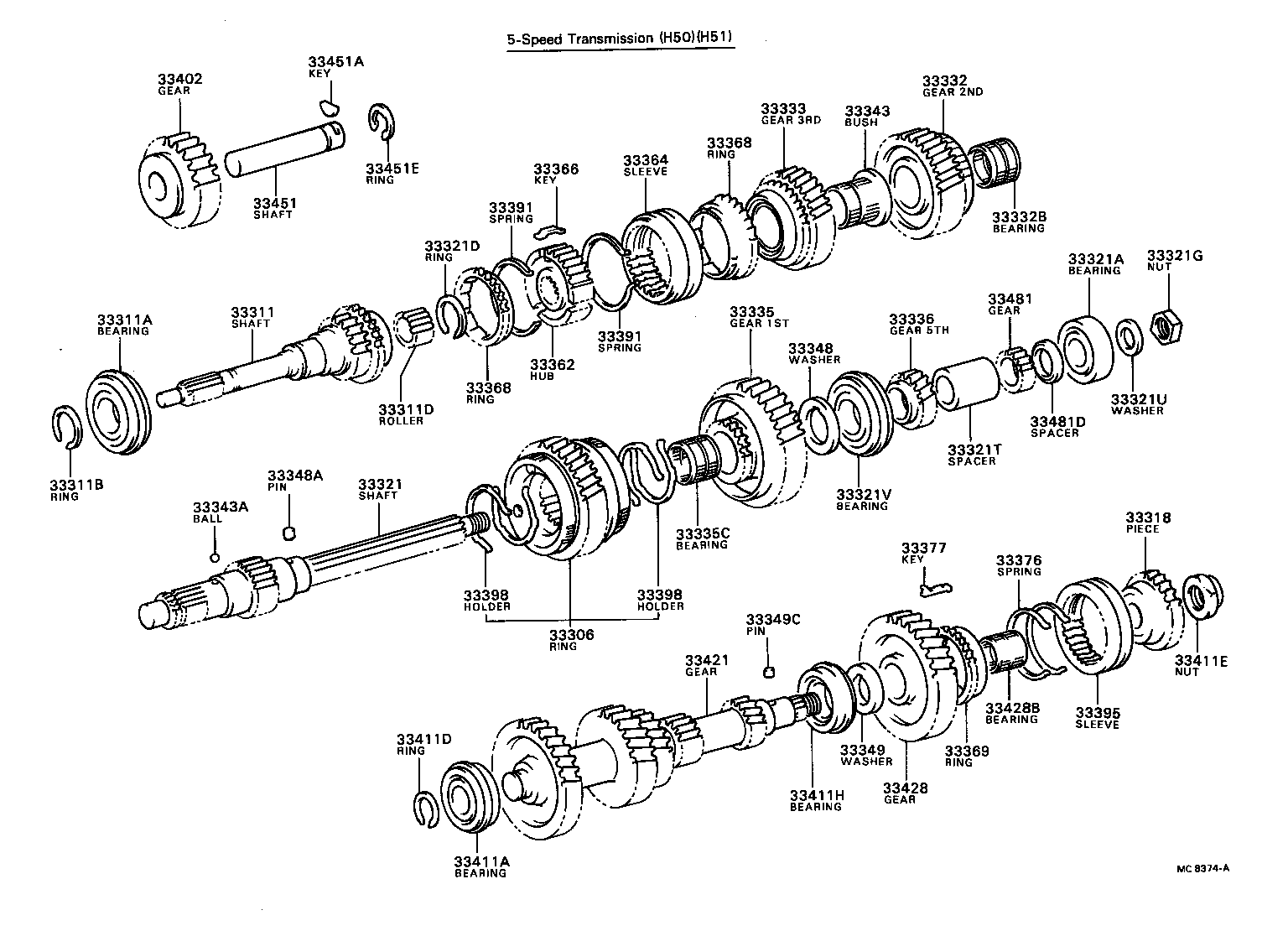

BU21D-QRSMTY (1982)
Toyota Dyna
(8204- )H50,H51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-36032 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-40004 |
BU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-36016 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 厚さ=3.20−3.31,T=3.20-3.31 |
1 | ||
| 90520-36015 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 厚さ=3.31−3.42,T=3.31-3.42 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
BU2#,3#,4#,5# |
17 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-36011 |
BU2#,32,36,4#,50..H50,H51 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36040 |
BU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97103-06232 |
BU2#,3# |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-36250 |
BU2#,3#,4#,5# 厚さ=2.40−2.45,T=2.40-2.45 |
1 | ||
| 90520-36252 |
BU2#,3#,4#,5# 厚さ=2.50−2.55,T=2.50-2.55 |
1 | ||
| 90520-36254 |
BU2#,3#,4#,5# 厚さ=2.60−2.65,T=2.60-2.65 |
1 | ||
| 90520-36255 |
BU2#,3#,4#,5# 厚さ=2.65−2.70,T=2.65-2.70 |
1 | ||
| 90520-36251 |
BU2#,3#,4#,5# 厚さ=2.45−2.50,T=2.45-2.50 |
1 | ||
| 90520-36253 |
BU2#,3#,4#,5# 厚さ=2.55−2.60,T=2.55-2.60 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20061 |
BU2#,3# |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-32442 |
BU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50 |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-20479 |
BU2#,3# |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-40004 |
BU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-36012 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-44065 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-36013 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-36042 |
BU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-44065 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-36020 |
BU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50 |
1 | ||
| 33343 - BUSH, 3RD & 2ND GEAR | ||||
| 33343-36020 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-36012 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
BU2#,3#,4#,5# |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36051 |
BU2#,3#,4#,5# |
1 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36020 |
BU2#,3#,4#,5# |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BU2#,3#,4#,5# |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BU2#,3#,4#,5# |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
BU2#,3# |
1 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
BU2#,3# |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33366-14010 |
BU2#,3# |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BU2#,3#,4#,5# |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BU2#,3#,4#,5# |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33364-14010 |
BU2#,3# |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-36021 |
BU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-32002 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-30218 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 厚さ=2.25,ﾏｰｸ 4,T=2.25-2.30 |
1 | ||
| 90520-30214 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 厚さ=2.05,ﾏｰｸ 0,T=2.05-2.10 |
1 | ||
| 90520-30216 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 厚さ=2.15,ﾏｰｸ 2,T=2.15-2.25 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-32010 |
BU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33411-36040 |
BU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50 |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-36020 |
BU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36022 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,32,34,36,37,4#,5#..H50,H51 |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03015 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36050 |
BU2#..KKT,TSK N=4,DRIVEN GEAR N=17 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36020 |
BU2#,3# |
1 | ||
