BU21D-QRMTUMY3 (1982)
Toyota Dyna
Production
Apr 1982
-
Feb 1983
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

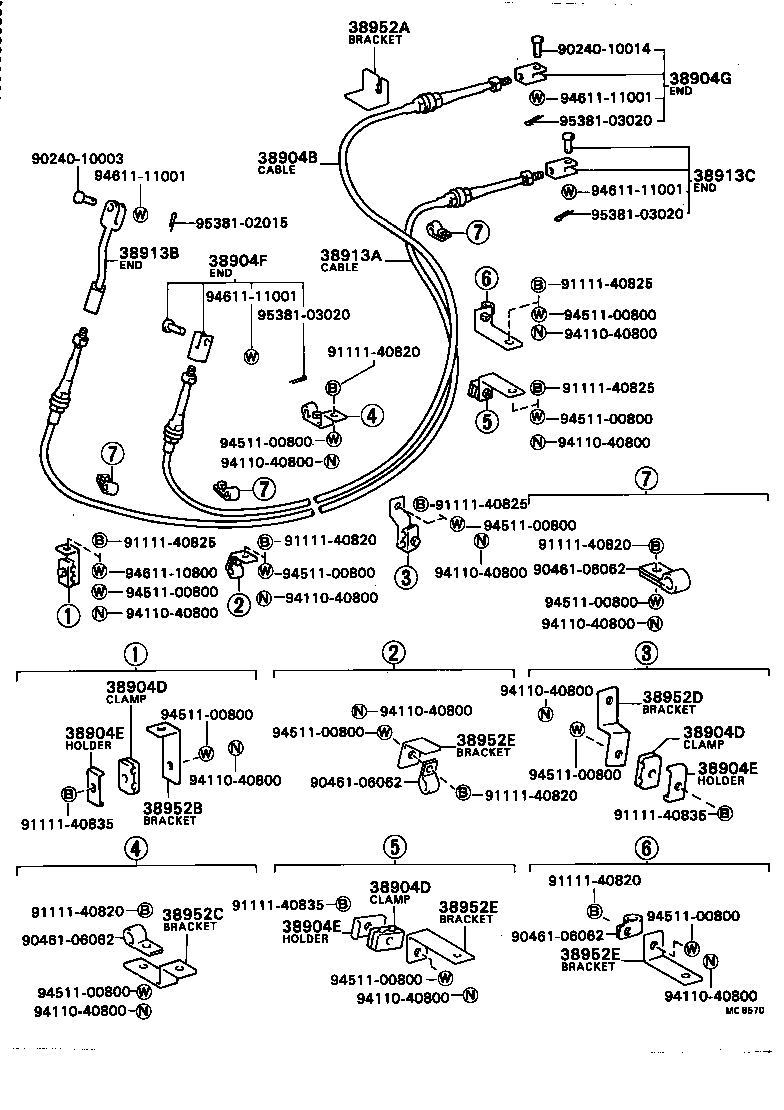

ILLUST NO. 2 OF 4(8204- )DM3
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38904D - CLAMP, CABLE PUSH PULL | ||||
| 38987-93200 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT |
4 | ||
| 38904D - CLAMP, CABLE PUSH PULL | ||||
| 38987-93200 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT |
4 | ||
| 38904D - CLAMP, CABLE PUSH PULL | ||||
| 38987-93200 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT |
4 | ||
| 38904E - HOLDER, CABLE PUSH PULL CLAMP | ||||
| 38988-93200 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT |
4 | ||
| 38904E - HOLDER, CABLE PUSH PULL CLAMP | ||||
| 38988-93200 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT |
4 | ||
| 38904E - HOLDER, CABLE PUSH PULL CLAMP | ||||
| 38988-93200 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT |
4 | ||
| Common parts | ||||
| 90240-10003 | ||||
| 90240-10014 | ||||
| 90461-06062 | ||||
| 91111-40820 | ||||
| 91111-40825 | ||||
| 91111-40835 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
| 94611-11001 | ||||
| 95381-02015 | ||||
| 95381-03020 | ||||
