BU21-QRDTY3 (1982)

Toyota Dyna

Production Apr 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8204- )3B..BU40,41,5#

Click highlighted areas on diagram

diagram 17709 17710A 17710A 17710C 17714 17771 17771 17881 17881 17881A 17881A 17881A 17881A 17882 17882A 17882A 17885 9011908171 9020108267 9020108267 9048022009 9048022009 9056008018 9056008018 9095001065 9165140816 9165140816 9165140816 9411040800 9411040800 9411040800 9451200800 9461410800 9611110780
Part # Description Qty Price
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
Common parts
90119-08171
90201-08267
90480-22009
90560-08018
90950-01065
91651-40816
94110-40800
94512-00800
94614-10800
96111-10780

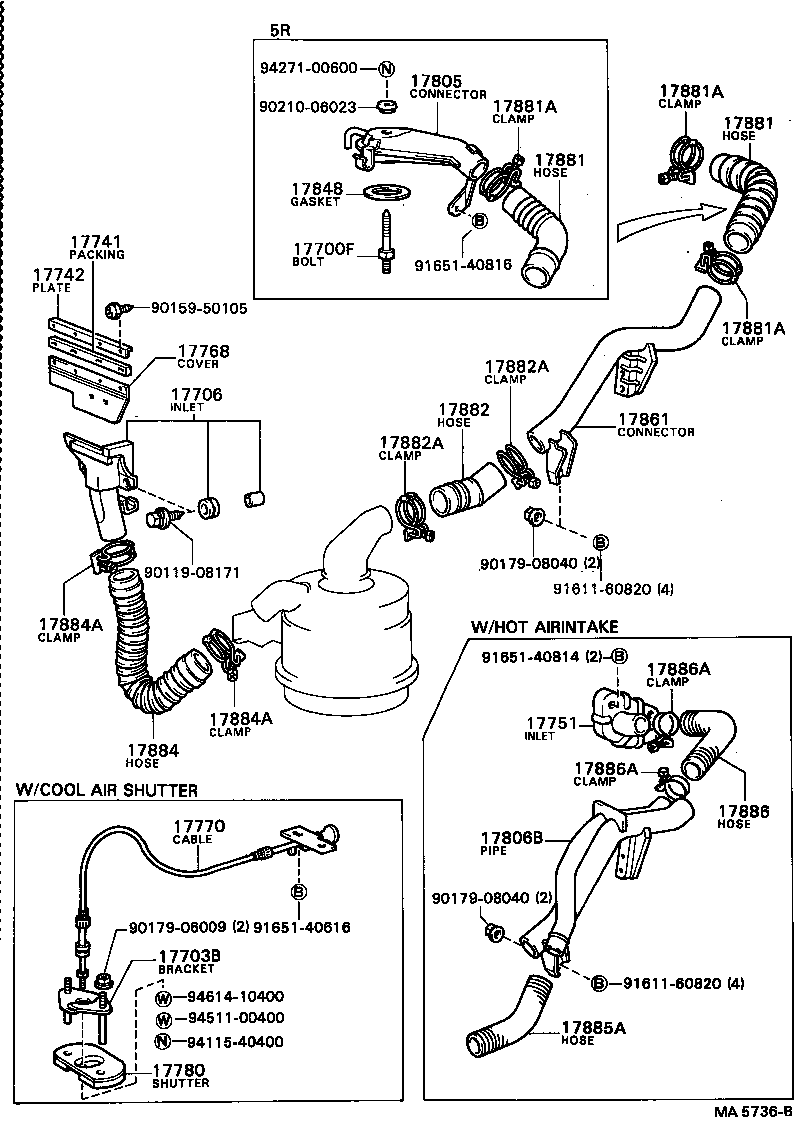

ILLUST NO. 2 OF 2(8204- )B,3B..BU2#,3#,45,46

Click highlighted areas on diagram

diagram 17700F 17703B 17706 17741 17742 17751 17768 17770 17780 17805 17806B 17848 17861 17881 17881 17881A 17881A 17881A 17882 17882A 17882A 17884 17884A 17884A 17885A 17886 17886A 17886A 9011908171 9015950105 9017906009 9017908040 9017908040 9021006023 9161160820 9161160820 9165140616 9165140814 9165140816 9411540400 9427100600 9451100400 9461410400
Part # Description Qty Price
17861 - CONNECTOR, INTAKE AIR
17805-56010

B,2B..BU2#,3#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
Common parts
90119-08171
90159-50105
90179-06009
90179-08040
90210-06023
91611-60820
91651-40616
91651-40814
91651-40816
94115-40400
94271-00600
94511-00400
94614-10400

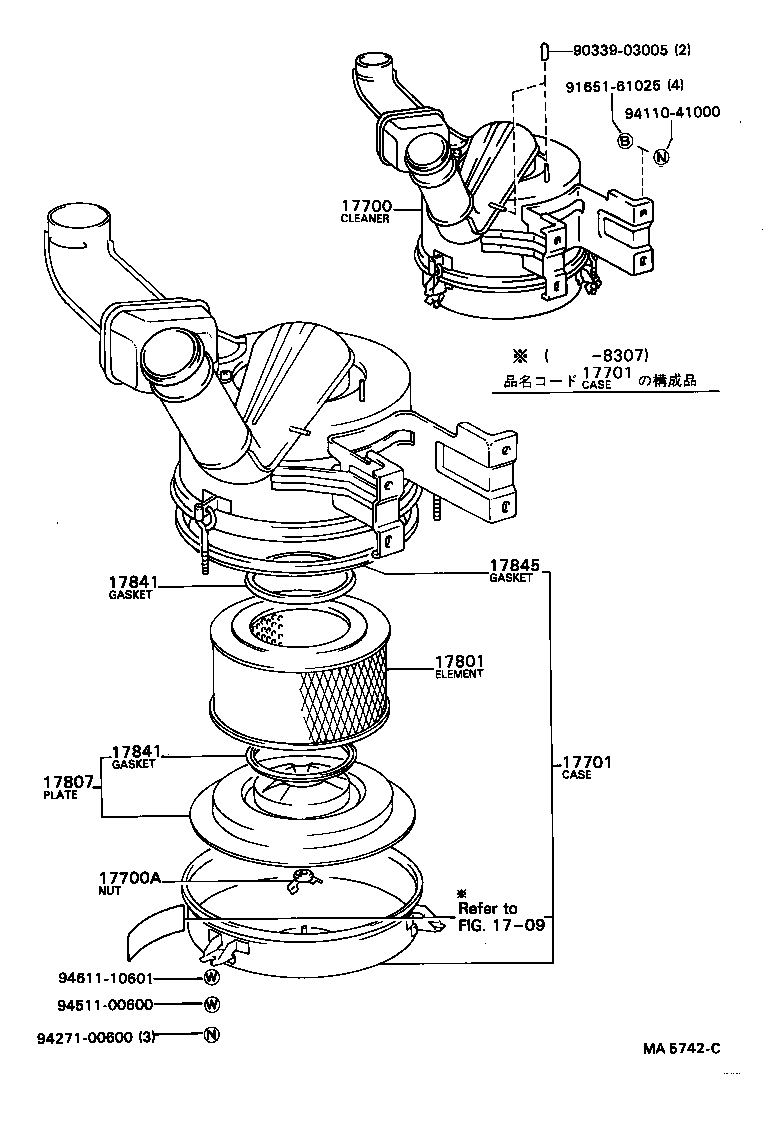

(8204- )3B..BU40,41,5#

Click highlighted areas on diagram

diagram 1709 17700 17700A 17701 17701 17801 17807 17841 17841 17845 9033903005 9165161025 9411041000 9427100600 9451100600 9461110601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-56163

B,3B..BU2#,30,32

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

B,2B,3B..BU2#,3#,45,46

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-48070

B..BU2#,30

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-48070

B..BU2#,30

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-48011

B,2B,3B..BU2#,3#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-56010

B,2B..BU2#,3#

 1
17841 - GASKET, FILTER ELEMENT
17841-56010

B,2B..BU2#,3#

 2
17841 - GASKET, FILTER ELEMENT
17841-56010

B,2B..BU2#,3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-56020

B,2B,3B..BU2#,3#,45,46

 1
Common parts
90339-03005
91651-61025
94110-41000
94271-00600
94511-00600
94611-10601
Linked diagrams
1709
