BU21-QRDTY3 (1982)

Toyota Dyna

Production Apr 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )3B..BU40,41,5#

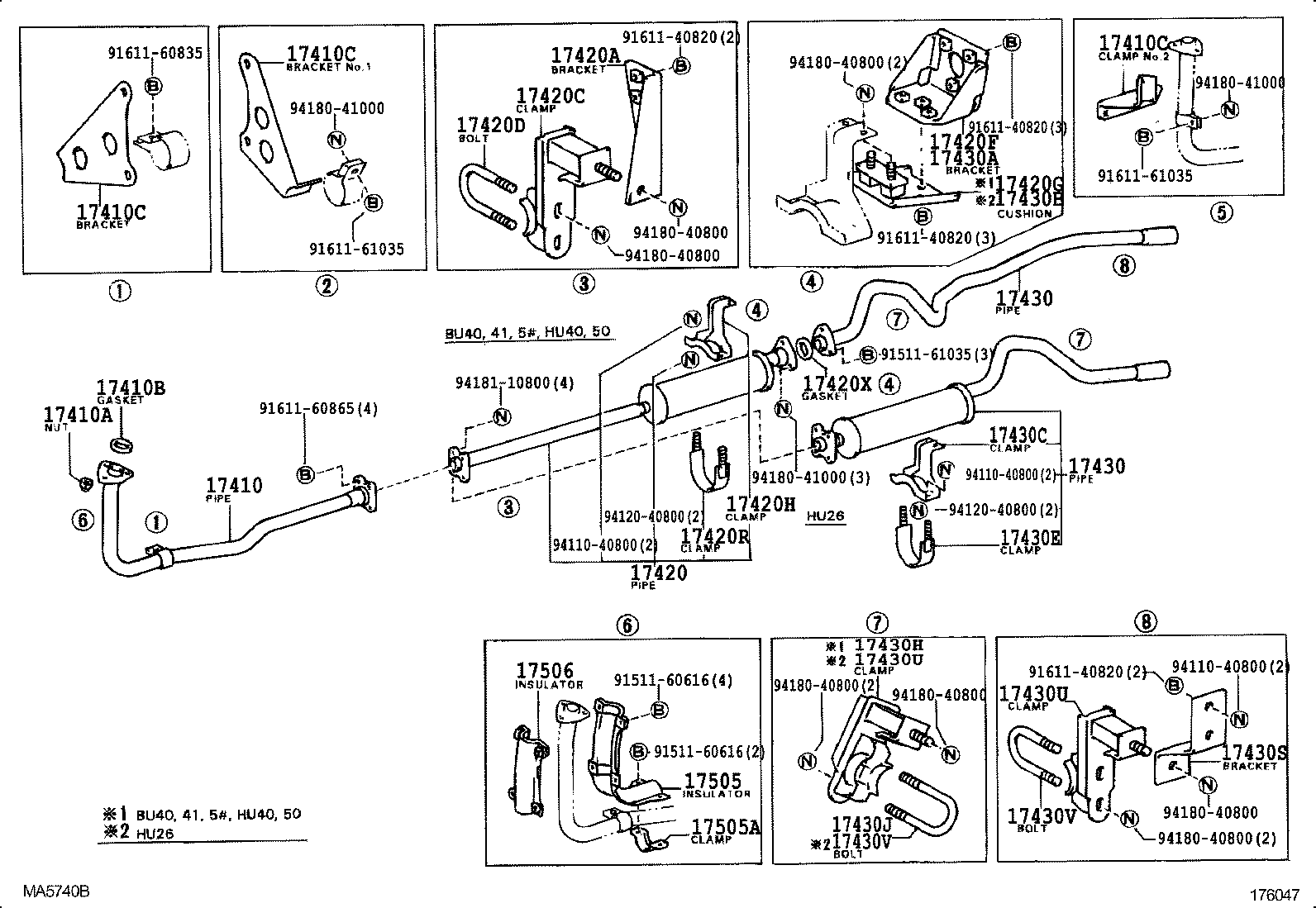

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410C 17410C 17420 17420A 17420C 17420D 17420F 17420G 17420H 17420R 17420X 17430 17430 17430A 17430B 17430C 17430E 17430H 17430J 17430S 17430U 17430U 17430V 17430V 17505 17505A 17506 9151160616 9151160616 9151161035 9161140820 9161140820 9161140820 9161140820 9161160835 9161160865 9161161035 9161161035 9411040800 9411040800 9411040800 9412040800 9412040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000 9418041000 9418041000 9418110800
Part # Description Qty Price
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114

B,2B..BU2#,3#

 2
17410B - GASKET, EXHAUST PIPE
90917-06008

B,2B..BU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56010

B..BU2#,30

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56010

B..BU2#,30

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56010

B..BU2#,30

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

B..BU2#..WT

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-44031

B..BU2#..H50;B..BU20..T3..03S..WT..ATP

FRAME SIDE

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-14001

B..BU2#,30

 2
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
17578-56010

B..BU2#,30

 1
17578-56010

B..BU2#

W/EXHAUST BRAKE

 1
Common parts
91511-60616
91511-61035
91611-40820
91611-60835
91611-60865
91611-61035
94110-40800
94120-40800
94180-40800
94180-41000
94181-10800
