BU20V-QR (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(7708-7904)ST ; (7708-7904)T2 ; (7904-8204)BU20..TR,V..M50

Click highlighted areas on diagram

diagram 45222 45240 45240A 45240A 45240B 45301 45301A 45301B 45301D 45301H 45310 45312 45321 45323 45331 45332 45351 45351A 45352 45357 45372 45401 9017012161 9111271032 9161161022 9161161022 9411051000 9451102200 9451201000 9451201000
Part # Description Qty Price
45222 - COVER, STEERING GEAR DUST
45222-26010

BU2#,3#,4#,5#

STEERING GEAR HOUSING SIDE

 1
45222-36011

BU2#,3#,4#,5#

STEERING MAIN SHAFT SIDE

 1
45240 - WORM ASSY, STEERING
45240-36030

BU20..T2;BU20,30..ST

 1
45240A - BEARING(FOR STEERING WORM)
90363-20003

BU20..T2;BU20,30..ST

 2
45240A - BEARING(FOR STEERING WORM)
90363-20003

BU20..T2;BU20,30..ST

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-18001

BU20..T2;BU20,30..ST

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-36070

BU20..T2;BU20,30..ST

 1
45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1
90999-73061

BU20..T2;BU20,30..ST

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-32024

BU20..T2;BU20,30..ST

 1
45301D - BOLT, STUD(FOR STEERING GEAR HOUSING)
90116-10101

BU20..T2;BU20,30..ST

 1
45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2
90999-73061

BU20..T2;BU20,30..ST

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-36090

BU20..T2;BU20,30..ST

 1
45312 - BRACKET, STEERING GEAR HOUSING
45312-36140

BU20..T2;BU20,30..ST

 1
45323 - SHIM, GEAR HOUSING END COVER
45323-36020

BU20..T2;BU20,30..ST

厚さ=0.065−0.075

 1
45323-36030

BU20..T2;BU20,30..ST

厚さ=0.072−0.088

 1
45323-36040

BU20..T2;BU20,30..ST

厚さ=0.092−0.108

 1
45323-36010

BU20..T2;BU20,30..ST

厚さ=0.045−0.055

 1
45323-36050

BU20..T2;BU20,30..ST

厚さ=0.185−0.215

 1
45323-36060

BU20..T2;BU20,30..ST

厚さ=0.485−0.515

 1
45331 - COVER, SECTOR SHAFT END
45304-36020

BU20..T2;BU20,30..ST

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-36010

BU20..T2;BU20,30..ST

 1
45351 - SHAFT, STEERING SECTOR
45351-36020

BU20..T2;BU20,30..ST

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-22058

BU20..T2;BU20,30..ST

 1
45352 - WASHER, SECTOR SHAFT THRUST
45353-36010

BU20..T2;BU20,30..ST

厚さ=2.05

 1
45352-36010

BU20..T2;BU20,30..ST

厚さ=2.00

 1
45354-36010

BU20..T2;BU20,30..ST

厚さ=2.10

 1
45356-36010

BU20..T2;BU20,30..ST

厚さ=2.20

 1
45355-36010

BU20..T2;BU20,30..ST

厚さ=2.15

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-36020

BU20..T2;BU20,30..ST

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03058

BU2#,3#,45,46

 1
45401 - ARM SUB-ASSY, PITMAN
45401-36120

BU20..T2;BU20,30..ST

 1
Common parts
90170-12161
91112-71032
91611-61022
94110-51000
94511-02200
94512-01000

ILLUST NO. 1 OF 3(7708- )

Click highlighted areas on diagram

diagram 33621 33621 45025 45025C 45201 45201A 45201A 45201B 45201B 45201B 45205 45222 45222B 45231C 45231D 45231K 45244 45244B 45246 45254 45269 45275 45275A 45281 45281 45281E 45281E 45281F 45281F 45281G 45281G 45288 45292 45807 45807 45807C 9016450048 9161140820 9161160820 9166540625 9331514012 9331915010 9451201000 9645600609
Part # Description Qty Price
33621 - PLATE, CONTROL LEVER CAUTION
33621-36020

BU2#,30,31,32,33,34..5H

 1
33621 - PLATE, CONTROL LEVER CAUTION
33621-36020

BU2#,30,31,32,33,34..5H

 1
45025 - COVER, STEERING INTERMEDIATE SHAFT
45025-36010

BU25,30..5H;BU20..(HRF,SRF,T1,T2,T3,TW1)..5H

 1
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-36010

BU2#,3#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

BU2#,3#,4#,5#

UPR

 1
90363-35003

BU2#,3#,4#,5#

LWR

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

BU2#,3#,4#,5#

UPR

 1
90363-35003

BU2#,3#,4#,5#

LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

BU2#,3#,4#,5#

厚さ=1.20,UPR BEARING,LWR

 1
90521-59001

BU2#,3#,4#,5#

LWR BEARING

 1
90520-17269

BU2#,3#,4#,5#

厚さ=1.20,UPR BEARING,UPR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

BU2#,3#,4#,5#

厚さ=1.20,UPR BEARING,LWR

 1
90521-59001

BU2#,3#,4#,5#

LWR BEARING

 1
90520-17269

BU2#,3#,4#,5#

厚さ=1.20,UPR BEARING,UPR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

BU2#,3#,4#,5#

厚さ=1.20,UPR BEARING,LWR

 1
90521-59001

BU2#,3#,4#,5#

LWR BEARING

 1
90520-17269

BU2#,3#,4#,5#

厚さ=1.20,UPR BEARING,UPR

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-36101

BU2#,30,31,32,33,34..5H

 1
45222 - COVER, STEERING GEAR DUST
45222-26010

BU2#,3#,4#,5#

STEERING GEAR HOUSING SIDE

 1
45222-36011

BU2#,3#,4#,5#

STEERING MAIN SHAFT SIDE

 1
45222B - RING, DUST COVER SET
90520-32011

BU2#,3#

 1
45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT
37402-10020

BU2#,3#,4#,5#

 8
45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT)
90521-22013

BU2#,3#,4#,5#

T=1.30

 8
90521-22011

BU2#,3#,4#,5#

T=1.20

 8
90521-22012

BU2#,3#,4#,5#

T=1.25

 8
45231K - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)
04371-10011

BU2#,3#,4#,5#

 2
45244 - YOKE, STEERING WORM
45244-36010

BU2#,3#

 1
45244B - PIN OR BOLT(FOR STEERING WORM YOKE)
91111-51032

BU2#,3#

 1
45246 - YOKE, STEERING INTERMEDIATE
45246-36050

BU2#,3#,4#,5#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-36040

BU20,21,25,30,31,32,35,36,40,45,50

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-36010

BU2#,3#,4#,5#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36050

BU2#,3#,4#,50

 1
45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
91611-40616

BU2#,3#

 3
45281 - HOUSING, STEERING COLUMN
45286-36090

BU2#;BU30..20T;BU30..06S

UPR,W/O EXHAUST BRAKE

 1
45287-36070

BU2#;BU30..20T;BU30..06S

LWR,W/O EXHAUST BRAKE

 1
45281 - HOUSING, STEERING COLUMN
45286-36090

BU2#;BU30..20T;BU30..06S

UPR,W/O EXHAUST BRAKE

 1
45287-36070

BU2#;BU30..20T;BU30..06S

LWR,W/O EXHAUST BRAKE

 1
45281E - PLATE, SAFETY CAUTION
45283-22010

BU2#,3#,4#,5#

 1
45281E - PLATE, SAFETY CAUTION
45283-22010

BU2#,3#,4#,5#

 1
45288 - PLATE, STEERING COLUMN COVER
45288-36010

BU2#,3#

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-36020

BU2#,3#,4#,5#

 1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
55662-95406

BU2#,3#,4#,5#

LWR

 1
55661-95406

BU2#,3#,4#,5#

UPR

 1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
55662-95406

BU2#,3#,4#,5#

LWR

 1
55661-95406

BU2#,3#,4#,5#

UPR

 1
45807C - GROMMET(FOR STEERING COLUMN CLAMP)
90480-50002

BU2#,3#,4#,5#

 1
Common parts
90164-50048
91611-40820
91611-60820
91665-40625
93315-14012
93319-15010
94512-01000
96456-00609

ILLUST NO. 2 OF 3(7708-7904) ; (7904-8204)DTP ; (7904-8204)BU25,3# ; (7904-8204)BU20..H50 ; (8204-

Click highlighted areas on diagram

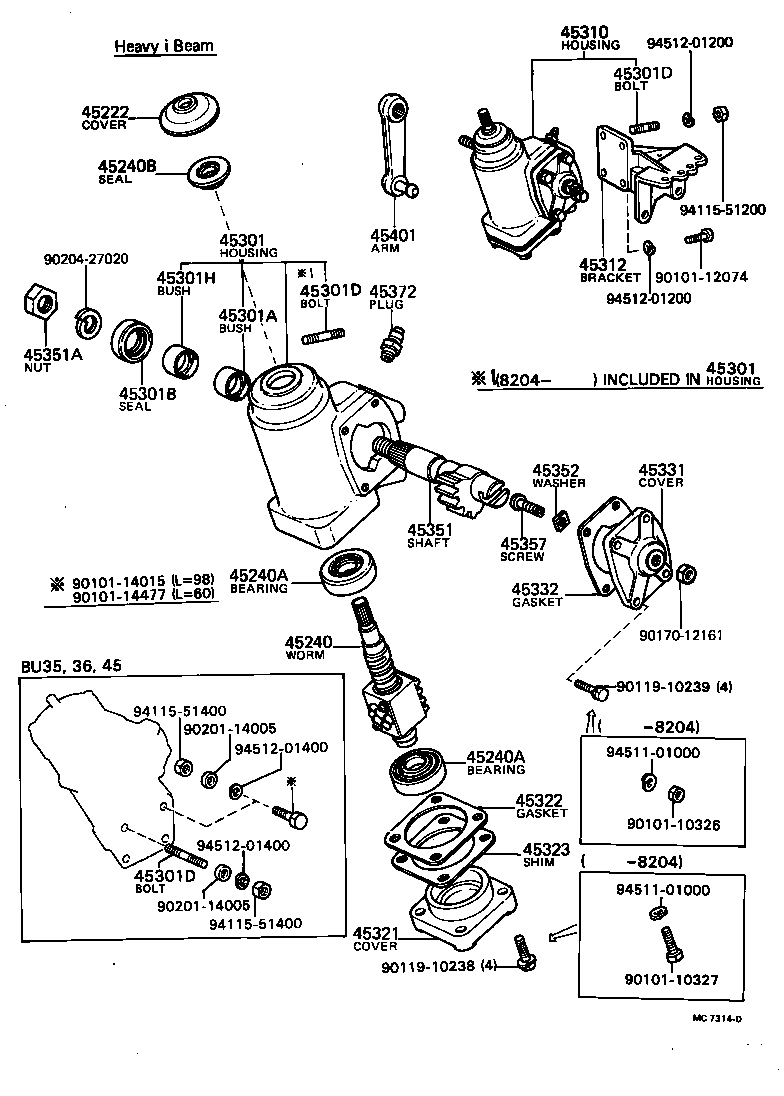

diagram 45222 45240 45240A 45240A 45240B 45301 45301 45301A 45301B 45301D 45301D 45301D 45301H 45310 45312 45321 45322 45323 45331 45332 45351 45351A 45352 45357 45372 45401 9010110326 9010110327 9010112074 9010114015 9010114477 9011910238 9011910239 9017012161 9020114005 9020114005 9020427020 9411551200 9411551400 9411551400 9451101000 9451101000 9451201200 9451201200 9451201400 9451201400
Part # Description Qty Price
45222 - COVER, STEERING GEAR DUST
45222-26010

BU2#,3#,4#,5#

STEERING GEAR HOUSING SIDE

 1
45222-36011

BU2#,3#,4#,5#

STEERING MAIN SHAFT SIDE

 1
45240 - WORM ASSY, STEERING
45240-36030

BU20..T2;BU20,30..ST

 1
45240A - BEARING(FOR STEERING WORM)
90363-20003

BU20..T2;BU20,30..ST

 2
45240A - BEARING(FOR STEERING WORM)
90363-20003

BU20..T2;BU20,30..ST

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-18001

BU20..T2;BU20,30..ST

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-36070

BU20..T2;BU20,30..ST

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-36070

BU20..T2;BU20,30..ST

 1
45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1
90999-73061

BU20..T2;BU20,30..ST

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-32024

BU20..T2;BU20,30..ST

 1
45301D - BOLT, STUD(FOR STEERING GEAR HOUSING)
90116-10101

BU20..T2;BU20,30..ST

 1
45301D - BOLT, STUD(FOR STEERING GEAR HOUSING)
90116-10101

BU20..T2;BU20,30..ST

 1
45301D - BOLT, STUD(FOR STEERING GEAR HOUSING)
90116-10101

BU20..T2;BU20,30..ST

 1
45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2
90999-73061

BU20..T2;BU20,30..ST

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-36090

BU20..T2;BU20,30..ST

 1
45312 - BRACKET, STEERING GEAR HOUSING
45312-36140

BU20..T2;BU20,30..ST

 1
45323 - SHIM, GEAR HOUSING END COVER
45323-36020

BU20..T2;BU20,30..ST

厚さ=0.065−0.075

 1
45323-36030

BU20..T2;BU20,30..ST

厚さ=0.072−0.088

 1
45323-36040

BU20..T2;BU20,30..ST

厚さ=0.092−0.108

 1
45323-36010

BU20..T2;BU20,30..ST

厚さ=0.045−0.055

 1
45323-36050

BU20..T2;BU20,30..ST

厚さ=0.185−0.215

 1
45323-36060

BU20..T2;BU20,30..ST

厚さ=0.485−0.515

 1
45331 - COVER, SECTOR SHAFT END
45304-36020

BU20..T2;BU20,30..ST

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-36010

BU20..T2;BU20,30..ST

 1
45351 - SHAFT, STEERING SECTOR
45351-36020

BU20..T2;BU20,30..ST

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-22058

BU20..T2;BU20,30..ST

 1
45352 - WASHER, SECTOR SHAFT THRUST
45353-36010

BU20..T2;BU20,30..ST

厚さ=2.05

 1
45352-36010

BU20..T2;BU20,30..ST

厚さ=2.00

 1
45354-36010

BU20..T2;BU20,30..ST

厚さ=2.10

 1
45356-36010

BU20..T2;BU20,30..ST

厚さ=2.20

 1
45355-36010

BU20..T2;BU20,30..ST

厚さ=2.15

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-36020

BU20..T2;BU20,30..ST

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03058

BU2#,3#,45,46

 1
45401 - ARM SUB-ASSY, PITMAN
45401-36120

BU20..T2;BU20,30..ST

 1
Common parts
90101-10326
90101-10327
90101-12074
90101-14015
90101-14477
90119-10238
90119-10239
90170-12161
90201-14005
90204-27020
94115-51200
94115-51400
94511-01000
94512-01200
94512-01400
