BU20K-QRDY3 (1979)

Toyota Dyna

Production Apr 1979 - Feb 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(7708-8302)BU2#,3#

Click highlighted areas on diagram

diagram 77241 77241 77241 77241 77241A 77241A 77241A 77241A 77241B 77241B 77241B 77241B 77241C 77242 77283 9017908001 9046108422 9046108422 9046108557 9046110874 9048030207 9161140820 9161140820 9161140820 9161140820 9161140820 9165140820 9359016020 9411040800 9411040800 9411040800 9411040800 9411041000 9613230800 9622120908 9622120908
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-36380

BU20,21..BTP,CTP,DTP,FTP

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36380

BU20,21..BTP,CTP,DTP,FTP

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36380

BU20,21..BTP,CTP,DTP,FTP

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36380

BU20,21..BTP,CTP,DTP,FTP

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08024

BU20,30

*H,L=240,内径=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08024

BU20,30

*H,L=240,内径=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08024

BU20,30

*H,L=240,内径=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08024

BU20,30

*H,L=240,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08040

BU20,21..BTP,CTP,DTP,FTP

*H,L=320,内径=7.6

 1
95337-08020

BU40,50

*H,L=180,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08040

BU20,21..BTP,CTP,DTP,FTP

*H,L=320,内径=7.6

 1
95337-08020

BU40,50

*H,L=180,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08040

BU20,21..BTP,CTP,DTP,FTP

*H,L=320,内径=7.6

 1
95337-08020

BU40,50

*H,L=180,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08040

BU20,21..BTP,CTP,DTP,FTP

*H,L=320,内径=7.6

 1
95337-08020

BU40,50

*H,L=180,内径=7.6

 1
77283 - BRACKET, FUEL TUBE
58266-36020

BU30;BU20..ST;BU20..T2;BU20..BTP,CTP

 1
Common parts
90179-08001
90461-08422
90461-08557
90461-10874
90480-30207
91611-40820
91651-40820
93590-16020
94110-40800
94110-41000
96132-30800
96221-20908

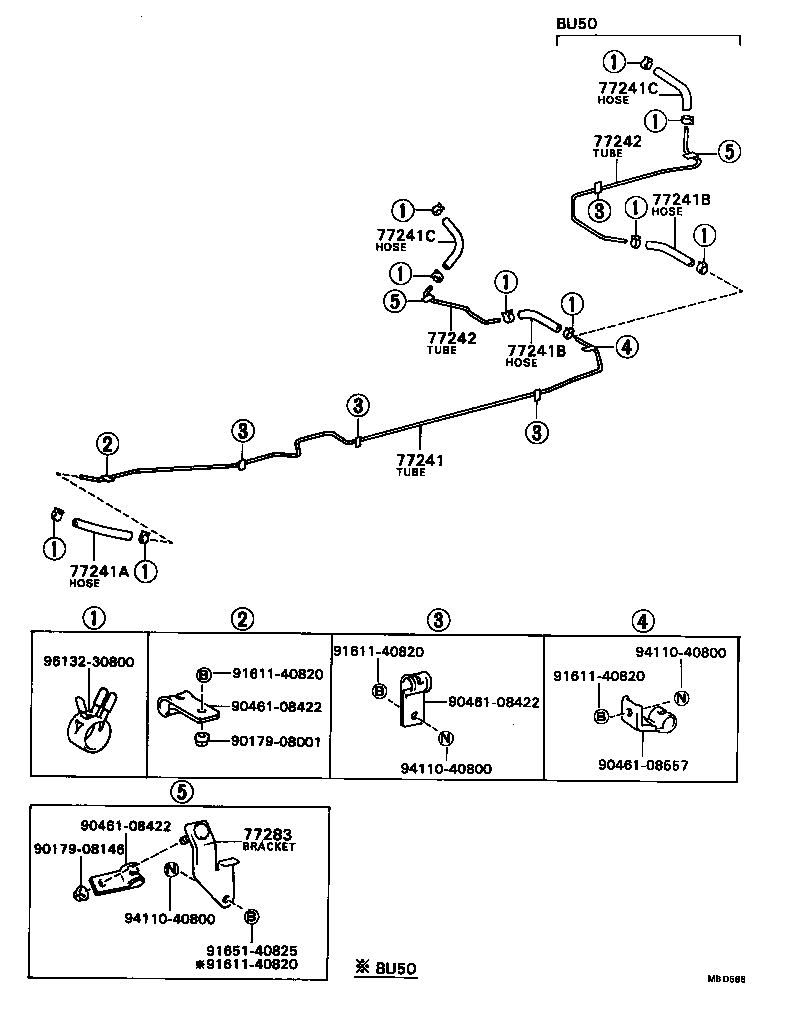

ILLUST NO. 2 OF 2(8204-8302)BU4#,50

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77241B 77241C 77241C 77242 77242 77283 9017908001 9017908146 9046108422 9046108422 9046108422 9046108557 9161140820 9161140820 9161140820 9161140820 9165140825 9411040800 9411040800 9411040800 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-36380

BU20,21..BTP,CTP,DTP,FTP

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08024

BU20,30

*H,L=240,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08040

BU20,21..BTP,CTP,DTP,FTP

*H,L=320,内径=7.6

 1
95337-08020

BU40,50

*H,L=180,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08040

BU20,21..BTP,CTP,DTP,FTP

*H,L=320,内径=7.6

 1
95337-08020

BU40,50

*H,L=180,内径=7.6

 1
77283 - BRACKET, FUEL TUBE
58266-36020

BU30;BU20..ST;BU20..T2;BU20..BTP,CTP

 1
Common parts
90179-08001
90179-08146
90461-08422
90461-08557
91611-40820
91651-40825
94110-40800
96132-30800
