BU20HV-QRE (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )V

Click highlighted areas on diagram

diagram 63102 63102 63104 63105 63105 63105 63105 63105 63132 63147 63171 63171 63172 63172 63172 63173 63174 63174 63175 66103 66103 66111 66111 9165140614 9165140614 9165640816 9331516014
Part # Description Qty Price
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63301-92106

BU20,22..HRF

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63301-92106

BU20,22..HRF

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92106

BU20,22..HRF

 3
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92106

BU20,22..HRF

 3
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92106

BU20,22..HRF

 3
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92106

BU20,22..HRF

 3
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92106

BU20,22..HRF

 3
63171 - PANEL, ROOF, FRONT
63111-92105

BU20,22..HRF

 1
63171 - PANEL, ROOF, FRONT
63111-92105

BU20,22..HRF

 1
63172 - PANEL, ROOF, CENTER
63113-92105

BU20,22..HRF

 1
63172 - PANEL, ROOF, CENTER
63113-92105

BU20,22..HRF

 1
63172 - PANEL, ROOF, CENTER
63113-92105

BU20,22..HRF

 1
63173 - PANEL, ROOF, CENTER SIDE RH
63115-92105

BU20,22..HRF

 1
63174 - PANEL, ROOF, REAR
63116-92105

BU20,22..HRF

 1
63174 - PANEL, ROOF, REAR
63116-92105

BU20,22..HRF

 1
63175 - PANEL, ROOF, CENTER SIDE LH
63115-92105

BU20,22..HRF

 1
66103 - RAIL SUB-ASSY, ROOF BACK, INNER
66103-92605

BU20,22..V

 1
66103 - RAIL SUB-ASSY, ROOF BACK, INNER
66103-92605

BU20,22..V

 1
66111 - RAIL, ROOF BACK, OUTER
63106-92605

BU20,22..V

 1
66111 - RAIL, ROOF BACK, OUTER
63106-92605

BU20,22..V

 1
Common parts
91651-40614
91656-40816
93315-16014

(7708- )BU20..V ; (7708- )BU22..TR,V ; (7708- )BU20,21,23,3#,40,41..DM1,DM

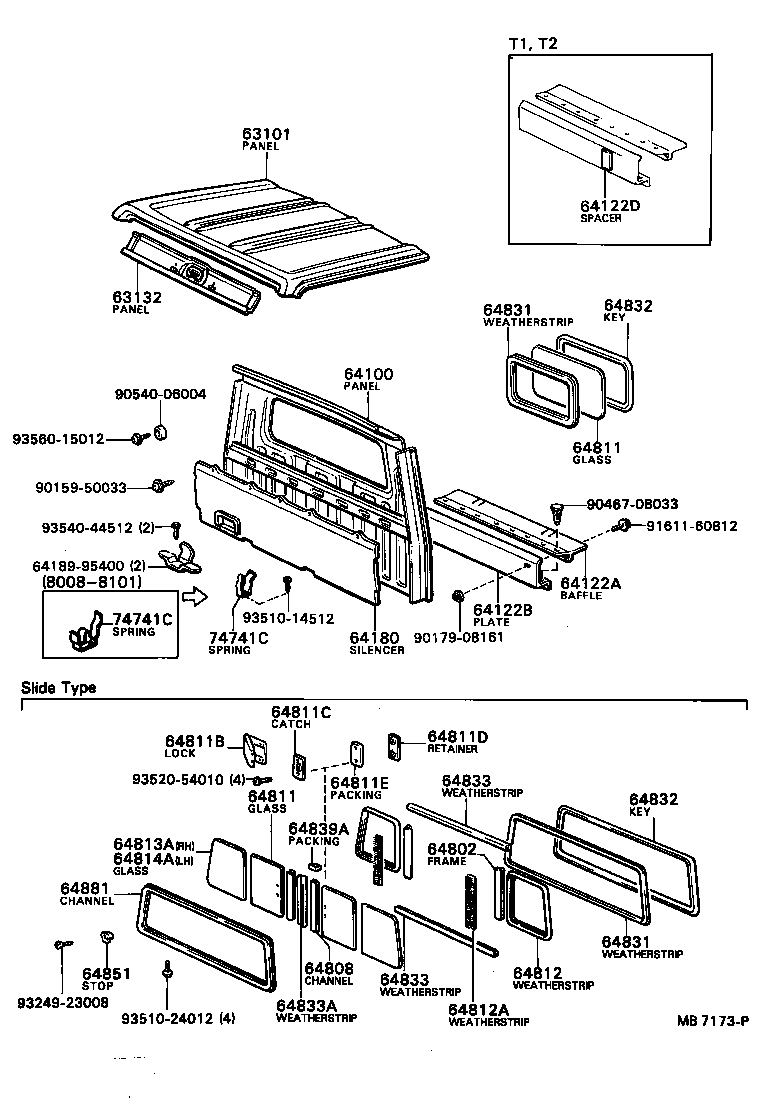

Click highlighted areas on diagram

diagram 63101 63132 64100 64122A 64122B 64122D 64180 6418995400 64802 64808 64811 64811 64811B 64811C 64811D 64811E 64812 64812A 64813A 64814A 64831 64831 64832 64832 64833 64833 64833A 64839A 64851 64881 74741C 74741C 9015950033 9017908161 9046708033 9054006004 9161160812 9324923008 9351014512 9351024012 9352054010 9354044512 9356015012
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-95406

BU22..DTP;BU20..V..06S;BU22..HRF,SRF,T1,T2,T3;BU20,21,23,25,30,31,32,34..02S,03S,09S

 1
Common parts
64189-95400
90159-50033
90179-08161
90467-08033
90540-06004
91611-60812
93249-23008
93510-14512
93510-24012
93520-54010
93540-44512
93560-15012
