BU20H-QRDHTY3 (1980)

Toyota Dyna

Production Aug 1980 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

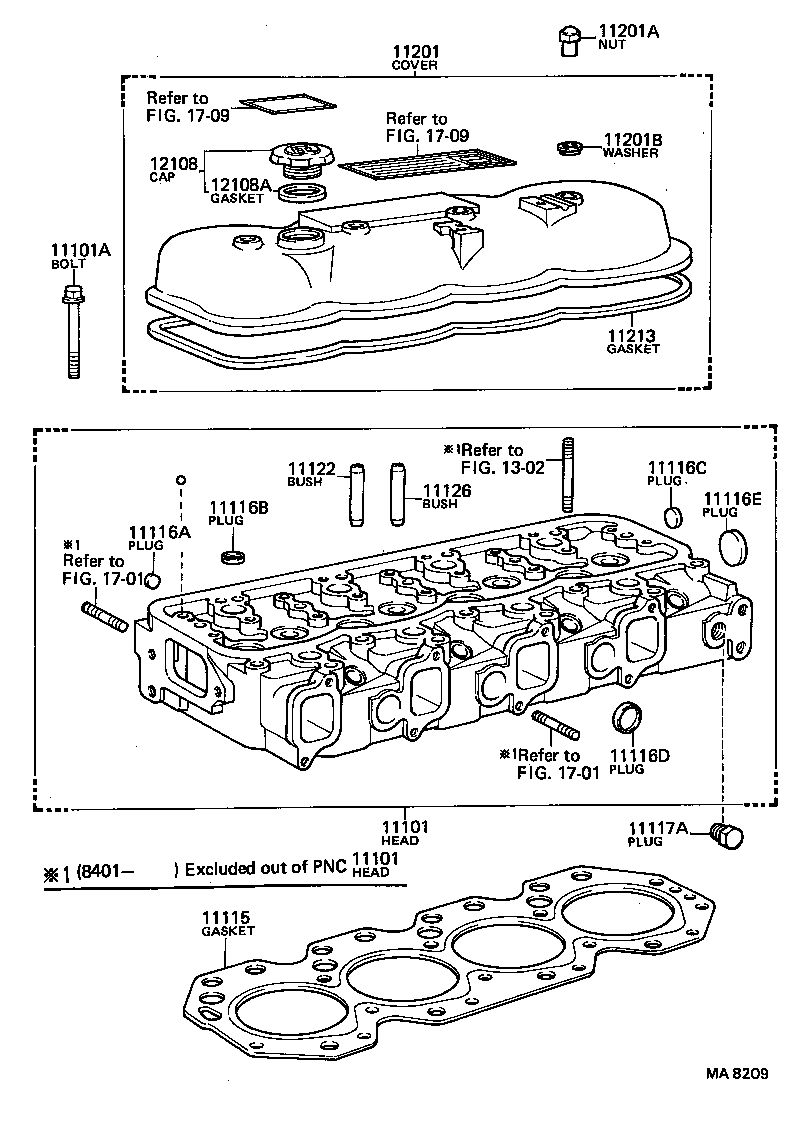

Click highlighted areas on diagram

diagram 11101 11101 11101A 11115 11116A 11116B 11116C 11116D 11116E 11117A 11122 11126 11201 11201A 11201B 11213 12108 12108A 1302 1701 1701 1709 1709
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-59105

B..BU20,30,35

 1
11101-59045

B,2B..BU2#,3#

 1
11101 - HEAD SUB-ASSY, CYLINDER
11101-59105

B..BU20,30,35

 1
11101-59045

B,2B..BU2#,3#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02046

B,2B,3B..BU2#,3#,4#,5#

*12-1.25PX119-25

 18
11115 - GASKET, CYLINDER HEAD
11115-56010

B,2B..BU2#,3#

 1
11116A - PLUG, TIGHT, NO.1
90331-11001

B,2B..BU2#,3#

OD=10.5

 4
11116B - PLUG, TIGHT, NO.2
96411-12500

B,2B,3B..BU2#,3#,4#,5#

OD=25

 4
11116C - PLUG, TIGHT, NO.3
90331-21039

B..BU2#,30

OD=21

 5
11116D - PLUG, TIGHT, NO.4
96411-12800

B,2B,3B..BU2#,3#,4#,5#

OD=28

 3
11116E - PLUG, TIGHT, NO.5
90331-40024

B,2B,3B..BU2#,3#,4#,5#

OD=40

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54021

B..BU2#,30

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-56020

B,2B,3B..BU2#,3#,4#,5#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-56020

B,2B,3B..BU2#,3#,4#,5#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-59025

B..BU2#,30

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
11295-46010

B,2B,3B..BU2#,3#,4#,5#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-12002

B,2B..BU2#,3#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-56010

B..BU2#,30

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

B,2B..BU2#,3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

B,2B,3B..BU2#,3#,4#,5#

 1
Linked diagrams
1302
1701
1709
