BU20D-QRTU3 (1977)

Toyota Dyna

Production Aug 1977 - Mar 1978
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )DM1,DM3,DM4,TB,TS

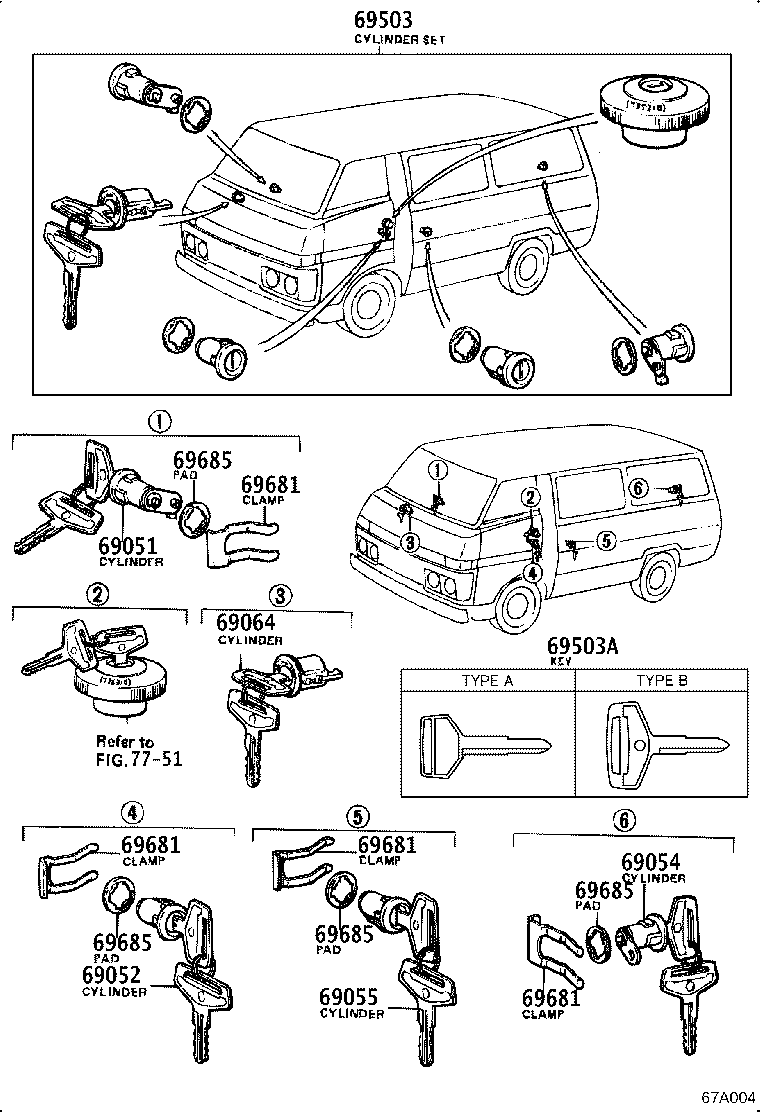

Click highlighted areas on diagram

diagram 69051 69052 69064 69503 69503A 69681 69681 69685 69685 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95401

BU2#,3#,4#,5#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95401

BU2#,3#,4#,5#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95400

BU2#,3#

 1
69503 - CYLINDER SET, LOCK
69503-92605

BU20..V

 1
69503-95401

BU25,3#;BU20..WT;BU20..DTP;BU20..TR..ST

 1
69503A - KEY, BLANK
90999-00066

BU20,21,22,23,32,33,34,37,4#,5#

ﾏｽﾀｰｷｰ,TYPE A:ｲﾗｽﾄ参照

 1
90999-00072

BU20,21,22,23,32,33,34,37,4#,5#

ﾏｽﾀｰｷｰ,IGNITION,TYPE B:ｲﾗｽﾄ参照

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BU20,22..V

RR DOOR,BACK DOOR

 2
69681-95402

BU2#,3#,4#,5#

FR DOOR

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BU20,22..V

RR DOOR,BACK DOOR

 2
69681-95402

BU2#,3#,4#,5#

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69685-95400

BU2#,3#,4#,5#

 4
69685 - PAD, LOCK CYLINDER
69685-95400

BU2#,3#,4#,5#

 4
Linked diagrams
7751

(7708- )V

Click highlighted areas on diagram

diagram 69051 69052 69054 69055 69064 69503 69503A 69681 69681 69681 69681 69685 69685 69685 69685 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95401

BU2#,3#,4#,5#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95401

BU2#,3#,4#,5#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-92605

BU20,22..V

 1
69055 - CYLINDER & KEY SET, REAR DOOR LOCK, LH
69054-95A00

BU20..V

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95400

BU2#,3#

 1
69503 - CYLINDER SET, LOCK
69503-92605

BU20..V

 1
69503-95401

BU25,3#;BU20..WT;BU20..DTP;BU20..TR..ST

 1
69503A - KEY, BLANK
90999-00066

BU20,21,22,23,32,33,34,37,4#,5#

ﾏｽﾀｰｷｰ,TYPE A:ｲﾗｽﾄ参照

 1
90999-00072

BU20,21,22,23,32,33,34,37,4#,5#

ﾏｽﾀｰｷｰ,IGNITION,TYPE B:ｲﾗｽﾄ参照

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BU20,22..V

RR DOOR,BACK DOOR

 2
69681-95402

BU2#,3#,4#,5#

FR DOOR

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BU20,22..V

RR DOOR,BACK DOOR

 2
69681-95402

BU2#,3#,4#,5#

FR DOOR

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BU20,22..V

RR DOOR,BACK DOOR

 2
69681-95402

BU2#,3#,4#,5#

FR DOOR

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BU20,22..V

RR DOOR,BACK DOOR

 2
69681-95402

BU2#,3#,4#,5#

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69685-95400

BU2#,3#,4#,5#

 4
69685 - PAD, LOCK CYLINDER
69685-95400

BU2#,3#,4#,5#

 4
69685 - PAD, LOCK CYLINDER
69685-95400

BU2#,3#,4#,5#

 4
69685 - PAD, LOCK CYLINDER
69685-95400

BU2#,3#,4#,5#

 4
Linked diagrams
7751
