BU20D-QRTU3 (1977)

Toyota Dyna

Production Aug 1977 - Mar 1978
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )L1

Click highlighted areas on diagram

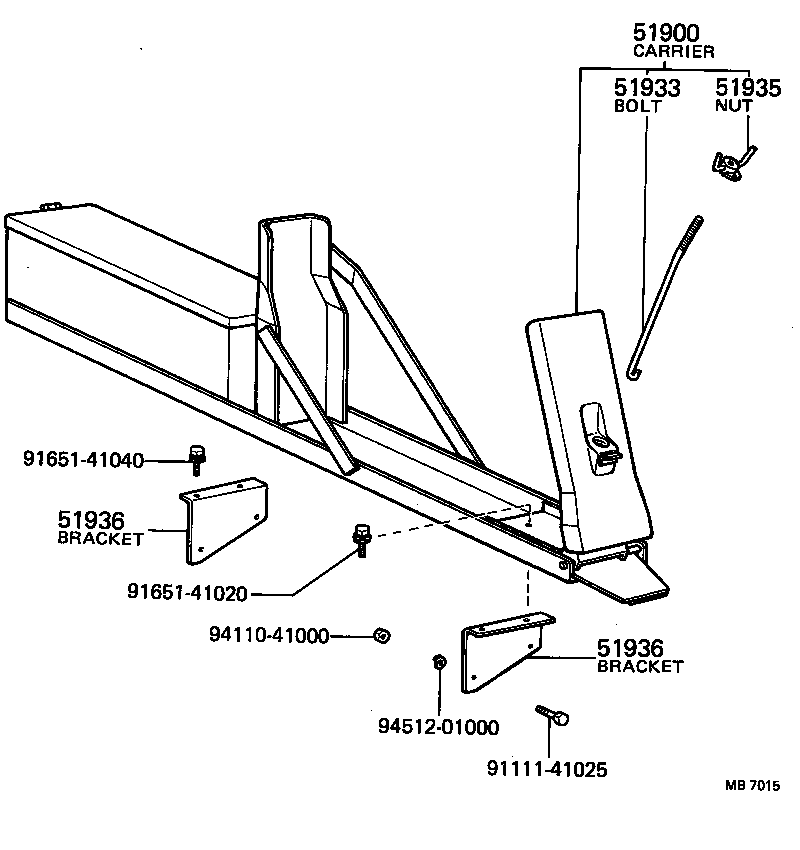

diagram 51900 51933 51935 51936 51936 9111141025 9165141020 9165141040 9411041000 9451201000
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51930-96311

BU20..L1

 1
51933 - BOLT, SPARE WHEEL CARRIER EYE
51951-96306

BU20..L1

 1
51935 - NUT, SPARE WHEEL CARRIER EYE
51903-96302

BU45,46;BU20..L1

 1
51936 - BRACKET, SPARE WHEEL CARRIER
51937-96304

BU20..L1

RH

 1
51938-96304

BU20..L1

LH

 1
51936 - BRACKET, SPARE WHEEL CARRIER
51937-96304

BU20..L1

RH

 1
51938-96304

BU20..L1

LH

 1
Common parts
91111-41025
91651-41020
91651-41040
94110-41000
94512-01000
