BU20D-QRT (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )TSK

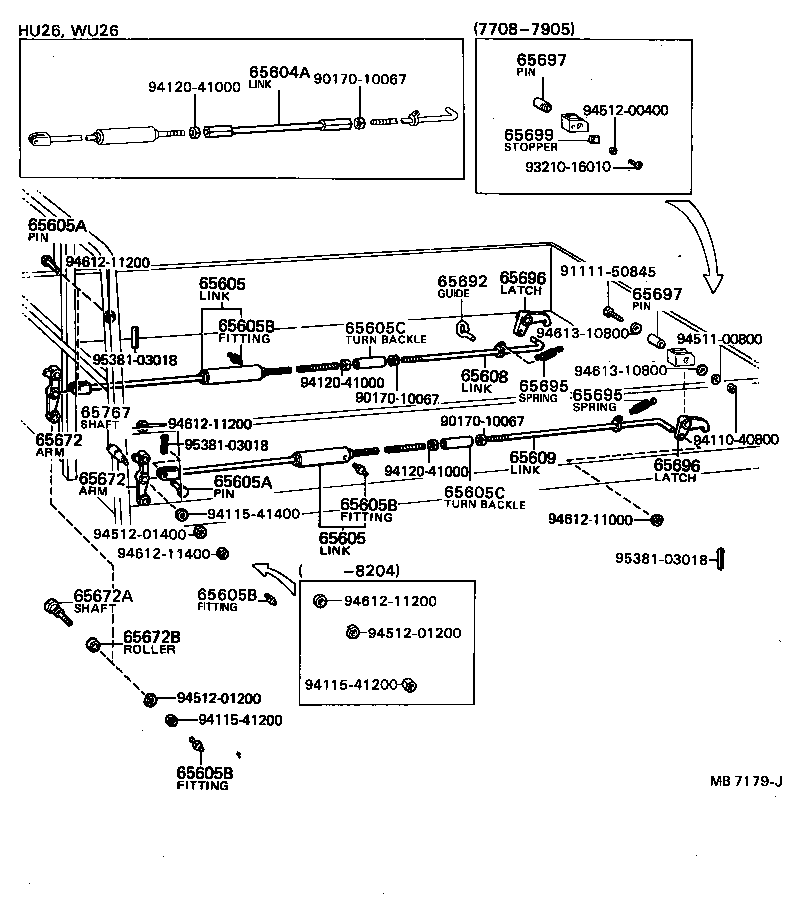

Click highlighted areas on diagram

diagram 65604A 65605 65605 65605A 65605A 65605B 65605B 65605B 65605B 65605C 65605C 65608 65609 65672 65672 65672A 65672B 65692 65695 65695 65696 65696 65697 65697 65699 65767 9017010067 9017010067 9017010067 9111150845 9321016010 9411040800 9411541200 9411541200 9411541400 9412041000 9412041000 9412041000 9451100800 9451200400 9451201200 9451201200 9451201400 9461211000 9461211200 9461211200 9461211200 9461211400 9461310800 9461310800 9538103018 9538103018 9538103018
Part # Description Qty Price
65605 - LINK SUB-ASSY, TAIL GATE LOCK
65605-96309

BU20,21,23..TSK

 2
65605 - LINK SUB-ASSY, TAIL GATE LOCK
65605-96309

BU20,21,23..TSK

 2
65605A - PIN, TAIL GATE LOCK LINK
90240-12045

BU20,21,23..TSK

 2
65605A - PIN, TAIL GATE LOCK LINK
90240-12045

BU20,21,23..TSK

 2
65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK)
96451-00600

BU20,21,23..TSK

 1
65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK)
96451-00600

BU20,21,23..TSK

 1
65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK)
96451-00600

BU20,21,23..TSK

 1
65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK)
96451-00600

BU20,21,23..TSK

 1
65605C - TURNBACKLE, TAIL GATE LOCK LINK
90587-10002

BU20,21,23..TSK

 2
65605C - TURNBACKLE, TAIL GATE LOCK LINK
90587-10002

BU20,21,23..TSK

 2
65608 - LINK SUB-ASSY, TAIL GATE LOCK, REAR RH
65608-96303

BU20,21,23..TSK

 1
65609 - LINK SUB-ASSY, TAIL GATE LOCK, REAR LH
65609-96303

BU20,21,23..TSK

 1
65672 - ARM, TAIL GATE LOCK ROLLER
65671-96302

BU20..TSK

RH

 1
65674-96302

BU20..TSK

LH

 1
65672 - ARM, TAIL GATE LOCK ROLLER
65671-96302

BU20..TSK

RH

 1
65674-96302

BU20..TSK

LH

 1
65672A - SHAFT, ROLLER
65673-96305

BU20,21,23..TSK

 2
65672B - ROLLER, TAIL GATE LOCK
65672-96301

BU20..TSK

 2
65695 - SPRING, BACK(FOR TAIL GATE LOCK LATCH)
90506-23406

BU20,21,23..TSK

 2
65695 - SPRING, BACK(FOR TAIL GATE LOCK LATCH)
90506-23406

BU20,21,23..TSK

 2
65696 - LATCH, TAIL GATE LOCK
65696-96301

BU20,21,23..TSK

 2
65696 - LATCH, TAIL GATE LOCK
65696-96301

BU20,21,23..TSK

 2
65697 - PIN, LATCH
65697-96302

BU20..TSK

 2
65697 - PIN, LATCH
65697-96302

BU20..TSK

 2
65699 - STOPPER, LATCH PIN
65699-96302

BU20..TSK

 2
65767 - SHAFT, ROLLER
65677-96303

BU20,21,23..TSK

 1
Common parts
90170-10067
91111-50845
93210-16010
94110-40800
94115-41200
94115-41400
94120-41000
94511-00800
94512-00400
94512-01200
94512-01400
94612-11000
94612-11200
94612-11400
94613-10800
95381-03018
