BU20D-QRT (1977)
Toyota Dyna
Production
Aug 1977
-
Apr 1979
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )TSK

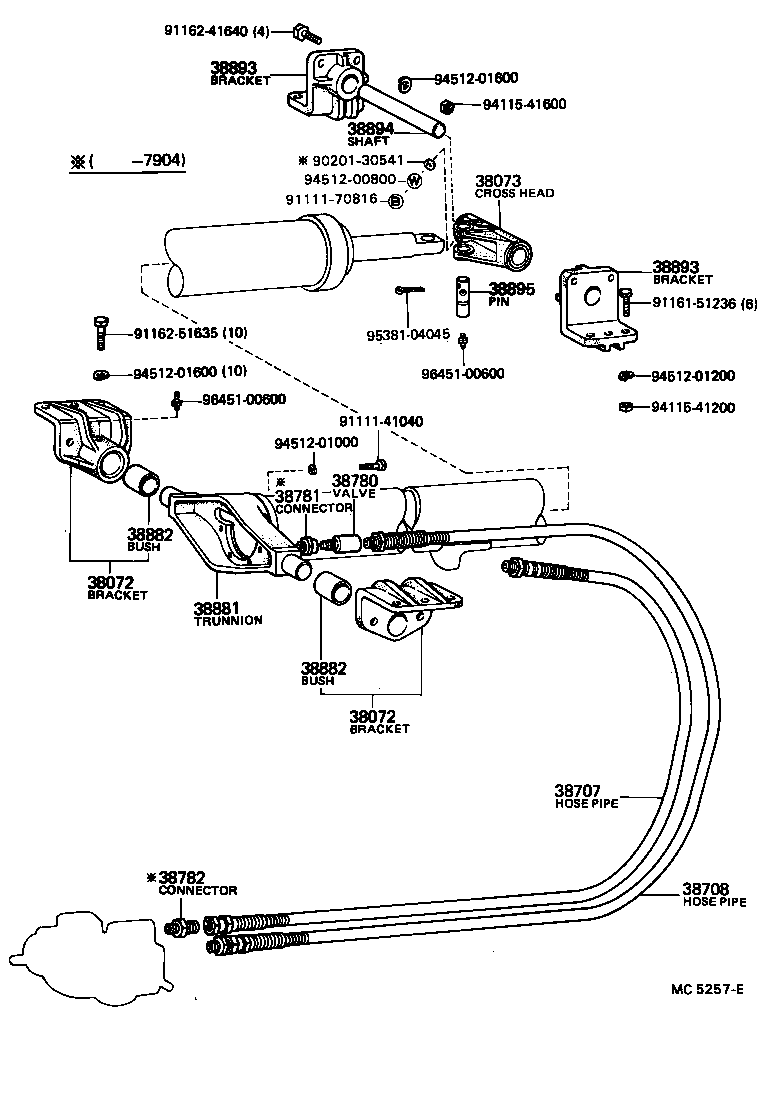

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38072 - BRACKET SUB-ASSY, TRUNNION | ||||
| 38072-96304 |
BU20..TSK |
2 | ||
| 38072 - BRACKET SUB-ASSY, TRUNNION | ||||
| 38072-96304 |
BU20..TSK |
2 | ||
| 38073 - CROSSHEAD SUB-ASSY | ||||
| 38073-96302 |
BU20,21,23..TSK |
1 | ||
| 38707 - HOSE SUB-ASSY, SUCTION | ||||
| 38707-96306 |
BU20,21,23..TSK |
1 | ||
| 38708 - HOSE SUB-ASSY, DELIVERY | ||||
| 38708-96305 |
BU20,21,23..TSK |
1 | ||
| 38780 - VALVE ASSY, SPEED CONTROL | ||||
| 38780-96301 |
BU20,21,23..TSK |
1 | ||
| 38781 - CONNECTOR (FOR HOIST CYLINDER TRUNNION) | ||||
| 38781-96302 |
BU20..TSK |
1 | ||
| 38782 - CONNECTOR (FOR HOIST CYLINDER TRUNNION) | ||||
| 38782-96301 |
BU20..TSK |
1 | ||
| 38881 - TRUNNION, HOIST CYLINDER | ||||
| 38881-96307 |
BU20,21,23..TSK |
1 | ||
| 38882 - BUSH, TRUNNION | ||||
| 38882-96304 |
BU20,21,23..TSK |
1 | ||
| 38882 - BUSH, TRUNNION | ||||
| 38882-96304 |
BU20,21,23..TSK |
1 | ||
| 38893 - BRACKET, CROSSHEAD | ||||
| 38893-96301 |
BU20..TSK |
2 | ||
| 38893 - BRACKET, CROSSHEAD | ||||
| 38893-96301 |
BU20..TSK |
2 | ||
| 38894 - SHAFT, CROSSHEAD | ||||
| 38894-96302 |
BU20,21,23..TSK |
1 | ||
| 38895 - PIN, CROSSHEAD | ||||
| 38895-96302 |
BU20..TSK |
1 | ||
| Common parts | ||||
| 90201-30541 | ||||
| 91111-41040 | ||||
| 91111-70816 | ||||
| 91161-51236 | ||||
| 91162-41640 | ||||
| 91162-51635 | ||||
| 94115-41200 | ||||
| 94115-41600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94512-01600 | ||||
| 95381-04045 | ||||
| 96451-00600 | ||||
