BU20D-QRT (1977)
Toyota Dyna
Production
Aug 1977
-
Apr 1979
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )TSK

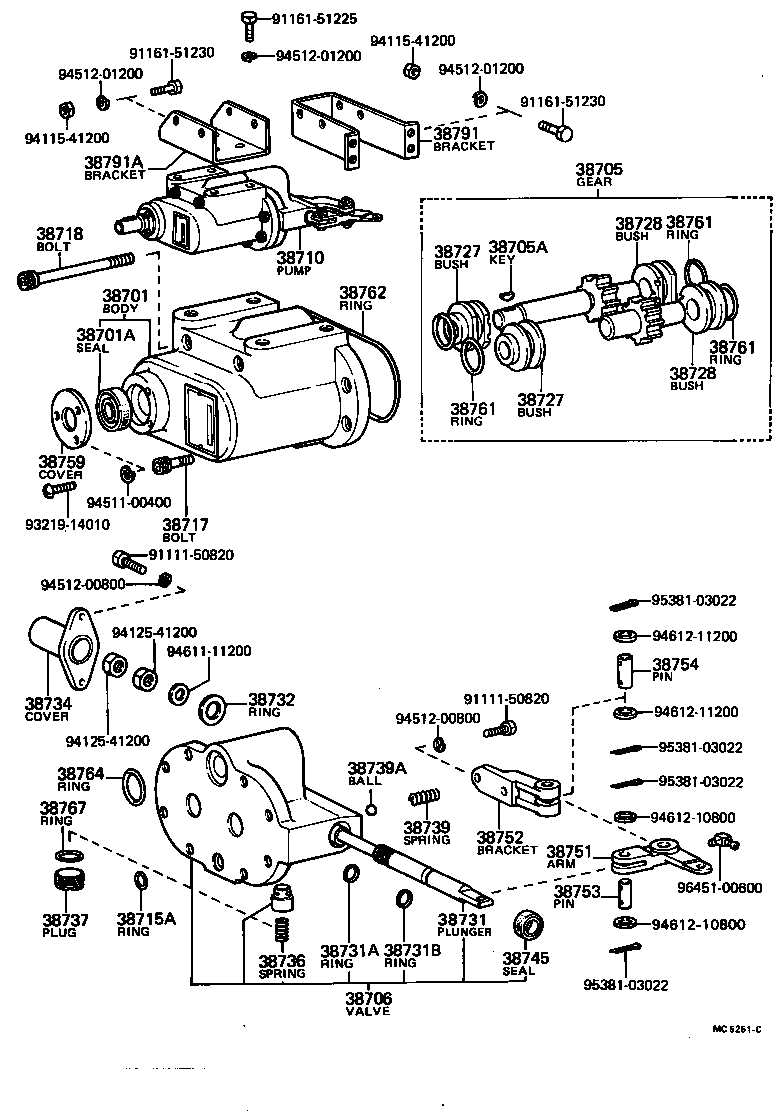

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38701 - BODY SUB-ASSY, OIL PUMP | ||||
| 38701-96303 |
BU20,21,23..TSK |
1 | ||
| 38701A - SEAL, OIL (FOR OIL PUMP BODY) | ||||
| 38758-96301 |
BU20,21,23..TSK |
1 | ||
| 38705 - GEAR SUB-ASSY, OIL PUMP | ||||
| 38705-96971 |
BU20,21,23..TSK |
1 | ||
| 38705A - KEY, PUMP SHAFT | ||||
| 38729-96302 |
BU20,21,23..TSK |
1 | ||
| 38706 - VALVE SET, OIL PUMP | ||||
| 38706-96973 |
BU20,21,23..TSK |
1 | ||
| 38710 - PUMP ASSY, OIL | ||||
| 38710-96302 |
BU20,21,23..TSK |
1 | ||
| 38715A - RING, O (FOR BALVE BODY SIDE) | ||||
| 38767-96301 |
BU20,21,23..TSK |
1 | ||
| 38717 - BOLT, COVER, SHORT | ||||
| 90110-10008 |
BU20,21,23..TSK |
6 | ||
| 38718 - BOLT, COVER, LONG | ||||
| 90110-10009 |
BU20,21,23..TSK |
2 | ||
| 38727 - BUSH, INNER (FOR OIL PUMP) | ||||
| 38727-96302 |
BU20..TSK |
2 | ||
| 38727 - BUSH, INNER (FOR OIL PUMP) | ||||
| 38727-96302 |
BU20..TSK |
2 | ||
| 38728 - BUSH, OUTER (FOR OIL PUMP) | ||||
| 38728-96302 |
BU20..TSK |
2 | ||
| 38728 - BUSH, OUTER (FOR OIL PUMP) | ||||
| 38728-96302 |
BU20..TSK |
2 | ||
| 38731 - PLUNGER (FOR OIL PUMP) | ||||
| 38731-96302 |
BU20..TSK |
1 | ||
| 38731A - RING, O (FOR PLUNGER NO.1) | ||||
| 90301-17011 |
BU20,21,23..TSK |
1 | ||
| 38731B - RING, O (FOR PLUNGER NO.2) | ||||
| 38767-96301 |
BU20,21,23..TSK |
1 | ||
| 38732 - RING, BACK UP | ||||
| 90562-18120 |
BU20,21,23..TSK |
1 | ||
| 38734 - COVER, PLUNGER | ||||
| 38703-96301 |
BU20,21,23..TSK |
1 | ||
| 38736 - SPRING, CHECK VALVE | ||||
| 38736-96303 |
BU20,21,23..TSK |
1 | ||
| 38737 - PLUG, CHECK VALVE | ||||
| 90340-28006 |
BU20,21,23..TSK |
1 | ||
| 38739 - SPRING, PLUNGER NEUTRAL INDICATING BALL | ||||
| 38739-96301 |
BU20,21,23..TSK |
1 | ||
| 38739A - BALL, PLUNGER NEUTRAL INDICATING | ||||
| 90360-06004 |
BU20,21,23..TSK |
1 | ||
| 38745 - SEAL, OIL (FOR PUMP CONTROL VALVE PLUNGER) | ||||
| 38745-96301 |
BU20,21,23..TSK |
1 | ||
| 38751 - ARM, CONTROL | ||||
| 38751-96301 |
BU20..TSK |
1 | ||
| 38752 - BRACKET, CONTROL ARM | ||||
| 38752-96302 |
BU20,21,23..TSK |
1 | ||
| 38753 - PIN, CONTROL ARM | ||||
| 90255-10009 |
BU20..TSK |
1 | ||
| 38754 - PIN, CONTROL ARM BRACKET | ||||
| 38754-96302 |
BU20,21,23..TSK |
1 | ||
| 38759 - COVER, SEAL (FOR OIL PUMP BODY) | ||||
| 38759-96301 |
BU20,21,23..TSK |
1 | ||
| 38761 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 38761-96302 |
BU20..TSK |
4 | ||
| 38761 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 38761-96302 |
BU20..TSK |
4 | ||
| 38761 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 38761-96302 |
BU20..TSK |
4 | ||
| 38762 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 38762-96301 |
BU20..TSK |
1 | ||
| 38764 - RING, O (FOR OIL PUMP VALVE SET) | ||||
| 38764-96301 |
BU20,21,23..TSK |
1 | ||
| 38767 - RING, O (FOR CHECK VALVE SPRING) | ||||
| 38768-96301 |
BU20..TSK |
1 | ||
| 38791 - BRACKET, OIL PUMP | ||||
| 38791-96306 |
BU20,21,23..TSK |
1 | ||
| 38791A - BRACKET, OIL PUMP, NO.2 | ||||
| 38792-96304 |
BU20,21,23..TSK |
1 | ||
| Common parts | ||||
| 91111-50820 | ||||
| 91161-51225 | ||||
| 91161-51230 | ||||
| 93219-14010 | ||||
| 94115-41200 | ||||
| 94125-41200 | ||||
| 94511-00400 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 94611-11200 | ||||
| 94612-10800 | ||||
| 94612-11200 | ||||
| 95381-03022 | ||||
| 96451-00600 | ||||
