BU20D-QRT (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

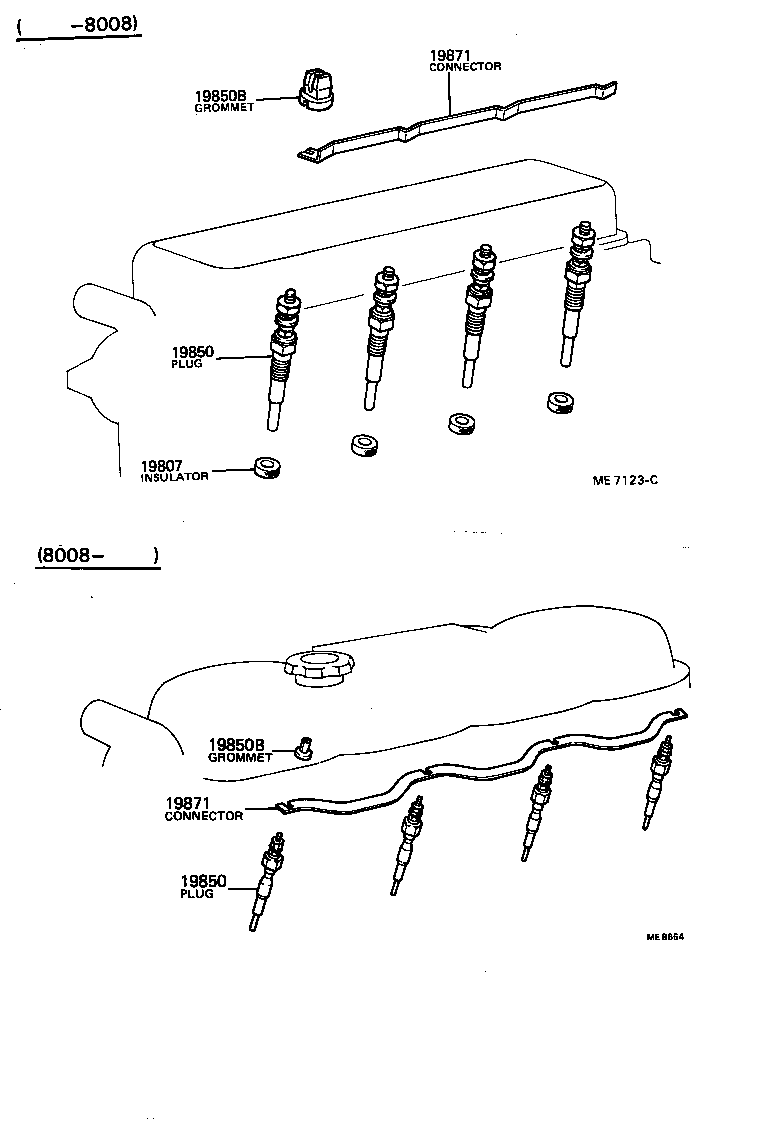

Click highlighted areas on diagram

ME7123C,MEB654

diagram 19807 19850 19850 19850B 19850B 19871 19871
Part # Description Qty Price
19807 - INSULATOR SUB-ASSY, GLOW PLUG, NO.1
19877-56010

B,2B..BU2#,3#

 4
19850 - PLUG ASSY, GLOW
19850-56012

B,2B..BU2#,3#

*24V-20.5V

 4
19850 - PLUG ASSY, GLOW
19850-56012

B,2B..BU2#,3#

*24V-20.5V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-06004

B..BU2#,30

 5
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-06004

B..BU2#,30

 5
19871 - CONNECTOR, GLOW PLUG NO.1
19871-56010

B,2B..BU2#,3#

 1
19871 - CONNECTOR, GLOW PLUG NO.1
19871-56010

B,2B..BU2#,3#

 1
