BU20D-QRMTY3 (1979)

Toyota Dyna

Production Apr 1979 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

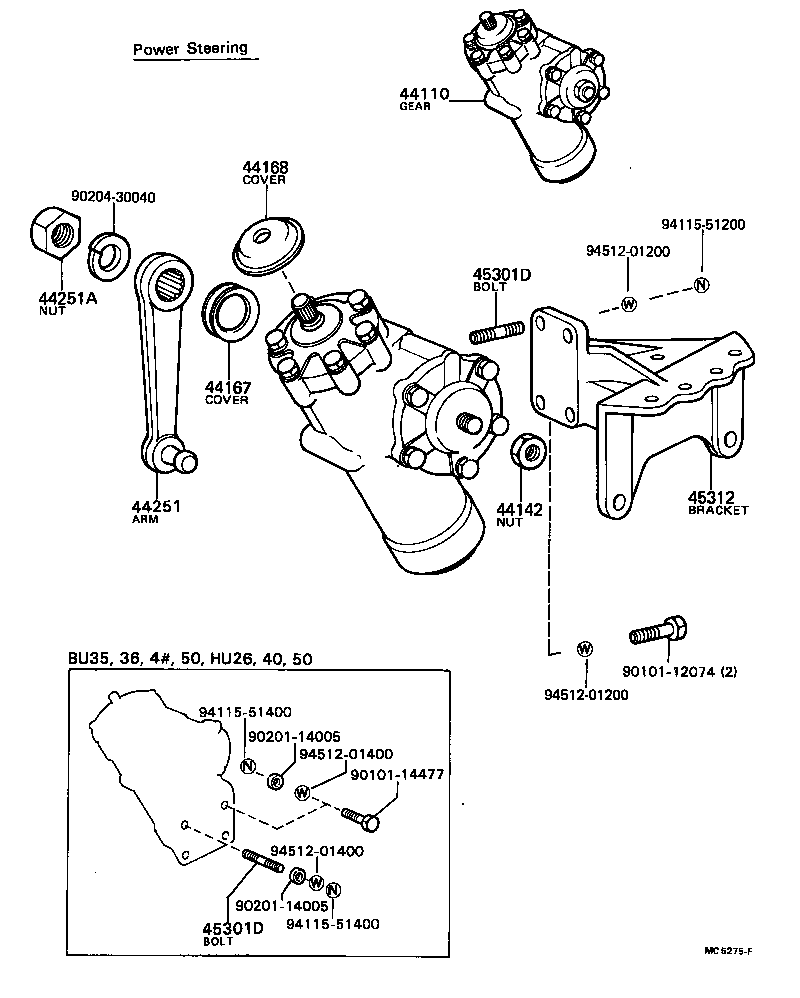

ILLUST NO. 2 OF 3(7908-8008)BU3#..03S..25T,275,30T ; (7912-8008)CTP ; (7912-8008)BU20..275 ; (8008-8

Click highlighted areas on diagram

diagram 44110 44142 44167 44168 44251 44251A 45301D 45301D 45312 9010112074 9010114477 9020114005 9020114005 9020430040 9411551200 9411551400 9411551400 9451201200 9451201200 9451201400 9451201400
Part # Description Qty Price
44251 - ARM, PITMAN
45401-36160

BU20,30..(DM3,TB,TS)..(20T,275)

W/POWER STEERING

 1
45401-36160

BU20,30..(DM3,TB,TS)..(20T,275)

W/POWER STEERING

 1
45301D - BOLT, STUD(FOR STEERING GEAR HOUSING)
90116-12256

BU20..H50..(20T,275)

 2
90116-12256

BU20..H50..(20T,275)

 2
90116-12256

BU2#,30..H50

 2
90116-12256

BU2#,30..H50

 2
45301D - BOLT, STUD(FOR STEERING GEAR HOUSING)
90116-12256

BU20..H50..(20T,275)

 2
90116-12256

BU20..H50..(20T,275)

 2
90116-12256

BU2#,30..H50

 2
90116-12256

BU2#,30..H50

 2
45312 - BRACKET, STEERING GEAR HOUSING
45312-36160

BU2#,30..H50

 1
45312-36160

BU2#,30..H50

 1
45312-36160

BU20..H50..(20T,275)

 1
45312-36160

BU20..H50..(20T,275)

 1
Common parts
90101-12074
90101-14477
90201-14005
90204-30040
94115-51200
94115-51400
94512-01200
94512-01400

ILLUST NO. 2 OF 3(8008-8204)BU20,30..TR..20T,275 ; (8008- )BU35,36,37,4#,5#

Click highlighted areas on diagram

diagram 44110 44142 44167 44168 44251 44251A 45301D 45301D 45312 9010112074 9010114477 9020114005 9020114005 9020430040 9411551200 9411551400 9411551400 9451201200 9451201200 9451201400 9451201400
Part # Description Qty Price
44251 - ARM, PITMAN
45401-36160

BU20,30..(DM3,TB,TS)..(20T,275)

W/POWER STEERING

 1
45401-36160

BU20,30..(DM3,TB,TS)..(20T,275)

W/POWER STEERING

 1
45301D - BOLT, STUD(FOR STEERING GEAR HOUSING)
90116-12256

BU20..H50..(20T,275)

 2
90116-12256

BU20..H50..(20T,275)

 2
90116-12256

BU2#,30..H50

 2
90116-12256

BU2#,30..H50

 2
45301D - BOLT, STUD(FOR STEERING GEAR HOUSING)
90116-12256

BU20..H50..(20T,275)

 2
90116-12256

BU20..H50..(20T,275)

 2
90116-12256

BU2#,30..H50

 2
90116-12256

BU2#,30..H50

 2
45312 - BRACKET, STEERING GEAR HOUSING
45312-36160

BU2#,30..H50

 1
45312-36160

BU2#,30..H50

 1
45312-36160

BU20..H50..(20T,275)

 1
45312-36160

BU20..H50..(20T,275)

 1
Common parts
90101-12074
90101-14477
90201-14005
90204-30040
94115-51200
94115-51400
94512-01200
94512-01400
