BU20D-QRMTY (1979)
Toyota Dyna
Production
Apr 1979
-
Apr 1982
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )BU35,36,37,4#,5#

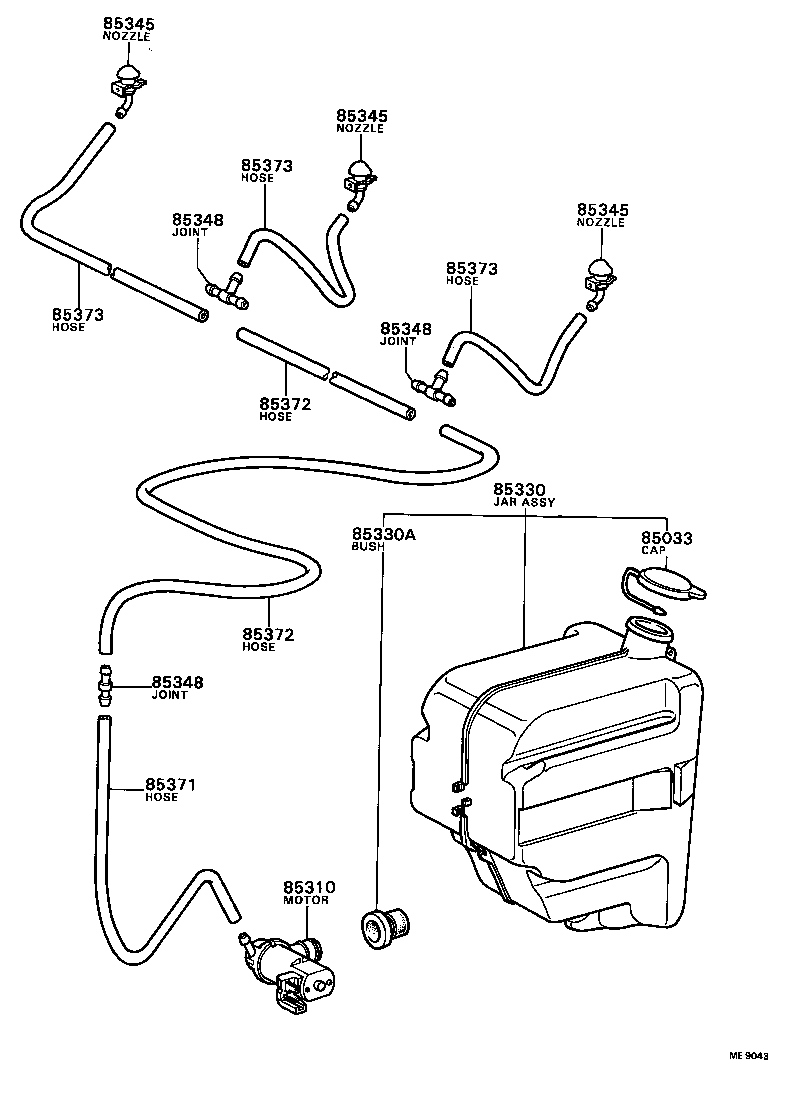

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85033-36120 |
BU2#,3#,4#,5# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-25010 |
BU2#,3#,4#,5# 24V |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-25040 |
BU2#,3#,4#,5# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
BU2#,3#,4#,5# |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-95400 |
BU2#,3# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-95400 |
BU2#,3# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-95400 |
BU2#,3# |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12011 |
BU2#,3#,4#,5# 3 WAY |
2 | ||
| 85355-87201 |
BU2#,3#,4#,5# 2 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12011 |
BU2#,3#,4#,5# 3 WAY |
2 | ||
| 85355-87201 |
BU2#,3#,4#,5# 2 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12011 |
BU2#,3#,4#,5# 3 WAY |
2 | ||
| 85355-87201 |
BU2#,3#,4#,5# 2 WAY |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33316 |
BU2#,3# *H,L=200 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33314 |
BU2#,30 *H,L=140 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33314 |
BU2#,30 *H,L=140 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33320 |
BU2#,3# *H,L=800 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33320 |
BU2#,3# *H,L=800 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33320 |
BU2#,3# *H,L=800 |
2 | ||
