BU20D-QRMTUY (1979)

Toyota Dyna

Production Apr 1979 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

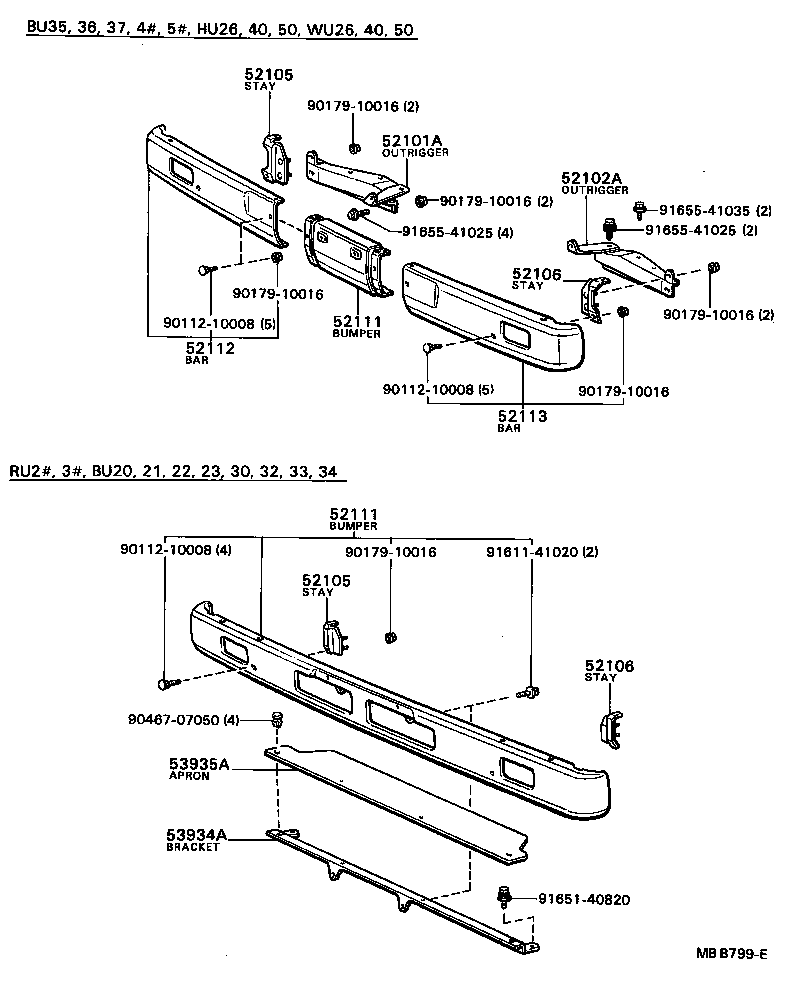

Click highlighted areas on diagram

diagram 52105 52106 52111 53934A 53935A 9011210046 9017910016 9046707050 9161141020 9165140820 9411041000 9451101000 9461111001
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52115-95402

BU2#,3#,4#,5#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52116-95402

BU2#,3#,4#,5#

 1
52111 - BUMPER ASSY, FRONT
52111-95490

BU2#,3#

 1
53934A - BRACKET, APRON GRILLE, LOWER
53934-95400

BU2#,30,31,32,33,34

 1
53935A - APRON, GRILLE LOWER
53935-95400

BU2#,30,31,32,33,34

 1
Common parts
90112-10046
90179-10016
90467-07050
91611-41020
91651-40820
94110-41000
94511-01000
94611-11001

(8008- )

Click highlighted areas on diagram

diagram 52101A 52102A 52105 52105 52106 52106 52111 52111 52112 52113 53934A 53935A 9011210008 9011210008 9011210008 9017910016 9017910016 9017910016 9017910016 9017910016 9017910016 9046707050 9161141020 9165140820 9165541025 9165541025 9165541035
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52115-95402

BU2#,3#,4#,5#

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52115-95402

BU2#,3#,4#,5#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52116-95402

BU2#,3#,4#,5#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52116-95402

BU2#,3#,4#,5#

 1
52111 - BUMPER ASSY, FRONT
52111-95490

BU2#,3#

 1
52111 - BUMPER ASSY, FRONT
52111-95490

BU2#,3#

 1
53934A - BRACKET, APRON GRILLE, LOWER
53934-95400

BU2#,30,31,32,33,34

 1
53935A - APRON, GRILLE LOWER
53935-95400

BU2#,30,31,32,33,34

 1
Common parts
90112-10008
90179-10016
90467-07050
91611-41020
91651-40820
91655-41025
91655-41035
