BU20D-QRMTUMY (1979)
Toyota Dyna

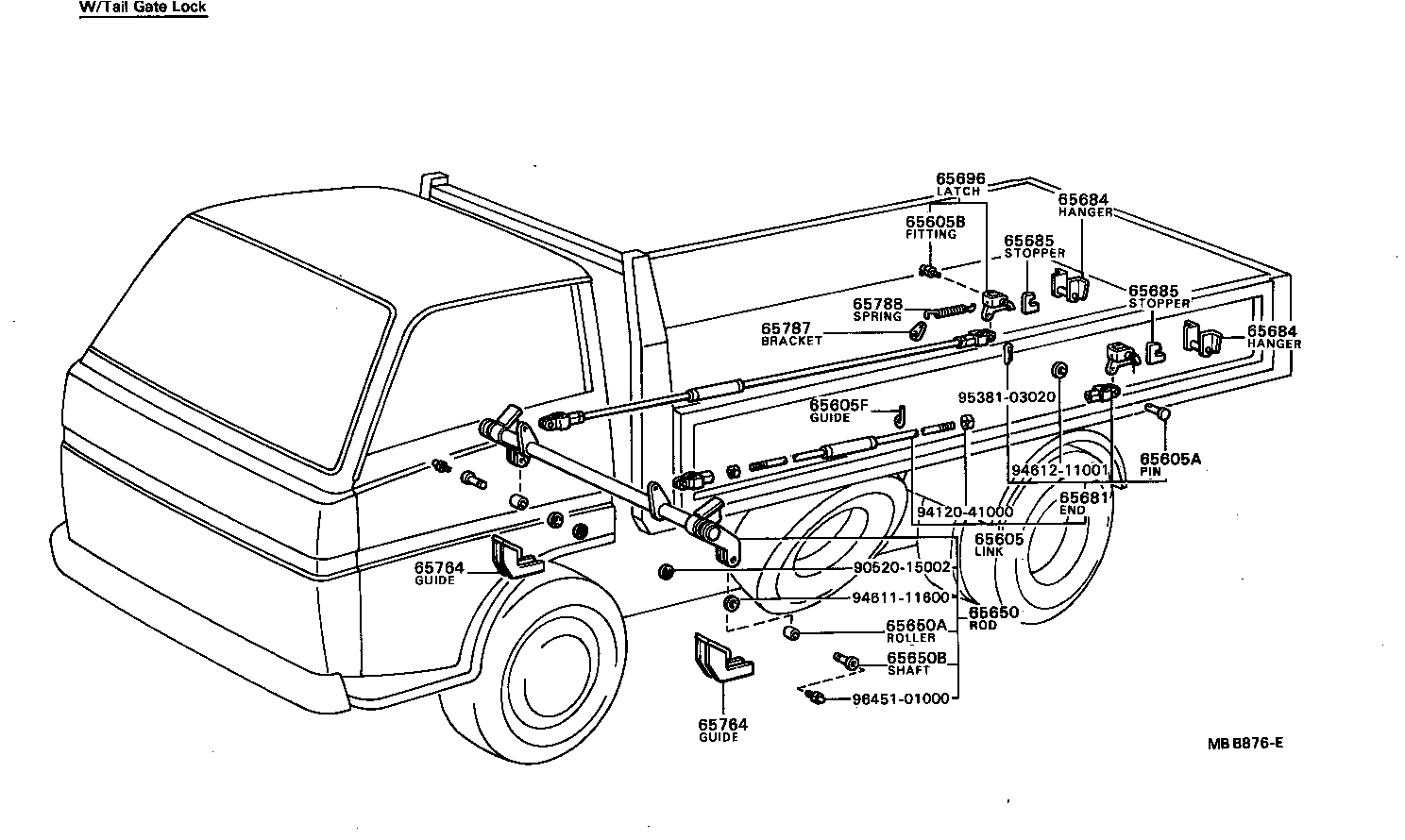

ILLUST NO. 1 OF 3(7708- )DM1,DM4..KKT ; (7904-8008)DM3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65305 - LOCK SUB-ASSY, BEZEL, RH | ||||
| 65305-93300 |
BU20..DM3 |
1 | ||
| 65305 - LOCK SUB-ASSY, BEZEL, RH | ||||
| 65305-93300 |
BU20..DM3 |
1 | ||
| 65305 - LOCK SUB-ASSY, BEZEL, RH | ||||
| 65305-93300 |
BU20..DM3 |
1 | ||
| 65305A - BRACKET, U BOLT SUPPORT, RH | ||||
| 65315-93300 |
BU20..DM3 |
1 | ||
| 65306 - LOCK SUB-ASSY, BEZEL, LH | ||||
| 65306-93300 |
BU20..DM3 |
1 | ||
| 65306 - LOCK SUB-ASSY, BEZEL, LH | ||||
| 65306-93300 |
BU20..DM3 |
1 | ||
| 65306 - LOCK SUB-ASSY, BEZEL, LH | ||||
| 65306-93300 |
BU20..DM3 |
1 | ||
| 65306A - BRACKET, U BOLT SUPPORT, LH | ||||
| 65316-93300 |
BU20..DM3 |
1 | ||
| 65605 - LINK SUB-ASSY, TAIL GATE LOCK | ||||
| 65606-93300 |
BU20..DM3 |
2 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-10006 |
BU20..20T..KKT |
6 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-10006 |
BU20..20T..KKT |
6 | ||
| 65605D - SPRING, TENSION(FOR TAIL GATE LOCK LINK SETTING) | ||||
| 90506-20003 |
BU20..20T..KKT |
4 | ||
| 65605E - PIN, W/HOLE(FOR TAIL GATE LOCK LINK SETTING) | ||||
| 90240-10004 |
BU20..DM3 |
2 | ||
| 65660 - GUIDE, ROLLER, RH | ||||
| 65661-93300 |
BU20..DM3 |
1 | ||
| 65670 - GUIDE, ROLLER, LH | ||||
| 65662-93300 |
BU20..DM3 |
1 | ||
| 65672 - ARM, TAIL GATE LOCK ROLLER | ||||
| 65666-93300 |
BU20..DM3 |
2 | ||
| 65672C - RING, SNAP(FOR ROLLER ARM SETTING) | ||||
| 96150-01600 |
BU20..KKT |
2 | ||
| 65681 - END, TAIL GATE LOCK LINK | ||||
| 65680-93300 |
BU20..DM3 |
4 | ||
| 65681-93102 |
BU20..20T..KKT |
4 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65685 - STOPPER, TAIL GATE HANGER | ||||
| 65699-93102 |
BU20..KKT |
2 | ||
| 65696 - LATCH, TAIL GATE LOCK | ||||
| 65695-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT RH |
2 | ||
| 65694-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT LH |
2 | ||
| Common parts | ||||
| 90117-12016 | ||||
| 91111-41025 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94511-01000 | ||||
| 94611-11600 | ||||
| 94612-11001 | ||||
| 95381-02520 | ||||
| 95381-03020 | ||||
| 96451-01000 | ||||
| Linked diagrams | ||||
| 6556 | ||||

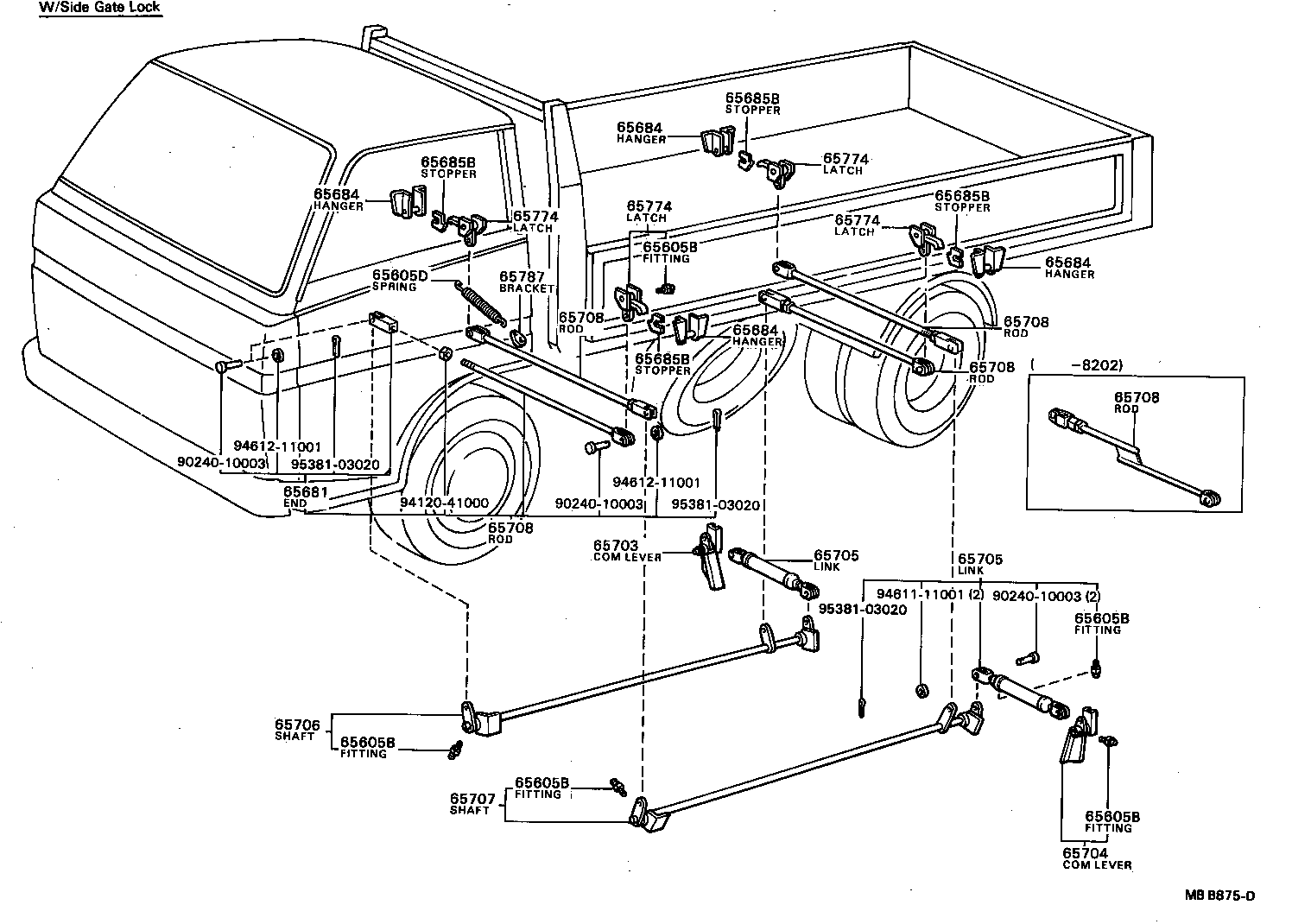

ILLUST NO. 2 OF 3(7904-8008)DM3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65605 - LINK SUB-ASSY, TAIL GATE LOCK | ||||
| 65606-93300 |
BU20..DM3 |
2 | ||
| 65605 - LINK SUB-ASSY, TAIL GATE LOCK | ||||
| 65606-93300 |
BU20..DM3 |
2 | ||
| 65605 - LINK SUB-ASSY, TAIL GATE LOCK | ||||
| 65606-93300 |
BU20..DM3 |
2 | ||
| 65605 - LINK SUB-ASSY, TAIL GATE LOCK | ||||
| 65606-93300 |
BU20..DM3 |
2 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-10006 |
BU20..20T..KKT |
6 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-10006 |
BU20..20T..KKT |
6 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-10006 |
BU20..20T..KKT |
6 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-10006 |
BU20..20T..KKT |
6 | ||
| 65630 - LEVER ASSY, REAR BODY DECK HINGE PIN CONTROL, RH | ||||
| 65630-93300 |
BU20..DM3 |
1 | ||
| 65640 - LEVER ASSY, REAR BODY DECK HINGE PIN CONTROL, LH | ||||
| 65640-93300 |
BU20..DM3 |
1 | ||
| 65641 - BRACKET, TORQUE SHAFT SUPPORT | ||||
| 65631-93300 |
BU20..DM3 INNER RH |
1 | ||
| 65663-93300 |
BU20..DM3 OUTER |
2 | ||
| 65641-93300 |
BU20..DM3 INNER LH |
1 | ||
| 65641 - BRACKET, TORQUE SHAFT SUPPORT | ||||
| 65631-93300 |
BU20..DM3 INNER RH |
1 | ||
| 65663-93300 |
BU20..DM3 OUTER |
2 | ||
| 65641-93300 |
BU20..DM3 INNER LH |
1 | ||
| 65641 - BRACKET, TORQUE SHAFT SUPPORT | ||||
| 65631-93300 |
BU20..DM3 INNER RH |
1 | ||
| 65663-93300 |
BU20..DM3 OUTER |
2 | ||
| 65641-93300 |
BU20..DM3 INNER LH |
1 | ||
| 65641 - BRACKET, TORQUE SHAFT SUPPORT | ||||
| 65631-93300 |
BU20..DM3 INNER RH |
1 | ||
| 65663-93300 |
BU20..DM3 OUTER |
2 | ||
| 65641-93300 |
BU20..DM3 INNER LH |
1 | ||
| 65650 - ROD ASSY, HINGE PIN CONTROL | ||||
| 65650-93300 |
BU20..DM3 |
1 | ||
| 65660 - GUIDE, ROLLER, RH | ||||
| 65661-93300 |
BU20..DM3 |
1 | ||
| 65670 - GUIDE, ROLLER, LH | ||||
| 65662-93300 |
BU20..DM3 |
1 | ||
| 65672 - ARM, TAIL GATE LOCK ROLLER | ||||
| 65666-93300 |
BU20..DM3 |
2 | ||
| 65672 - ARM, TAIL GATE LOCK ROLLER | ||||
| 65666-93300 |
BU20..DM3 |
2 | ||
| 65672A - SHAFT, ROLLER | ||||
| 65664-93300 |
BU20..DM3 |
1 | ||
| 65681 - END, TAIL GATE LOCK LINK | ||||
| 65680-93300 |
BU20..DM3 |
4 | ||
| 65681-93102 |
BU20..20T..KKT |
4 | ||
| 65681 - END, TAIL GATE LOCK LINK | ||||
| 65680-93300 |
BU20..DM3 |
4 | ||
| 65681-93102 |
BU20..20T..KKT |
4 | ||
| 65681 - END, TAIL GATE LOCK LINK | ||||
| 65680-93300 |
BU20..DM3 |
4 | ||
| 65681-93102 |
BU20..20T..KKT |
4 | ||
| 65681 - END, TAIL GATE LOCK LINK | ||||
| 65680-93300 |
BU20..DM3 |
4 | ||
| 65681-93102 |
BU20..20T..KKT |
4 | ||
| 65681A - END, TAIL GATE LOCK LINK | ||||
| 65681-93300 |
BU20..DM3 |
2 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65685 - STOPPER, TAIL GATE HANGER | ||||
| 65699-93102 |
BU20..KKT |
2 | ||
| 65685 - STOPPER, TAIL GATE HANGER | ||||
| 65699-93102 |
BU20..KKT |
2 | ||
| 65696 - LATCH, TAIL GATE LOCK | ||||
| 65695-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT RH |
2 | ||
| 65694-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT LH |
2 | ||
| 65696 - LATCH, TAIL GATE LOCK | ||||
| 65695-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT RH |
2 | ||
| 65694-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT LH |
2 | ||
| 65790 - ARM SUB-ASSY, ROLLER | ||||
| 65660-93300 |
BU20..DM3 |
2 | ||
| 65790 - ARM SUB-ASSY, ROLLER | ||||
| 65660-93300 |
BU20..DM3 |
2 | ||
| Common parts | ||||
| 90240-10004 | ||||
| 90468-18003 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 95381-02520 | ||||

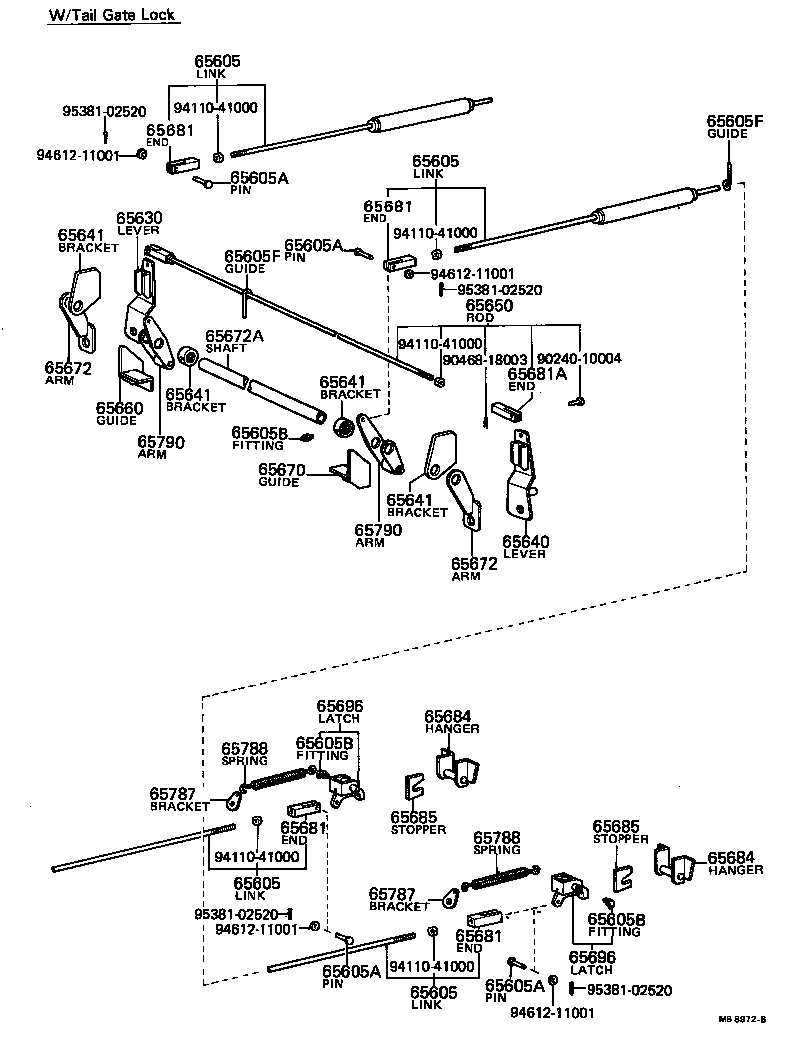

ILLUST NO. 3 OF 3(7904- )DM3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65605D - SPRING, TENSION(FOR TAIL GATE LOCK LINK SETTING) | ||||
| 90506-20003 |
BU20..20T..KKT |
4 | ||
| 65681 - END, TAIL GATE LOCK LINK | ||||
| 65680-93300 |
BU20..DM3 |
4 | ||
| 65681-93102 |
BU20..20T..KKT |
4 | ||
| 65681A - END, TAIL GATE LOCK LINK | ||||
| 65681-93300 |
BU20..DM3 |
2 | ||
| 65681A - END, TAIL GATE LOCK LINK | ||||
| 65681-93300 |
BU20..DM3 |
2 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65685B - STOPPER, SIDE GATE HANGER | ||||
| 65799-93300 |
BU20..DM3 |
4 | ||
| 65685B - STOPPER, SIDE GATE HANGER | ||||
| 65799-93300 |
BU20..DM3 |
4 | ||
| 65696 - LATCH, TAIL GATE LOCK | ||||
| 65695-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT RH |
2 | ||
| 65694-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT LH |
2 | ||
| 65696 - LATCH, TAIL GATE LOCK | ||||
| 65695-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT RH |
2 | ||
| 65694-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT LH |
2 | ||
| 65703 - COM LEVER ASSY, SIDE GATE AUTO LOCK MECHANISM, RH | ||||
| 65703-93300 |
BU20..DM3 |
1 | ||
| 65704 - COM LEVER ASSY, SIDE GATE AUTO LOCK MECHANISM, LH | ||||
| 65704-93300 |
BU20..DM3 |
1 | ||
| 65705 - LINK SUB-ASSY, SIDE GATE LOCK | ||||
| 65705-93300 |
BU20..DM3 |
2 | ||
| 65705 - LINK SUB-ASSY, SIDE GATE LOCK | ||||
| 65705-93300 |
BU20..DM3 |
2 | ||
| 65706 - SHAFT ASSY, SIDE GATE LINK CONTROL, RH | ||||
| 65706-93300 |
BU20..DM3 |
1 | ||
| 65707 - SHAFT ASSY, SIDE GATE LINK CONTROL, LH | ||||
| 65707-93300 |
BU20..DM3 |
1 | ||
| 65708 - ROD ASSY, SIDE GATE ROD CONTROL | ||||
| 65708-93300 |
BU20..DM3 |
4 | ||
| 65708-93301 |
BU20..DM3 |
4 | ||
| 65708 - ROD ASSY, SIDE GATE ROD CONTROL | ||||
| 65708-93300 |
BU20..DM3 |
4 | ||
| 65708-93301 |
BU20..DM3 |
4 | ||
| 65708 - ROD ASSY, SIDE GATE ROD CONTROL | ||||
| 65708-93300 |
BU20..DM3 |
4 | ||
| 65708-93301 |
BU20..DM3 |
4 | ||
| 65708 - ROD ASSY, SIDE GATE ROD CONTROL | ||||
| 65708-93300 |
BU20..DM3 |
4 | ||
| 65708-93301 |
BU20..DM3 |
4 | ||
| 65764 - None | ||||
| 65764-93300 |
BU20..DM3 |
2 | ||
| 65764 - None | ||||
| 65764-93300 |
BU20..DM3 |
2 | ||
| Common parts | ||||
| 90240-10004 | ||||
| 90240-10006 | ||||
| 94115-41200 | ||||
| 94612-11001 | ||||
| 95381-02520 | ||||

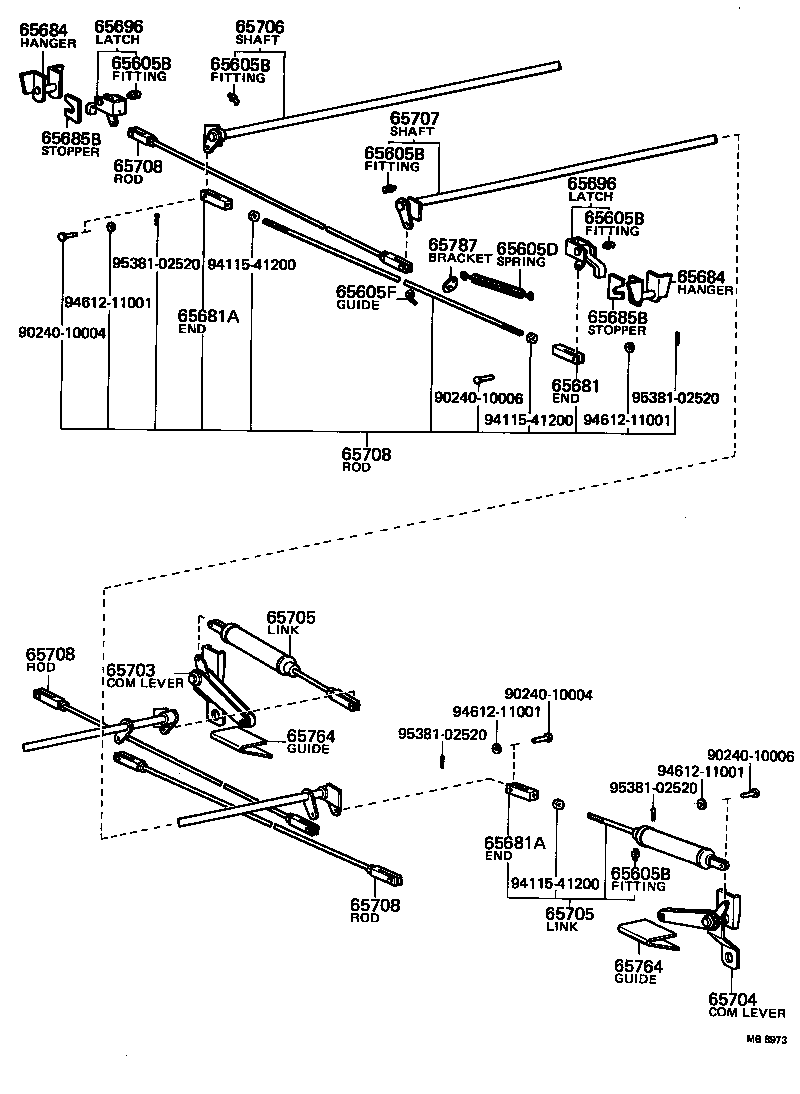

ILLUST NO. 1 OF 2(8008- )DM3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65605D - SPRING, TENSION(FOR TAIL GATE LOCK LINK SETTING) | ||||
| 90506-20003 |
BU20..20T..KKT |
4 | ||
| 65681 - END, TAIL GATE LOCK LINK | ||||
| 65680-93300 |
BU20..DM3 |
4 | ||
| 65681-93102 |
BU20..20T..KKT |
4 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65685B - STOPPER, SIDE GATE HANGER | ||||
| 65799-93300 |
BU20..DM3 |
4 | ||
| 65685B - STOPPER, SIDE GATE HANGER | ||||
| 65799-93300 |
BU20..DM3 |
4 | ||
| 65685B - STOPPER, SIDE GATE HANGER | ||||
| 65799-93300 |
BU20..DM3 |
4 | ||
| 65685B - STOPPER, SIDE GATE HANGER | ||||
| 65799-93300 |
BU20..DM3 |
4 | ||
| 65703 - COM LEVER ASSY, SIDE GATE AUTO LOCK MECHANISM, RH | ||||
| 65703-93300 |
BU20..DM3 |
1 | ||
| 65704 - COM LEVER ASSY, SIDE GATE AUTO LOCK MECHANISM, LH | ||||
| 65704-93300 |
BU20..DM3 |
1 | ||
| 65705 - LINK SUB-ASSY, SIDE GATE LOCK | ||||
| 65705-93300 |
BU20..DM3 |
2 | ||
| 65705 - LINK SUB-ASSY, SIDE GATE LOCK | ||||
| 65705-93300 |
BU20..DM3 |
2 | ||
| 65706 - SHAFT ASSY, SIDE GATE LINK CONTROL, RH | ||||
| 65706-93300 |
BU20..DM3 |
1 | ||
| 65707 - SHAFT ASSY, SIDE GATE LINK CONTROL, LH | ||||
| 65707-93300 |
BU20..DM3 |
1 | ||
| 65708 - ROD ASSY, SIDE GATE ROD CONTROL | ||||
| 65708-93300 |
BU20..DM3 |
4 | ||
| 65708-93301 |
BU20..DM3 |
4 | ||
| 65708 - ROD ASSY, SIDE GATE ROD CONTROL | ||||
| 65708-93300 |
BU20..DM3 |
4 | ||
| 65708-93301 |
BU20..DM3 |
4 | ||
| 65708 - ROD ASSY, SIDE GATE ROD CONTROL | ||||
| 65708-93300 |
BU20..DM3 |
4 | ||
| 65708-93301 |
BU20..DM3 |
4 | ||
| 65708 - ROD ASSY, SIDE GATE ROD CONTROL | ||||
| 65708-93300 |
BU20..DM3 |
4 | ||
| 65708-93301 |
BU20..DM3 |
4 | ||
| 65708 - ROD ASSY, SIDE GATE ROD CONTROL | ||||
| 65708-93300 |
BU20..DM3 |
4 | ||
| 65708-93301 |
BU20..DM3 |
4 | ||
| Common parts | ||||
| 90240-10003 | ||||
| 94120-41000 | ||||
| 94611-11001 | ||||
| 94612-11001 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8008- )DM3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65605 - LINK SUB-ASSY, TAIL GATE LOCK | ||||
| 65606-93300 |
BU20..DM3 |
2 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-10006 |
BU20..20T..KKT |
6 | ||
| 65650 - ROD ASSY, HINGE PIN CONTROL | ||||
| 65650-93300 |
BU20..DM3 |
1 | ||
| 65650A - ROLLER, TAIL GATE LOCK | ||||
| 65672-93300 |
BU20..DM3 |
1 | ||
| 65650B - SHAFT, TAIL GATE LOCK ROLLER | ||||
| 65651-93300 |
BU20..DM3 |
1 | ||
| 65681 - END, TAIL GATE LOCK LINK | ||||
| 65680-93300 |
BU20..DM3 |
4 | ||
| 65681-93102 |
BU20..20T..KKT |
4 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65684 - HANGER, TAIL GATE | ||||
| 65697-93101 |
BU23..DM1..KKT;BU20,21..(DM1,DM3)..KKT W/TAIL GATE LOCK |
4 | ||
| 65685 - STOPPER, TAIL GATE HANGER | ||||
| 65699-93102 |
BU20..KKT |
2 | ||
| 65685 - STOPPER, TAIL GATE HANGER | ||||
| 65699-93102 |
BU20..KKT |
2 | ||
| 65696 - LATCH, TAIL GATE LOCK | ||||
| 65695-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT RH |
2 | ||
| 65694-93100 |
BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT LH |
2 | ||
| 65764 - None | ||||
| 65764-93300 |
BU20..DM3 |
2 | ||
| 65764 - None | ||||
| 65764-93300 |
BU20..DM3 |
2 | ||
| Common parts | ||||
| 90520-15002 | ||||
| 94120-41000 | ||||
| 94611-11600 | ||||
| 94612-11001 | ||||
| 95381-03020 | ||||
| 96451-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
