BU20D-QRMTUMY (1979)

Toyota Dyna

Production Apr 1979 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7904- )DM3

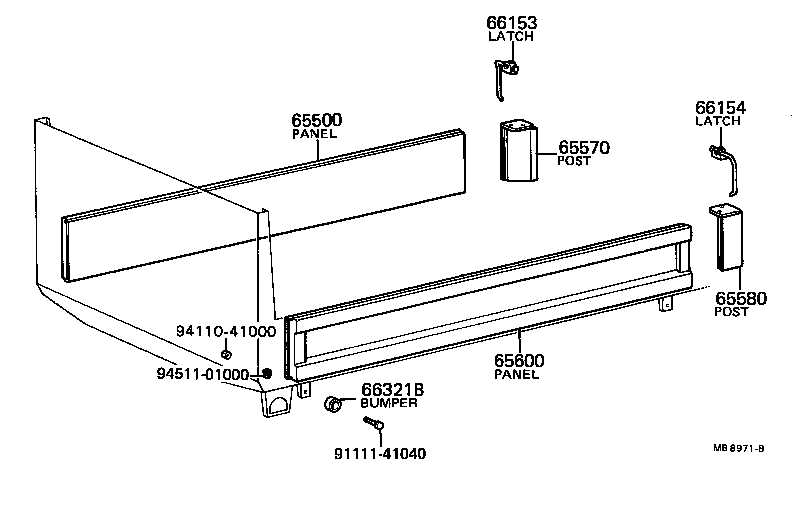

Click highlighted areas on diagram

diagram 65500 65570 65580 65600 66153 66154 66321B 9111141040 9411041000 9451101000
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65530-93300

BU20..DM3

 1
65570 - POST ASSY, SIDE PANEL REAR END, RH
65231-93300

BU20..DM3

 1
65580 - POST ASSY, SIDE PANEL REAR END, LH
65232-93300

BU20..DM3

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65530-93300

BU20..DM3

 1
66153 - LATCH, TAIL GATE FEMALE, RH
66201-93300

BU20..DM3

 1
66154 - LATCH, TAIL GATE FEMALE, LH
66202-93300

BU20..DM3

 1
Common parts
91111-41040
94110-41000
94511-01000
