BU20D-QRMTUMY (1979)

Toyota Dyna

Production Apr 1979 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7904- )DM3

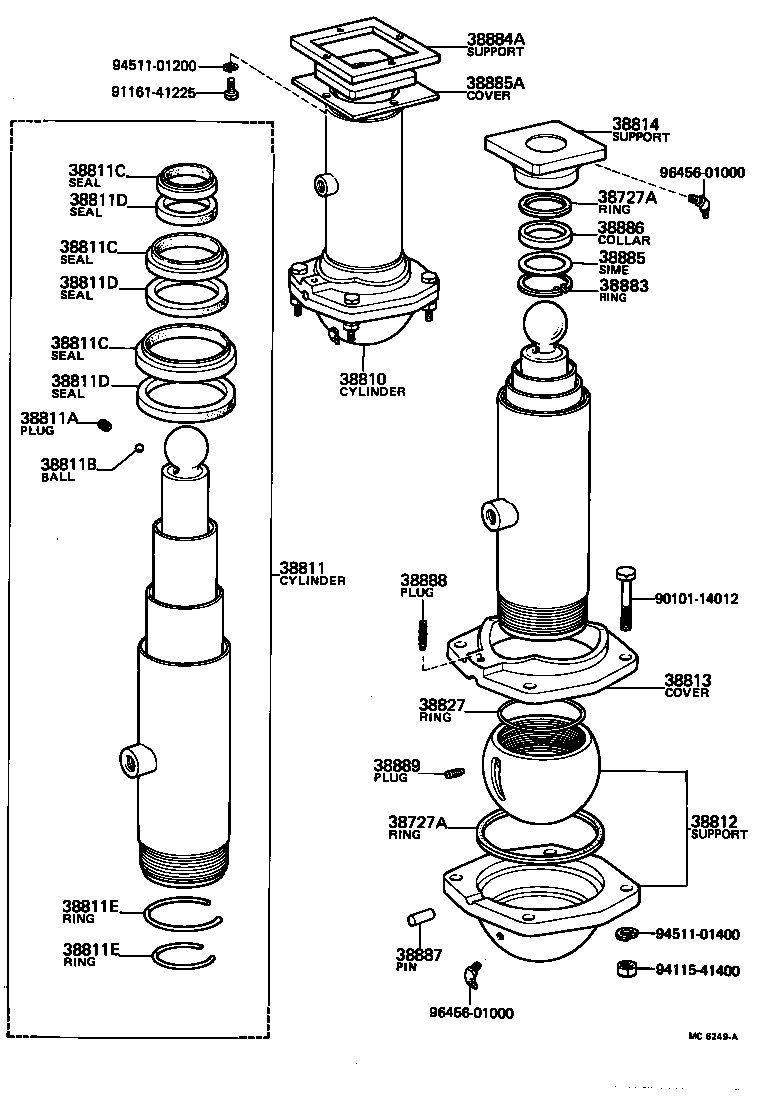

Click highlighted areas on diagram

diagram 38727A 38727A 38810 38811 38811A 38811B 38811C 38811C 38811C 38811D 38811D 38811D 38811E 38811E 38812 38813 38814 38827 38883 38884A 38885 38885A 38886 38887 38888 38889 9010114012 9116141225 9411541400 9451101200 9451101400 9645601000 9645601000
Part # Description Qty Price
38810 - CYLINDER ASSY, HOIST
38810-93101

BU20..KKT

 1
38813 - COVER, HOIST CYLINDER SUPPORT (FOR END)
38885-93300

BU20..DM3

 1
38887 - PIN(FOR HOIST CYLINDER)
38887-93300

BU20..DM3

 1
38888 - PLUG, SCREW (FOR HOIST CYLINDER SUPPORT)
90340-06002

BU20..DM3

 1
Common parts
90101-14012
91161-41225
94115-41400
94511-01200
94511-01400
96456-01000
