BU20D-QRMTUMY (1979)
Toyota Dyna
Production
Apr 1979
-
Apr 1982
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7904-8008)DM3

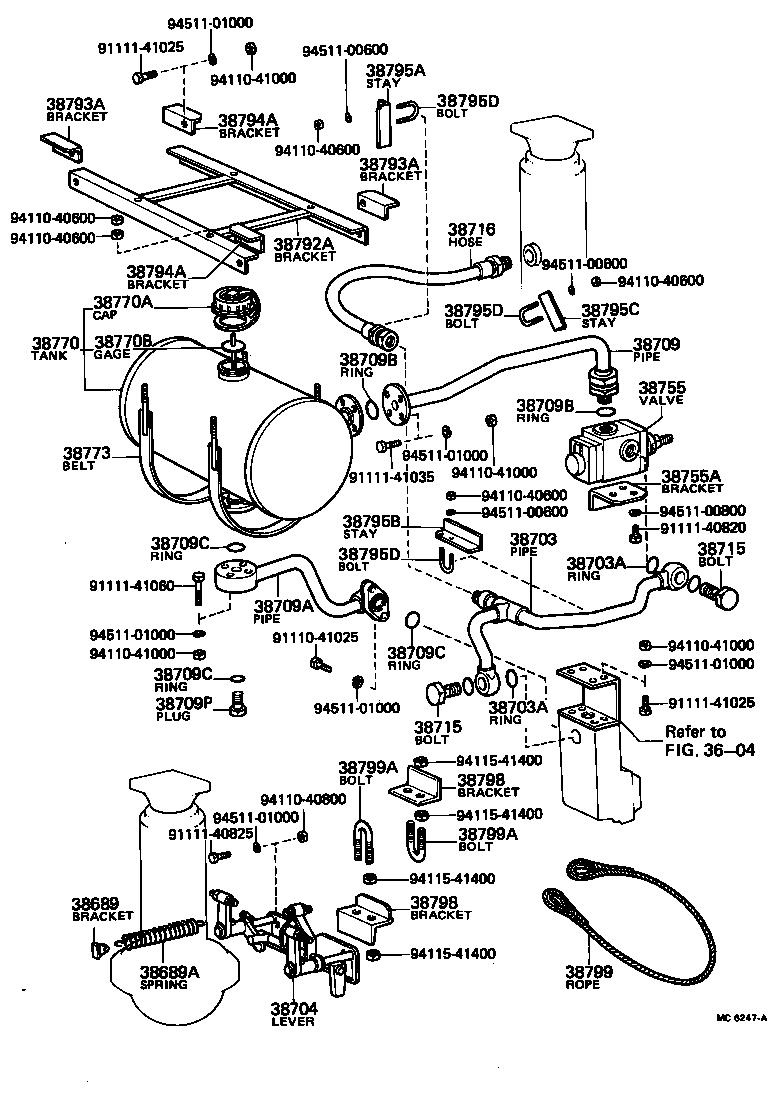

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38689A - SPRING, TENSION (FOR STOP LEVER RETURN) | ||||
| 90506-20003 |
BU20..DM3 |
1 | ||
| 38703 - PIPE SUB-ASSY, DELIVERY | ||||
| 38703-93301 |
BU20..DM3 |
1 | ||
| 38703-93300 |
BU20..DM3 |
1 | ||
| 38703A - RING, O (FOR DELIVERY PIPE) | ||||
| 96710-03031 |
BU20..DM3 |
4 | ||
| 38703A - RING, O (FOR DELIVERY PIPE) | ||||
| 96710-03031 |
BU20..DM3 |
4 | ||
| 38709 - PIPE SUB-ASSY, SUCTION NO.1 (FOR TANK TO STOP VALVE) | ||||
| 38709-93300 |
BU20..DM3 |
1 | ||
| 38709A - PIPE SUB-ASSY, SUCTION NO.2 (FOR TANK TO PUMP) | ||||
| 38709-93310 |
BU20..DM3 |
1 | ||
| 38709-93302 |
BU20..DM3 |
1 | ||
| 38715 - BOLT, I | ||||
| 38715-93300 |
BU20..DM3 |
2 | ||
| 38715 - BOLT, I | ||||
| 38715-93300 |
BU20..DM3 |
2 | ||
| 38716 - HOSE, FLEXIBLE | ||||
| 38716-93300 |
BU20..DM3 |
1 | ||
| 38755A - BRACKET, STOP VALVE SUPPORT | ||||
| 38797-93300 |
BU20..DM3 |
1 | ||
| 38770 - TANK ASSY, OIL | ||||
| 38770-93300 |
BU20..DM3 |
1 | ||
| 38773 - BELT, OIL TANK | ||||
| 38773-93300 |
BU20..DM3 |
2 | ||
| 38792A - BRACKET, OIL TANK | ||||
| 38792-93300 |
BU20..DM3 |
1 | ||
| 38793A - BRACKET, OIL TANK NO.1 | ||||
| 38793-93300 |
BU20..DM3 |
2 | ||
| 38793A - BRACKET, OIL TANK NO.1 | ||||
| 38793-93300 |
BU20..DM3 |
2 | ||
| 38794A - BRACKET, OIL TANK NO.2 | ||||
| 38794-93300 |
BU20..DM3 |
2 | ||
| 38794A - BRACKET, OIL TANK NO.2 | ||||
| 38794-93300 |
BU20..DM3 |
2 | ||
| 38795A - STAY, PIPE SUPPORT(FOR FLEXIBLE HOSE) | ||||
| 38795-93300 |
BU20..DM3 |
1 | ||
| 38795B - STAY, PIPE SUPPORT(FOR SUCTION PIPE) | ||||
| 38795-93310 |
BU20..DM3 |
1 | ||
| 38795C - STAY, PIPE SUPPORT(FOR DELIVERY PIPE) | ||||
| 38795-93320 |
BU20..DM3 |
1 | ||
| Common parts | ||||
| 91110-41025 | ||||
| 91111-40820 | ||||
| 91111-40825 | ||||
| 91111-41025 | ||||
| 91111-41035 | ||||
| 91111-41060 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41400 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| Linked diagrams | ||||
| 3604 | ||||
(8008- )DM3
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38689A - SPRING, TENSION (FOR STOP LEVER RETURN) | ||||
| 90506-20003 |
BU20..DM3 |
1 | ||
| 38703 - PIPE SUB-ASSY, DELIVERY | ||||
| 38703-93301 |
BU20..DM3 |
1 | ||
| 38703-93300 |
BU20..DM3 |
1 | ||
| 38703A - RING, O (FOR DELIVERY PIPE) | ||||
| 96710-03031 |
BU20..DM3 |
4 | ||
| 38703A - RING, O (FOR DELIVERY PIPE) | ||||
| 96710-03031 |
BU20..DM3 |
4 | ||
| 38703A - RING, O (FOR DELIVERY PIPE) | ||||
| 96710-03031 |
BU20..DM3 |
4 | ||
| 38703A - RING, O (FOR DELIVERY PIPE) | ||||
| 96710-03031 |
BU20..DM3 |
4 | ||
| 38709 - PIPE SUB-ASSY, SUCTION NO.1 (FOR TANK TO STOP VALVE) | ||||
| 38709-93300 |
BU20..DM3 |
1 | ||
| 38709A - PIPE SUB-ASSY, SUCTION NO.2 (FOR TANK TO PUMP) | ||||
| 38709-93310 |
BU20..DM3 |
1 | ||
| 38709-93302 |
BU20..DM3 |
1 | ||
| 38715 - BOLT, I | ||||
| 38715-93300 |
BU20..DM3 |
2 | ||
| 38715 - BOLT, I | ||||
| 38715-93300 |
BU20..DM3 |
2 | ||
| 38716 - HOSE, FLEXIBLE | ||||
| 38716-93300 |
BU20..DM3 |
1 | ||
| 38755A - BRACKET, STOP VALVE SUPPORT | ||||
| 38797-93300 |
BU20..DM3 |
1 | ||
| 38770 - TANK ASSY, OIL | ||||
| 38770-93300 |
BU20..DM3 |
1 | ||
| 38773 - BELT, OIL TANK | ||||
| 38773-93300 |
BU20..DM3 |
2 | ||
| 38796 - STAY (FOR OIL RESERVOIR HOSE) | ||||
| 38796-93300 |
BU20..DM3 |
1 | ||
| Common parts | ||||
| 90461-06062 | ||||
| 90480-29003 | ||||
| 91111-40820 | ||||
| 91111-40825 | ||||
| 91111-41025 | ||||
| 91111-41035 | ||||
| 91111-41060 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94115-41400 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
