BU20D-QRMTUMY (1979)

Toyota Dyna

Production Apr 1979 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

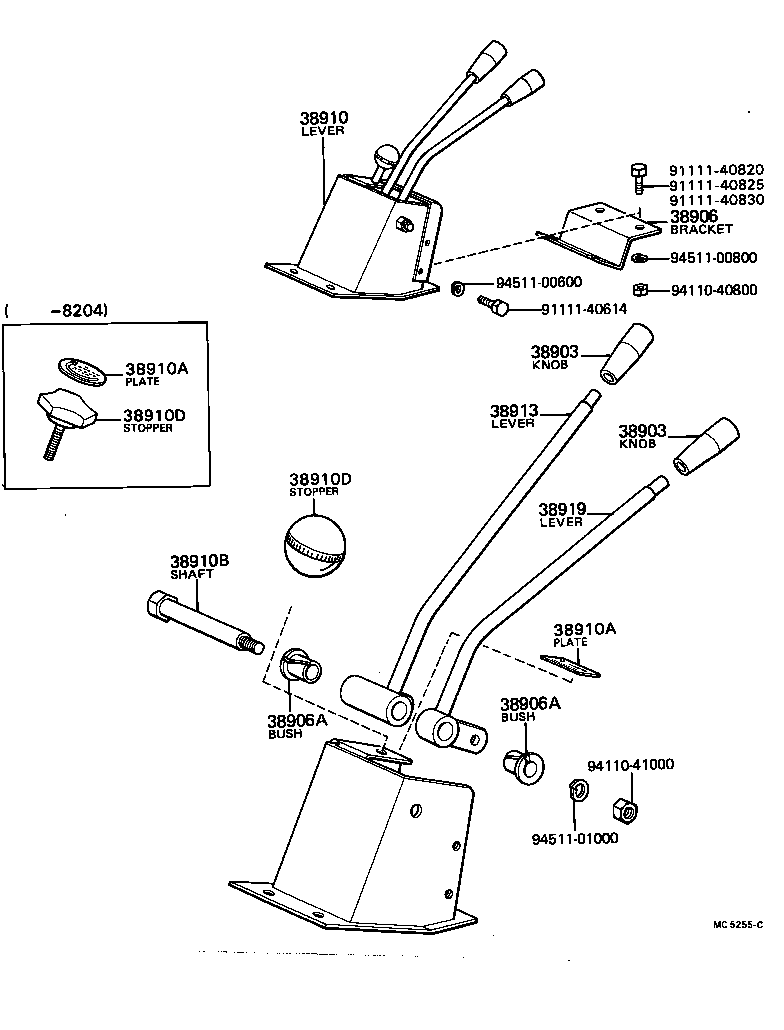

ILLUST NO. 1 OF 2(7708-8008)20T..KKT ; (8008- )DM1..KKT

Click highlighted areas on diagram

diagram 38903 38903 38906 38906A 38906A 38910 38910A 38910A 38910B 38910D 38910D 38913 38919 9111140614 9111140820 9111140825 9111140830 9411040800 9411041000 9451100600 9451100800 9451101000
Part # Description Qty Price
38903 - KNOB SUB-ASSY, CONTROL
38916-93004

BU20..20T..KKT

 2
38903 - KNOB SUB-ASSY, CONTROL
38916-93004

BU20..20T..KKT

 2
38906 - BRACKET SUB-ASSY, CONTROL SHAFT, LOWER
38951-93300

BU20..DM3

 1
38906A - BUSH, CONTROL LINK
90389-16001

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38906A - BUSH, CONTROL LINK
90389-16001

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38910 - LEVER ASSY, DUMP
38910-93300

BU20..DM3

SELECT LEVER

 1
Common parts
91111-40614
91111-40820
91111-40825
91111-40830
94110-40800
94110-41000
94511-00600
94511-00800
94511-01000

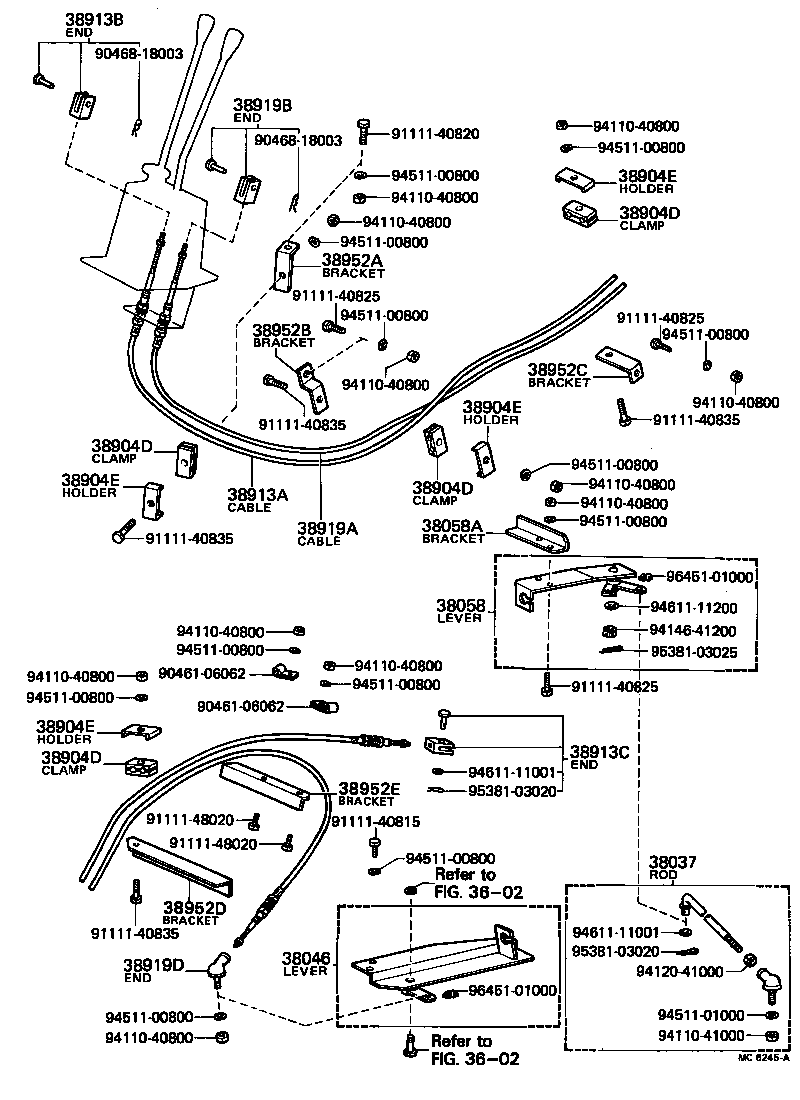

ILLUST NO. 2 OF 2(7904-8008)DM3

Click highlighted areas on diagram

diagram 3602 3602 38037 38046 38058 38058A 38904D 38904D 38904D 38904D 38904E 38904E 38904E 38904E 38913A 38913B 38913C 38919A 38919B 38919D 38952A 38952B 38952C 38952D 38952E 9046106062 9046106062 9046818003 9046818003 9111140815 9111140820 9111140825 9111140825 9111140825 9111140835 9111140835 9111140835 9111140835 9111148020 9111148020 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000 9412041000 9414641200 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451101000 9461111001 9461111001 9461111200 9538103020 9538103020 9538103025 9645101000 9645101000
Part # Description Qty Price
38037 - ROD SUB-ASSY, VALVE CONTROL, REAR
38037-93300

BU20..DM3

 1
38046 - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL
38046-93300

BU20..DM3

 1
38046-93301

BU20..DM3

 1
38058 - LEVER SUB-ASSY, VALVE CONTROL CENTER
38058-93102

BU20..20T..KKT

 1
38058-93102

BU20..DM3

 1
38058A - BRACKET, CONTROL CENTER LEVER
38958-93300

BU20..DM3

 1
38904D - CLAMP, CABLE PUSH PULL
38987-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904D - CLAMP, CABLE PUSH PULL
38987-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904D - CLAMP, CABLE PUSH PULL
38987-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904D - CLAMP, CABLE PUSH PULL
38987-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904E - HOLDER, CABLE PUSH PULL CLAMP
38988-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904E - HOLDER, CABLE PUSH PULL CLAMP
38988-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904E - HOLDER, CABLE PUSH PULL CLAMP
38988-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904E - HOLDER, CABLE PUSH PULL CLAMP
38988-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38913A - CABLE SUB-ASSY, PUSH PULL (FOR PUMP CONTROL)
38902-93301

BU20..DM3

 1
38902-93102

BU20..KKT

L=3500

 1
38902-93300

BU20..DM3

 1
38913B - END ASSY, CONTROL CABLE, NO.1 (FOR PUMP CONTROL)
38908-93100

BU20..20T..KKT

 1
38034-93300

BU20..DM3

 1
38919A - CABLE SUB-ASSY, PUSH PULL (FOR POWER TAKE-OFF CONTROL)
38901-93007

BU20..DM3

 1
38919B - END ASSY, CONTROL CABLE, NO.1(FOR POWER TAKE-OFF CONTRO
38908-93100

BU20..20T..KKT

 1
38919D - JOINT ASSY, BALL (FOR POWER TAKE-OFF CONTROL CABLE)
38907-93101

BU20..DM3

 1
38952A - BRACKET, CONTROL CABLE CLAMP, NO.1
38983-93200

BU20..20T..KKT

 1
38952B - BRACKET, CONTROL CABLE CLAMP, NO.2
38954-93102

BU20..KKT

 1
38954-93300

BU20..DM3

 1
38952C - BRACKET, CONTROL CABLE CLAMP, NO.3
38953-93300

BU20..DM3

 1
38952D - BRACKET, CONTROL CABLE CLAMP, NO.4
38957-93300

BU20..DM3

 1
38952E - BRACKET, CONTROL CABLE CLAMP, NO.5
38957-93310

BU20..DM3

 1
Common parts
90461-06062
90468-18003
91111-40815
91111-40820
91111-40825
91111-40835
91111-48020
94110-40800
94110-41000
94120-41000
94146-41200
94511-00800
94511-01000
94611-11001
94611-11200
95381-03020
95381-03025
96451-01000
Linked diagrams
3602

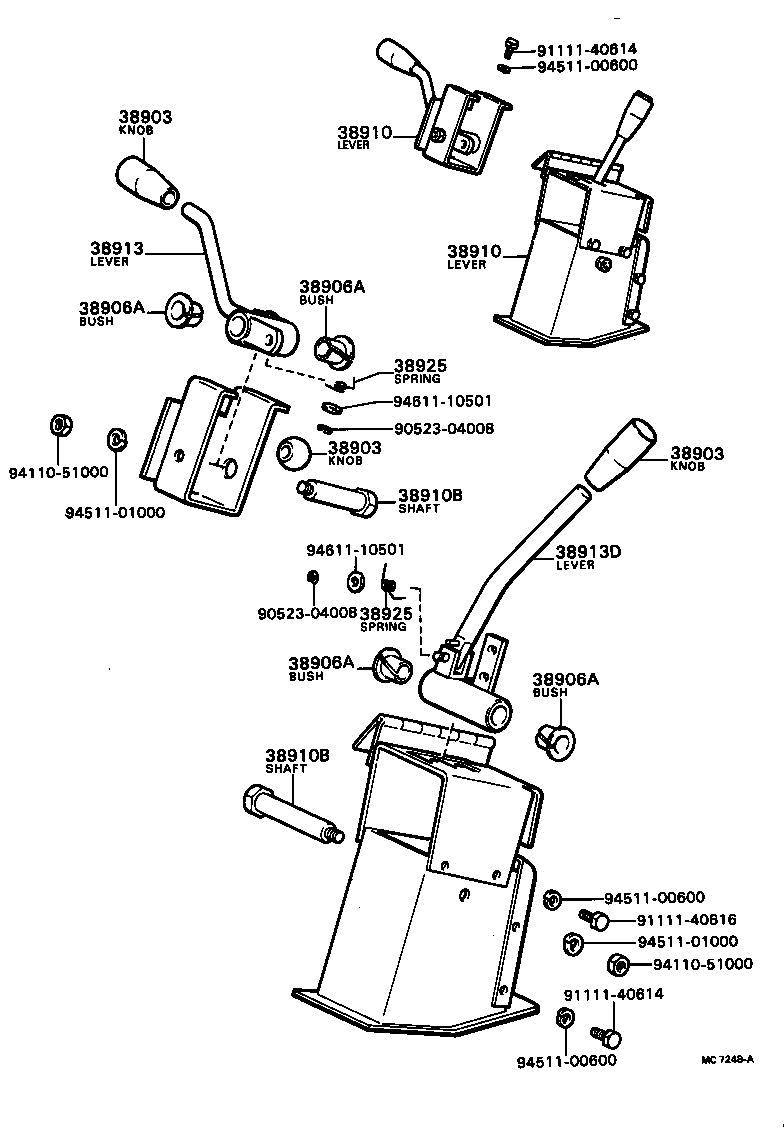

ILLUST NO. 1 OF 4(8008- )DM3

Click highlighted areas on diagram

diagram 38903 38903 38903 38906A 38906A 38906A 38906A 38910 38910 38910B 38910B 38913 38913D 38925 38925 9052304008 9052304008 9111140614 9111140614 9111140616 9411051000 9411051000 9451100600 9451100600 9451100600 9451101000 9451101000 9461110501 9461110501
Part # Description Qty Price
38903 - KNOB SUB-ASSY, CONTROL
38916-93004

BU20..20T..KKT

 2
38903 - KNOB SUB-ASSY, CONTROL
38916-93004

BU20..20T..KKT

 2
38903 - KNOB SUB-ASSY, CONTROL
38916-93004

BU20..20T..KKT

 2
38906A - BUSH, CONTROL LINK
90389-16001

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38906A - BUSH, CONTROL LINK
90389-16001

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38906A - BUSH, CONTROL LINK
90389-16001

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38906A - BUSH, CONTROL LINK
90389-16001

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38910 - LEVER ASSY, DUMP
38910-93300

BU20..DM3

SELECT LEVER

 1
38910 - LEVER ASSY, DUMP
38910-93300

BU20..DM3

SELECT LEVER

 1
Common parts
90523-04008
91111-40614
91111-40616
94110-51000
94511-00600
94511-01000
94611-10501

ILLUST NO. 2 OF 4(8008-8204)DM3

Click highlighted areas on diagram

diagram 38904B 38904D 38904D 38904D 38904D 38904E 38904E 38904E 38904E 38904F 38904G 38913A 38913B 38913C 38939A 38952A 38952B 38952C 38952D 38952D 38952E 38952E 9024010003 9024010014 9046106062 9046108171 9111140820 9111140820 9111140820 9111140825 9111140825 9111140825 9111140825 9111140825 9111140835 9111140835 9111140835 9111140835 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9461110800 9461111001 9461111001 9461111001 9461111001 9538102015 9538103020 9538103020 9538103020
Part # Description Qty Price
38904D - CLAMP, CABLE PUSH PULL
38987-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904D - CLAMP, CABLE PUSH PULL
38987-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904D - CLAMP, CABLE PUSH PULL
38987-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904D - CLAMP, CABLE PUSH PULL
38987-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904E - HOLDER, CABLE PUSH PULL CLAMP
38988-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904E - HOLDER, CABLE PUSH PULL CLAMP
38988-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904E - HOLDER, CABLE PUSH PULL CLAMP
38988-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38904E - HOLDER, CABLE PUSH PULL CLAMP
38988-93200

BU20,21..20T..KKT;BU23..(DM1,DM4)..KKT

 4
38913A - CABLE SUB-ASSY, PUSH PULL (FOR PUMP CONTROL)
38902-93301

BU20..DM3

 1
38902-93102

BU20..KKT

L=3500

 1
38902-93300

BU20..DM3

 1
38913B - END ASSY, CONTROL CABLE, NO.1 (FOR PUMP CONTROL)
38908-93100

BU20..20T..KKT

 1
38034-93300

BU20..DM3

 1
38952A - BRACKET, CONTROL CABLE CLAMP, NO.1
38983-93200

BU20..20T..KKT

 1
38952B - BRACKET, CONTROL CABLE CLAMP, NO.2
38954-93102

BU20..KKT

 1
38954-93300

BU20..DM3

 1
38952C - BRACKET, CONTROL CABLE CLAMP, NO.3
38953-93300

BU20..DM3

 1
38952D - BRACKET, CONTROL CABLE CLAMP, NO.4
38957-93300

BU20..DM3

 1
38952D - BRACKET, CONTROL CABLE CLAMP, NO.4
38957-93300

BU20..DM3

 1
38952E - BRACKET, CONTROL CABLE CLAMP, NO.5
38957-93310

BU20..DM3

 1
38952E - BRACKET, CONTROL CABLE CLAMP, NO.5
38957-93310

BU20..DM3

 1
Common parts
90240-10003
90240-10014
90461-06062
90461-08171
91111-40820
91111-40825
91111-40835
94110-40800
94511-00800
94611-10800
94611-11001
95381-02015
95381-03020

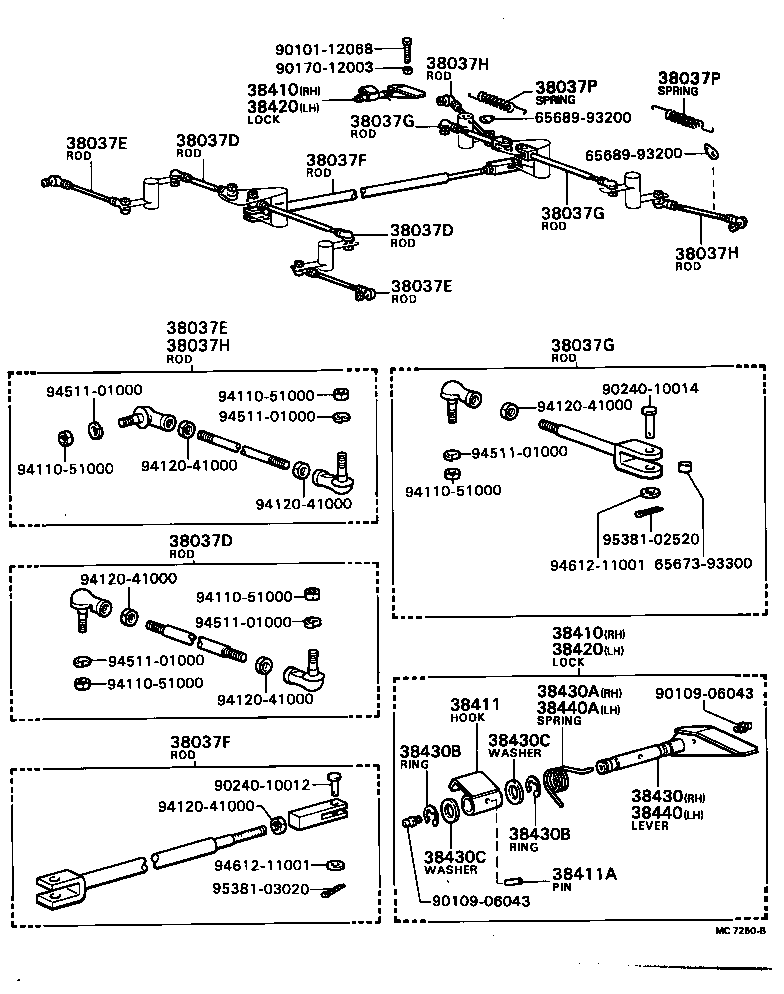

ILLUST NO. 4 OF 4(8008- )DM3

Click highlighted areas on diagram

diagram 38037D 38037D 38037D 38037E 38037E 38037E 38037F 38037F 38037G 38037G 38037G 38037H 38037H 38037H 38037P 38037P 38410 38410 38411 38411A 38420 38420 38430 38430A 38430B 38430B 38430C 38430C 38440 38440A 6567393300 6568993200 6568993200 9010112068 9010906043 9010906043 9017012003 9024010012 9024010014 9411051000 9411051000 9411051000 9411051000 9411051000 9412041000 9412041000 9412041000 9412041000 9412041000 9412041000 9451101000 9451101000 9451101000 9451101000 9451101000 9461211001 9461211001 9538102520 9538103020
Part # Description Qty Price
Common parts
65673-93300
65689-93200
90101-12068
90109-06043
90170-12003
90240-10012
90240-10014
94110-51000
94120-41000
94511-01000
94612-11001
95381-02520
95381-03020

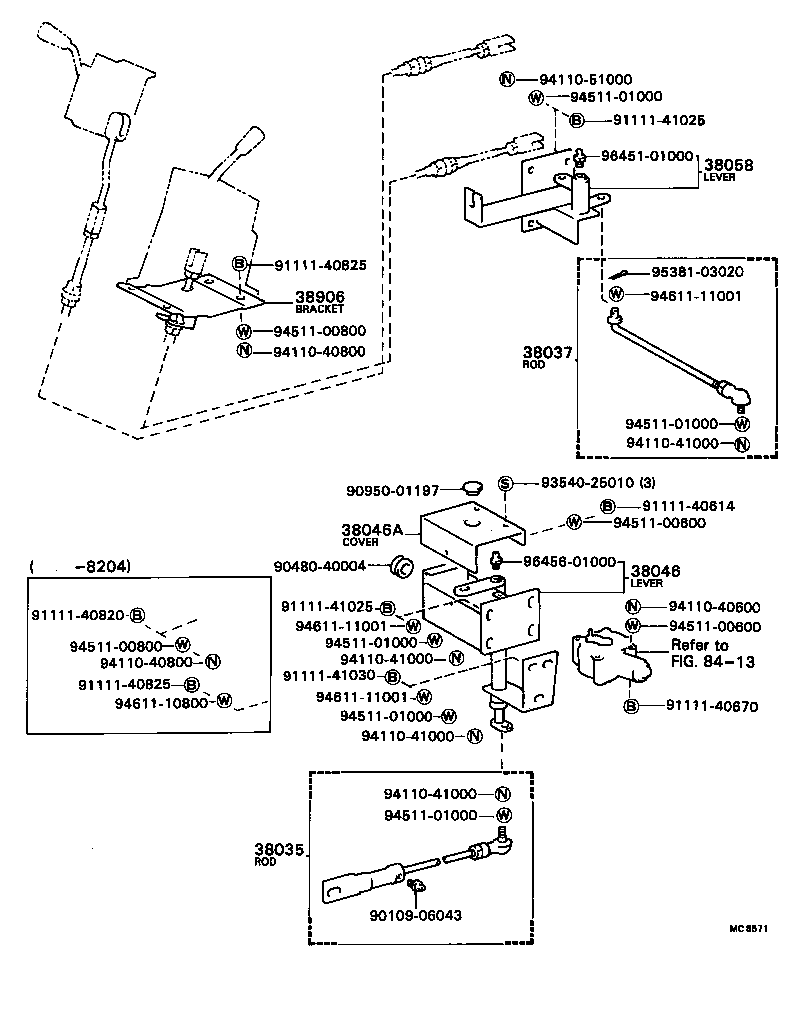

ILLUST NO. 3 OF 4(8008- )DM3

Click highlighted areas on diagram

diagram 38035 38037 38046 38046A 38058 38906 8413 9010906043 9048040004 9095001197 9111140614 9111140670 9111140820 9111140825 9111140825 9111141025 9111141025 9111141030 9354025010 9411040600 9411040800 9411040800 9411041000 9411041000 9411041000 9411041000 9411051000 9451100600 9451100600 9451100800 9451100800 9451101000 9451101000 9451101000 9451101000 9451101000 9461110800 9461111001 9461111001 9461111001 9538103020 9645101000 9645601000
Part # Description Qty Price
38037 - ROD SUB-ASSY, VALVE CONTROL, REAR
38037-93300

BU20..DM3

 1
38046 - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL
38046-93300

BU20..DM3

 1
38046-93301

BU20..DM3

 1
38046A - COVER, POWER TAKE-OFF CONTROL LEVER
38989-93300

BU20..DM3

 1
38058 - LEVER SUB-ASSY, VALVE CONTROL CENTER
38058-93102

BU20..20T..KKT

 1
38058-93102

BU20..DM3

 1
38906 - BRACKET SUB-ASSY, CONTROL SHAFT, LOWER
38951-93300

BU20..DM3

 1
Common parts
90109-06043
90480-40004
90950-01197
91111-40614
91111-40670
91111-40820
91111-40825
91111-41025
91111-41030
93540-25010
94110-40600
94110-40800
94110-41000
94110-51000
94511-00600
94511-00800
94511-01000
94611-10800
94611-11001
95381-03020
96451-01000
96456-01000
Linked diagrams
8413
