BU20D-QRMTU (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )DM1,DM4

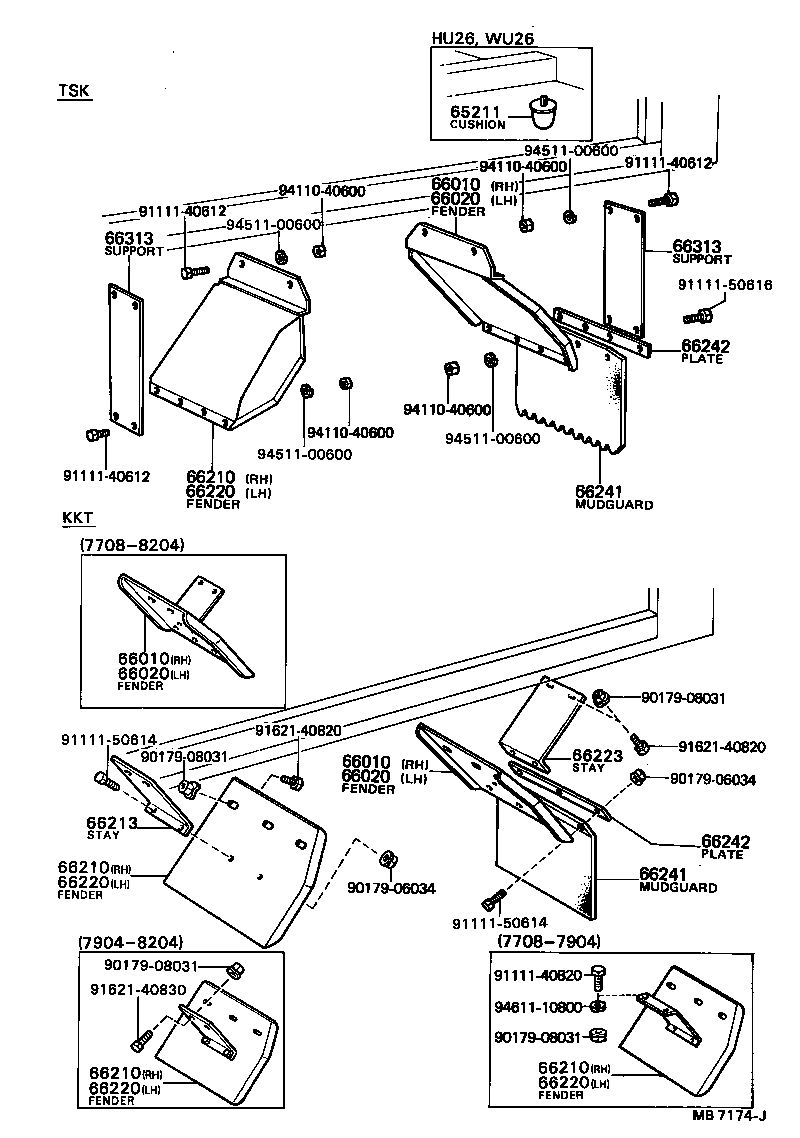

Click highlighted areas on diagram

diagram 65211 66010 66010 66010 66020 66020 66020 66210 66210 66210 66210 66213 66220 66220 66220 66220 66223 66241 66241 66242 66242 66313 66313 9017906034 9017906034 9017908031 9017908031 9017908031 9017908031 9111140612 9111140612 9111140612 9111140820 9111150614 9111150614 9111150616 9162140820 9162140820 9162140830 9411040600 9411040600 9411040600 9411040600 9451100600 9451100600 9451100600 9451100600 9461110800
Part # Description Qty Price
66010 - FENDER ASSY, REAR BODY, REAR RH
66315-93102

BU20..KKT

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66315-93102

BU20..KKT

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66315-93102

BU20..KKT

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66316-93102

BU20..KKT

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66316-93102

BU20..KKT

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66316-93102

BU20..KKT

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66311-93102

BU20..KKT

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66311-93102

BU20..KKT

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66311-93102

BU20..KKT

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66311-93102

BU20..KKT

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66312-93102

BU20..KKT

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66312-93102

BU20..KKT

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66312-93102

BU20..KKT

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66312-93102

BU20..KKT

 1
66241 - MUDGUARD, REAR
66331-93102

BU20..20T..KKT

 2
66241 - MUDGUARD, REAR
66331-93102

BU20..20T..KKT

 2
66242 - PLATE, REAR MUDGUARD SET RETAINER
66332-93102

BU20..20T..KKT

 2
66242 - PLATE, REAR MUDGUARD SET RETAINER
66332-93102

BU20..20T..KKT

 2
Common parts
90179-06034
90179-08031
91111-40612
91111-40820
91111-50614
91111-50616
91621-40820
91621-40830
94110-40600
94511-00600
94611-10800
