BU20D-QRMT3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

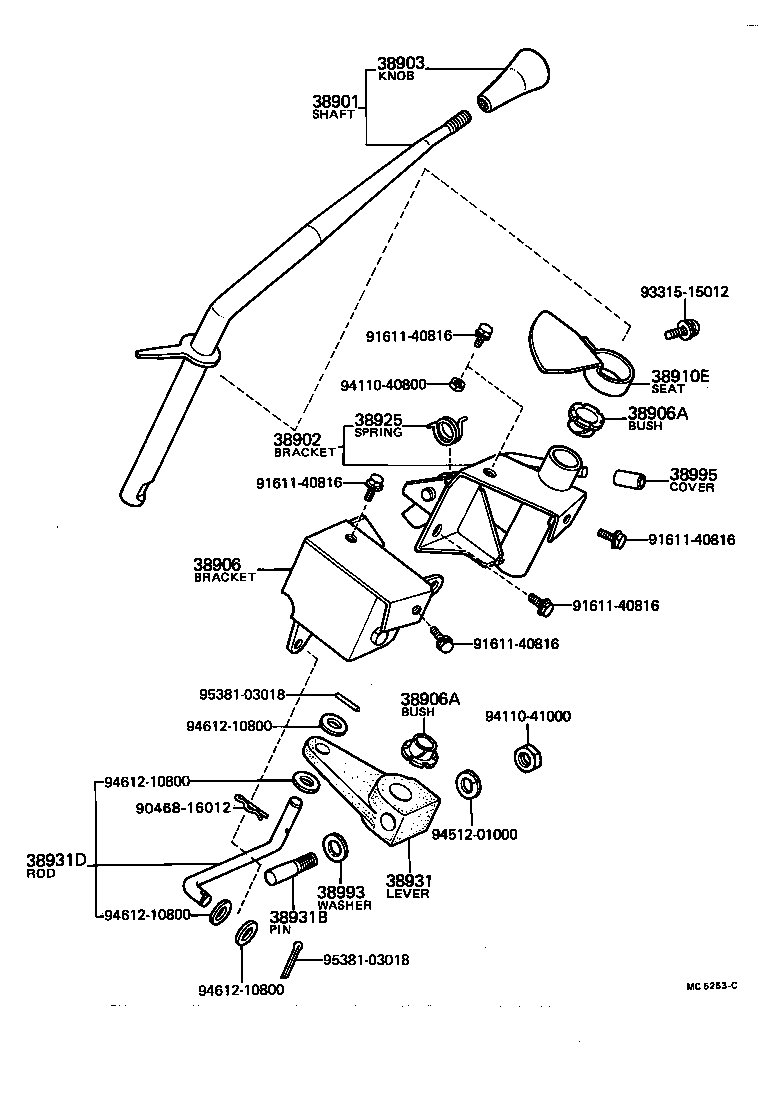

ILLUST NO. 1 OF 2(7708- )TSK ; (8204- )TS..20T

Click highlighted areas on diagram

diagram 38901 38902 38903 38906 38906A 38906A 38910E 38925 38931 38931B 38931D 38993 38995 9046816012 9161140816 9161140816 9161140816 9161140816 9161140816 9331515012 9411040800 9411041000 9451201000 9461210800 9461210800 9461210800 9461210800 9538103018 9538103018
Part # Description Qty Price
38901 - SHAFT SUB-ASSY, CONTROL
38901-96307

BU20,21,23..TSK

 1
38902 - BRACKET SUB-ASSY, CONTROL SHAFT, UPPER
38902-96306

BU20,21,23..TSK

 1
38903 - KNOB SUB-ASSY, CONTROL
38903-96302

BU20..TSK

 1
38906 - BRACKET SUB-ASSY, CONTROL SHAFT, LOWER
38906-96304

BU20,21,23..TSK

 1
38906A - BUSH, CONTROL LINK
90386-16022

BU20,21,23..TSK

 2
38906A - BUSH, CONTROL LINK
90386-16022

BU20,21,23..TSK

 2
38910E - SEAT, DUMP LEVER CAUTION PLATE
38976-96301

BU20,21,23..TSK

 1
38925 - SPRING, CONTROL LINK SET
38925-96303

BU20,21,23..TSK

 1
38931 - LEVER, VALVE LINK
38931-96306

BU20,21,23..TSK

 1
38931B - PIN, VALVE LINK LEVER
45285-55010

BU20,21,23..TSK

 1
38931D - ROD (FOR VALVE LINK LEVER)
38936-96303

BU20,21,23..TSK

 1
38993 - WASHER, CONTROL SHAFT, NO.2
38993-96301

BU20,21,23..TSK

 1
38995 - COVER, LOCK LEVER
38995-96301

BU20,21,23..TSK

 1
Common parts
90468-16012
91611-40816
93315-15012
94110-40800
94110-41000
94512-01000
94612-10800
95381-03018

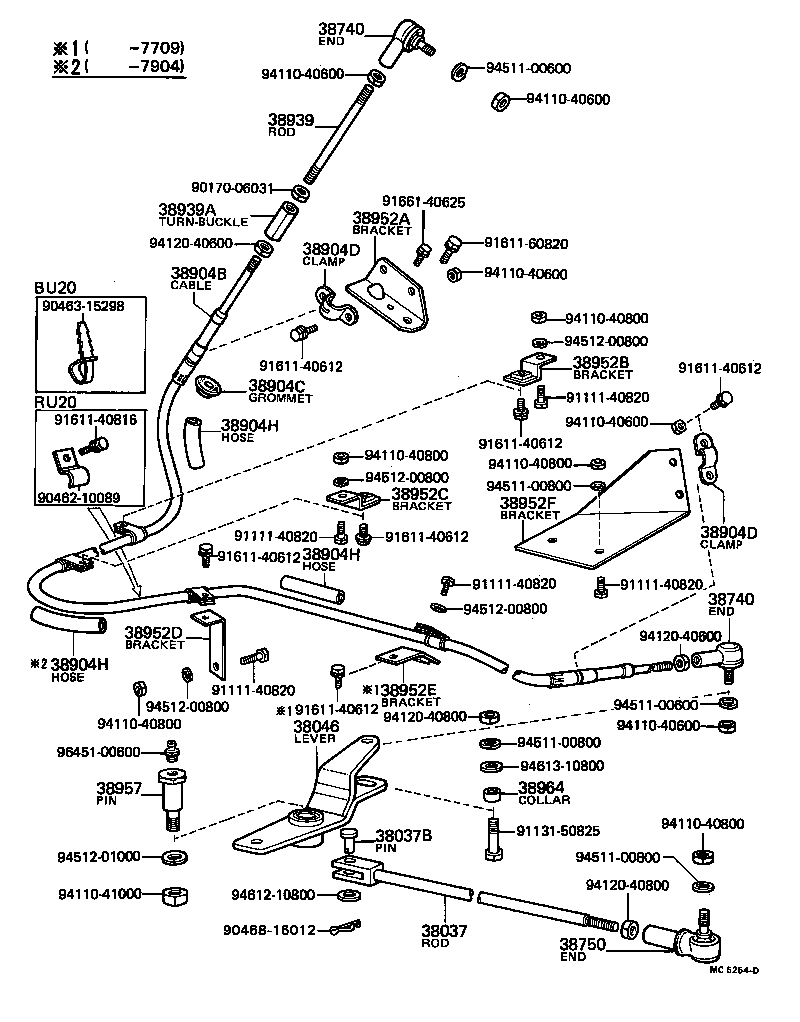

ILLUST NO. 2 OF 2(7708-8204)TSK

Click highlighted areas on diagram

diagram 38037 38037B 38046 38740 38740 38750 38904B 38904C 38904D 38904D 38904H 38904H 38904H 38939 38939A 38952A 38952B 38952C 38952D 38952E 38952F 38957 38964 9017006031 9046210089 9046315298 9046816012 9111140820 9111140820 9111140820 9111140820 9111140820 9113150825 9161140612 9161140612 9161140612 9161140612 9161140612 9161140612 9161140816 9161160820 9166140625 9411040600 9411040600 9411040600 9411040600 9411040600 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000 9412040600 9412040600 9412040800 9412040800 9451100600 9451100600 9451100800 9451100800 9451100800 9451200800 9451200800 9451200800 9451200800 9451201000 9461210800 9461310800 9645100600
Part # Description Qty Price
38037 - ROD SUB-ASSY, VALVE CONTROL, REAR
38037-96308

BU20,21,23..TSK

 1
38037B - PIN, VALVE CONTROL REAR ROD
90240-08013

BU20,21,23..TSK

 1
38046 - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL
38046-96305

BU20,21,23..TSK

 1
38740 - END ASSY, CONNECTING ROD
33740-96301

BU20,21,23..TSK

 2
38740 - END ASSY, CONNECTING ROD
33740-96301

BU20,21,23..TSK

 2
38750 - END ASSY, CONNECTING ROD
33740-35011

BU20,21,23..TSK

 1
38904B - CABLE ASSY, PUSH PULL
38904-96308

BU20..TSK

 1
38904C - GROMMET, PUSH PULL CABLE
90480-20391

BU20,21,23..TSK

 1
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU20,21,23..TSK

 2
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU20,21,23..TSK

 2
38904H - HOSE, PUSH PULL CABLE PROTECTOR
38996-96301

BU20..TSK

L=150

 1
38991-96301

BU20..TSK

L=100

 2
38904H - HOSE, PUSH PULL CABLE PROTECTOR
38996-96301

BU20..TSK

L=150

 1
38991-96301

BU20..TSK

L=100

 2
38904H - HOSE, PUSH PULL CABLE PROTECTOR
38996-96301

BU20..TSK

L=150

 1
38991-96301

BU20..TSK

L=100

 2
38939 - ROD, CABLE CONNECTING
38939-96301

BU20..TSK

 1
38939A - TURNBUCKLE(FOR CABLE CONNECTING ROD)
90587-06006

BU20,21,23..TSK

 1
38952A - BRACKET, CONTROL CABLE CLAMP, NO.1
38954-96303

BU20,21,23..TSK

 1
38952B - BRACKET, CONTROL CABLE CLAMP, NO.2
38955-96302

BU20..TSK

 1
38952C - BRACKET, CONTROL CABLE CLAMP, NO.3
38955-96302

BU20..TSK

 1
38952D - BRACKET, CONTROL CABLE CLAMP, NO.4
38987-96301

BU20,21,23..TSK

 1
38952E - BRACKET, CONTROL CABLE CLAMP, NO.5
38988-96301

BU20..TSK

 1
38952F - BRACKET, CONTROL CABLE CLAMP, NO.6
38979-96301

BU20,21,23..TSK

 1
38957 - PIN, CONTROL LEVER
38957-96302

BU20,21,23..TSK

 1
38964 - COLLAR, CONTROL LEVER
38964-96301

BU20,21,23..TSK

 1
Common parts
90170-06031
90462-10089
90463-15298
90468-16012
91111-40820
91131-50825
91611-40612
91611-40816
91611-60820
91661-40625
94110-40600
94110-40800
94110-41000
94120-40600
94120-40800
94511-00600
94511-00800
94512-00800
94512-01000
94612-10800
94613-10800
96451-00600
