BU20D-QRMT3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )TSK

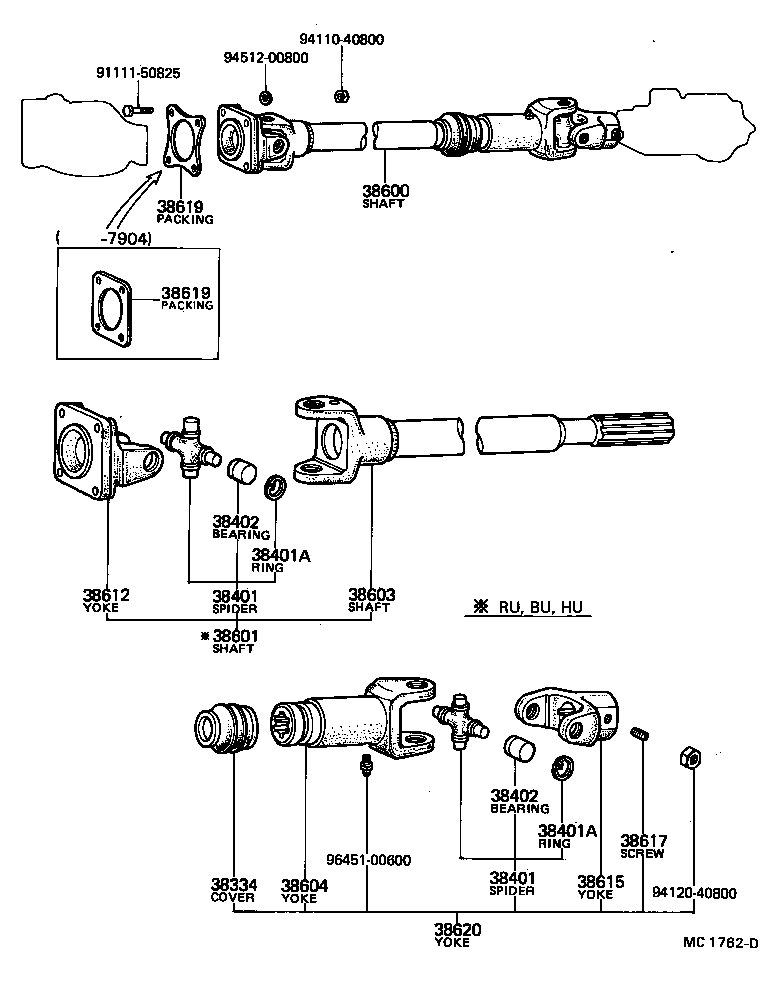

Click highlighted areas on diagram

diagram 38334 38401 38401 38401A 38401A 38402 38402 38600 38601 38603 38604 38612 38615 38617 38619 38619 38620 9111150825 9411040800 9412040800 9451200800 9645100600
Part # Description Qty Price
38334 - COVER, COUPLING SLEEVE REAR, DUST
37334-10010

BU20,21,23..TSK

 1
38401 - SPIDER, UNIVERSAL JOINT (FOR OIL PUMP)
04371-10011

BU20,21,23..TSK

 2
38401 - SPIDER, UNIVERSAL JOINT (FOR OIL PUMP)
04371-10011

BU20,21,23..TSK

 2
38401A - RING, UNIVERSAL JOINT NEEDLE
90521-22012

BU20,21,23..TSK

T=1.25

 8
90521-22011

BU20,21,23..TSK

T=1.20

 8
90521-22013

BU20,21,23..TSK

T=1.30

 8
38401A - RING, UNIVERSAL JOINT NEEDLE
90521-22012

BU20,21,23..TSK

T=1.25

 8
90521-22011

BU20,21,23..TSK

T=1.20

 8
90521-22013

BU20,21,23..TSK

T=1.30

 8
38402 - BEARING, UNIVERSAL JOINT SPIDER
37402-10020

BU20,21,23..TSK

 8
38402 - BEARING, UNIVERSAL JOINT SPIDER
37402-10020

BU20,21,23..TSK

 8
38600 - SHAFT ASSY, OIL PUMP DRIVE
38600-96304

BU20..TSK

 1
38601 - SHAFT SUB-ASSY, PUMP DRIVE, FRONT
38601-96304

BU20..TSK

 1
38603 - SHAFT SUB-ASSY, FRONT DRIVE
38603-96304

BU20,21,23..TSK

 1
38604 - YOKE SUB-ASSY, FRONT DRIVE
38604-96301

BU20,21,23..TSK

 1
38612 - YOKE, UNIVERSAL JOINT FLANGE
38612-96301

BU20..TSK

 1
38615 - YOKE, PUMP DRIVE SHAFT
38615-96301

BU20,21..TSK

 1
38617 - SCREW, UNIVERSAL JOINT YOKE, SET
90113-08064

BU20,21..TSK

 1
38619 - PACKING, UNIVERSAL JOINT YOKE
38619-96301

BU20..TSK

T=0.8

 1
38619 - PACKING, UNIVERSAL JOINT YOKE
38619-96301

BU20..TSK

T=0.8

 1
38620 - YOKE ASSY, PUMP DRIVE
38602-96302

BU20,21..TSK

 1
Common parts
91111-50825
94110-40800
94120-40800
94512-00800
96451-00600
