BU20D-QRMT (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU20..FTP ; (7708- )BU20,22..TR ;(7708- )BU20..KKT,TSK ; (7708-

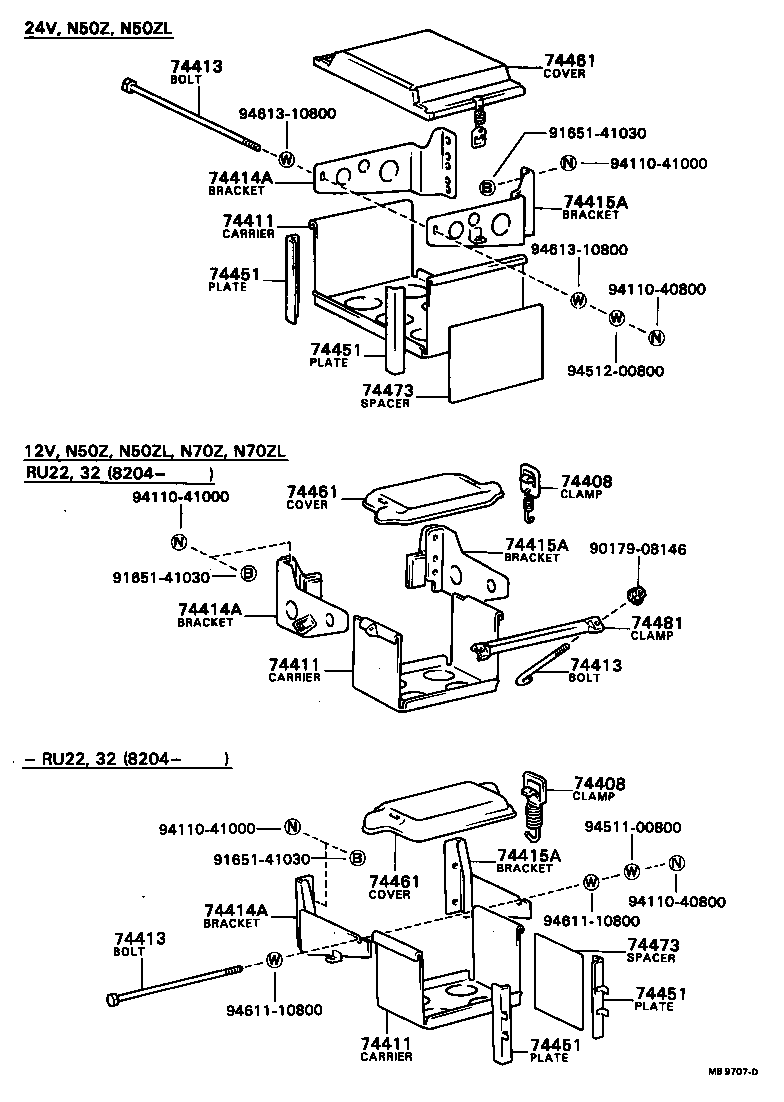

Click highlighted areas on diagram

diagram 74408 74411 74411 74413 74413 74414A 74414A 74415A 74415A 74451 74451 74451 74451 74461 74461 74473 74473 9017908146 9161141030 9165141030 9411040800 9411040800 9411041000 9411041000 9451100800 9451100800 9461110800 9461310800 9461310800
Part # Description Qty Price
74408 - CLAMP SUB-ASSY, BATTERY COVER
74408-55020

BU20..BTP;BU20..T3..TS;BU20,30..DM1,TB

 2
74411 - CARRIER, BATTERY
74421-36031

BU20,30..DMP,TR

24V,N70Z,N70ZL

 1
74421-36060

BU20,30..DM1,TB,TS

24V,N50Z,N50ZL

 1
74411 - CARRIER, BATTERY
74421-36031

BU20,30..DMP,TR

24V,N70Z,N70ZL

 1
74421-36060

BU20,30..DM1,TB,TS

24V,N50Z,N50ZL

 1
74413 - BOLT, BATTERY CLAMP
90101-08223

BU20,30..DM1,TB,TS

24V,N50ZL,N70ZL

 1
90101-08223

BU20..WT;BU22..TR;BU20,22..DTP;BU20..TR..ST;BU21,23,25,3#,4#,5#

24V,N50Z,N70Z,N100Z

 1
74413 - BOLT, BATTERY CLAMP
90101-08223

BU20,30..DM1,TB,TS

24V,N50ZL,N70ZL

 1
90101-08223

BU20..WT;BU22..TR;BU20,22..DTP;BU20..TR..ST;BU21,23,25,3#,4#,5#

24V,N50Z,N70Z,N100Z

 1
74414A - BRACKET, BATTERY, NO.1
74402-36030

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41..H50

24V,N70Z,N70ZL

 1
74402-36071

BU20..DM1,TS;BU20,21,23..FTP;BU32,34,40,41,5#;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU21,23..DM1,DM4,TB

24V,N50Z,N50ZL

 1
74414A - BRACKET, BATTERY, NO.1
74402-36030

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41..H50

24V,N70Z,N70ZL

 1
74402-36071

BU20..DM1,TS;BU20,21,23..FTP;BU32,34,40,41,5#;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU21,23..DM1,DM4,TB

24V,N50Z,N50ZL

 1
74415A - BRACKET, BATTERY, NO.2
74401-36040

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41,50..H50

24V,N70Z,N70ZL

 1
74401-36091

BU20..DM1,TS;BU20,21..FTP;BU30..T3,TW1;BU21..DM1,DM4,TB;BU20,36,37..T3..TB;BU31,32,34,35,40,41,5#..H50

24V,N50Z,N50ZL

 1
74415A - BRACKET, BATTERY, NO.2
74401-36040

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41,50..H50

24V,N70Z,N70ZL

 1
74401-36091

BU20..DM1,TS;BU20,21..FTP;BU30..T3,TW1;BU21..DM1,DM4,TB;BU20,36,37..T3..TB;BU31,32,34,35,40,41,5#..H50

24V,N50Z,N50ZL

 1
74461 - COVER, BATTERY
74405-36011

BU20..T2,T3;BU20..CTP,DTP;BU20..KKT,TSK;BU20..BTP..DSL;BU25,30,31..02S,03S

24V,N70Z,N70ZL

 1
74405-36021

BU20..DTP;BU20..T3..ST;BU3#..02S,03S;BU20..(02S,03S)..WT

24V,N50Z,N50ZL

 1
74461 - COVER, BATTERY
74405-36011

BU20..T2,T3;BU20..CTP,DTP;BU20..KKT,TSK;BU20..BTP..DSL;BU25,30,31..02S,03S

24V,N70Z,N70ZL

 1
74405-36021

BU20..DTP;BU20..T3..ST;BU3#..02S,03S;BU20..(02S,03S)..WT

24V,N50Z,N50ZL

 1
74473 - SPACER, BATTERY
74474-36010

BU20,30..DM1,TB,TS

T=9

 1
74473-36020

BU20,30..DM1,TB,TS

T=5

 1
74473-36010

BU20..DTP;BU20..T3..ST;BU25,3#..02S,03S;BU20..(02S,03S)..WT

T=3

 1
74473 - SPACER, BATTERY
74474-36010

BU20,30..DM1,TB,TS

T=9

 1
74473-36020

BU20,30..DM1,TB,TS

T=5

 1
74473-36010

BU20..DTP;BU20..T3..ST;BU25,3#..02S,03S;BU20..(02S,03S)..WT

T=3

 1
Common parts
90179-08146
91611-41030
91651-41030
94110-40800
94110-41000
94511-00800
94611-10800
94613-10800

(7708- )DTP ; (7708- )BU20..WT ; (7708-)BU20..TR..ST ; (7708- )BU22,36

Click highlighted areas on diagram

diagram 74411 74413 74413 74414A 74414A 74415A 74415A 74451 74451 74461 74473 9165141030 9165141030 9411040800 9411040800 9411041000 9411041000 9451100800 9451100800 9461310080 9461310800 9461310800 9461310800
Part # Description Qty Price
74411 - CARRIER, BATTERY
74421-36031

BU20,30..DMP,TR

24V,N70Z,N70ZL

 1
74421-36060

BU20,30..DM1,TB,TS

24V,N50Z,N50ZL

 1
74413 - BOLT, BATTERY CLAMP
90101-08223

BU20,30..DM1,TB,TS

24V,N50ZL,N70ZL

 1
90101-08223

BU20..WT;BU22..TR;BU20,22..DTP;BU20..TR..ST;BU21,23,25,3#,4#,5#

24V,N50Z,N70Z,N100Z

 1
74413 - BOLT, BATTERY CLAMP
90101-08223

BU20,30..DM1,TB,TS

24V,N50ZL,N70ZL

 1
90101-08223

BU20..WT;BU22..TR;BU20,22..DTP;BU20..TR..ST;BU21,23,25,3#,4#,5#

24V,N50Z,N70Z,N100Z

 1
74414A - BRACKET, BATTERY, NO.1
74402-36030

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41..H50

24V,N70Z,N70ZL

 1
74402-36071

BU20..DM1,TS;BU20,21,23..FTP;BU32,34,40,41,5#;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU21,23..DM1,DM4,TB

24V,N50Z,N50ZL

 1
74414A - BRACKET, BATTERY, NO.1
74402-36030

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41..H50

24V,N70Z,N70ZL

 1
74402-36071

BU20..DM1,TS;BU20,21,23..FTP;BU32,34,40,41,5#;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU21,23..DM1,DM4,TB

24V,N50Z,N50ZL

 1
74415A - BRACKET, BATTERY, NO.2
74401-36040

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41,50..H50

24V,N70Z,N70ZL

 1
74401-36091

BU20..DM1,TS;BU20,21..FTP;BU30..T3,TW1;BU21..DM1,DM4,TB;BU20,36,37..T3..TB;BU31,32,34,35,40,41,5#..H50

24V,N50Z,N50ZL

 1
74415A - BRACKET, BATTERY, NO.2
74401-36040

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41,50..H50

24V,N70Z,N70ZL

 1
74401-36091

BU20..DM1,TS;BU20,21..FTP;BU30..T3,TW1;BU21..DM1,DM4,TB;BU20,36,37..T3..TB;BU31,32,34,35,40,41,5#..H50

24V,N50Z,N50ZL

 1
74461 - COVER, BATTERY
74405-36011

BU20..T2,T3;BU20..CTP,DTP;BU20..KKT,TSK;BU20..BTP..DSL;BU25,30,31..02S,03S

24V,N70Z,N70ZL

 1
74405-36021

BU20..DTP;BU20..T3..ST;BU3#..02S,03S;BU20..(02S,03S)..WT

24V,N50Z,N50ZL

 1
74473 - SPACER, BATTERY
74474-36010

BU20,30..DM1,TB,TS

T=9

 1
74473-36020

BU20,30..DM1,TB,TS

T=5

 1
74473-36010

BU20..DTP;BU20..T3..ST;BU25,3#..02S,03S;BU20..(02S,03S)..WT

T=3

 1
Common parts
91651-41030
94110-40800
94110-41000
94511-00800
94613-10080
94613-10800

(7708- )DTP ; (7708- )BU20..WT ; (7708-)BU20..TR..ST ; (7708- )BU22,36

Click highlighted areas on diagram

diagram 74408 74408 74411 74411 74411 74413 74413 74413 74414A 74414A 74414A 74415A 74415A 74415A 74451 74451 74451 74451 74461 74461 74461 74473 74473 74481 9017908146 9165141030 9165141030 9165141030 9411040800 9411040800 9411041000 9411041000 9411041000 9451100800 9451200800 9461110800 9461110800 9461310800 9461310800
Part # Description Qty Price
74408 - CLAMP SUB-ASSY, BATTERY COVER
74408-55020

BU20..BTP;BU20..T3..TS;BU20,30..DM1,TB

 2
74408 - CLAMP SUB-ASSY, BATTERY COVER
74408-55020

BU20..BTP;BU20..T3..TS;BU20,30..DM1,TB

 2
74411 - CARRIER, BATTERY
74421-36031

BU20,30..DMP,TR

24V,N70Z,N70ZL

 1
74421-36060

BU20,30..DM1,TB,TS

24V,N50Z,N50ZL

 1
74411 - CARRIER, BATTERY
74421-36031

BU20,30..DMP,TR

24V,N70Z,N70ZL

 1
74421-36060

BU20,30..DM1,TB,TS

24V,N50Z,N50ZL

 1
74411 - CARRIER, BATTERY
74421-36031

BU20,30..DMP,TR

24V,N70Z,N70ZL

 1
74421-36060

BU20,30..DM1,TB,TS

24V,N50Z,N50ZL

 1
74413 - BOLT, BATTERY CLAMP
90101-08223

BU20,30..DM1,TB,TS

24V,N50ZL,N70ZL

 1
90101-08223

BU20..WT;BU22..TR;BU20,22..DTP;BU20..TR..ST;BU21,23,25,3#,4#,5#

24V,N50Z,N70Z,N100Z

 1
74413 - BOLT, BATTERY CLAMP
90101-08223

BU20,30..DM1,TB,TS

24V,N50ZL,N70ZL

 1
90101-08223

BU20..WT;BU22..TR;BU20,22..DTP;BU20..TR..ST;BU21,23,25,3#,4#,5#

24V,N50Z,N70Z,N100Z

 1
74413 - BOLT, BATTERY CLAMP
90101-08223

BU20,30..DM1,TB,TS

24V,N50ZL,N70ZL

 1
90101-08223

BU20..WT;BU22..TR;BU20,22..DTP;BU20..TR..ST;BU21,23,25,3#,4#,5#

24V,N50Z,N70Z,N100Z

 1
74414A - BRACKET, BATTERY, NO.1
74402-36030

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41..H50

24V,N70Z,N70ZL

 1
74402-36071

BU20..DM1,TS;BU20,21,23..FTP;BU32,34,40,41,5#;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU21,23..DM1,DM4,TB

24V,N50Z,N50ZL

 1
74414A - BRACKET, BATTERY, NO.1
74402-36030

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41..H50

24V,N70Z,N70ZL

 1
74402-36071

BU20..DM1,TS;BU20,21,23..FTP;BU32,34,40,41,5#;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU21,23..DM1,DM4,TB

24V,N50Z,N50ZL

 1
74414A - BRACKET, BATTERY, NO.1
74402-36030

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41..H50

24V,N70Z,N70ZL

 1
74402-36071

BU20..DM1,TS;BU20,21,23..FTP;BU32,34,40,41,5#;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU21,23..DM1,DM4,TB

24V,N50Z,N50ZL

 1
74415A - BRACKET, BATTERY, NO.2
74401-36040

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41,50..H50

24V,N70Z,N70ZL

 1
74401-36091

BU20..DM1,TS;BU20,21..FTP;BU30..T3,TW1;BU21..DM1,DM4,TB;BU20,36,37..T3..TB;BU31,32,34,35,40,41,5#..H50

24V,N50Z,N50ZL

 1
74415A - BRACKET, BATTERY, NO.2
74401-36040

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41,50..H50

24V,N70Z,N70ZL

 1
74401-36091

BU20..DM1,TS;BU20,21..FTP;BU30..T3,TW1;BU21..DM1,DM4,TB;BU20,36,37..T3..TB;BU31,32,34,35,40,41,5#..H50

24V,N50Z,N50ZL

 1
74415A - BRACKET, BATTERY, NO.2
74401-36040

BU20..DM1,TS;BU21,23..DM1,TB;BU20,36,37..T3..TB;BU22,30..T1,T3,TW1;BU20,21,22,23..CTP,DTP,FTP;BU25,31,32,34,35,40,41,50..H50

24V,N70Z,N70ZL

 1
74401-36091

BU20..DM1,TS;BU20,21..FTP;BU30..T3,TW1;BU21..DM1,DM4,TB;BU20,36,37..T3..TB;BU31,32,34,35,40,41,5#..H50

24V,N50Z,N50ZL

 1
74461 - COVER, BATTERY
74405-36011

BU20..T2,T3;BU20..CTP,DTP;BU20..KKT,TSK;BU20..BTP..DSL;BU25,30,31..02S,03S

24V,N70Z,N70ZL

 1
74405-36021

BU20..DTP;BU20..T3..ST;BU3#..02S,03S;BU20..(02S,03S)..WT

24V,N50Z,N50ZL

 1
74461 - COVER, BATTERY
74405-36011

BU20..T2,T3;BU20..CTP,DTP;BU20..KKT,TSK;BU20..BTP..DSL;BU25,30,31..02S,03S

24V,N70Z,N70ZL

 1
74405-36021

BU20..DTP;BU20..T3..ST;BU3#..02S,03S;BU20..(02S,03S)..WT

24V,N50Z,N50ZL

 1
74461 - COVER, BATTERY
74405-36011

BU20..T2,T3;BU20..CTP,DTP;BU20..KKT,TSK;BU20..BTP..DSL;BU25,30,31..02S,03S

24V,N70Z,N70ZL

 1
74405-36021

BU20..DTP;BU20..T3..ST;BU3#..02S,03S;BU20..(02S,03S)..WT

24V,N50Z,N50ZL

 1
74473 - SPACER, BATTERY
74474-36010

BU20,30..DM1,TB,TS

T=9

 1
74473-36020

BU20,30..DM1,TB,TS

T=5

 1
74473-36010

BU20..DTP;BU20..T3..ST;BU25,3#..02S,03S;BU20..(02S,03S)..WT

T=3

 1
74473 - SPACER, BATTERY
74474-36010

BU20,30..DM1,TB,TS

T=9

 1
74473-36020

BU20,30..DM1,TB,TS

T=5

 1
74473-36010

BU20..DTP;BU20..T3..ST;BU25,3#..02S,03S;BU20..(02S,03S)..WT

T=3

 1
Common parts
90179-08146
91651-41030
94110-40800
94110-41000
94511-00800
94512-00800
94611-10800
94613-10800
