BU20-QRY3 (1979)

Toyota Dyna

Production Apr 1979 - Feb 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )BU36,37,4#,5#

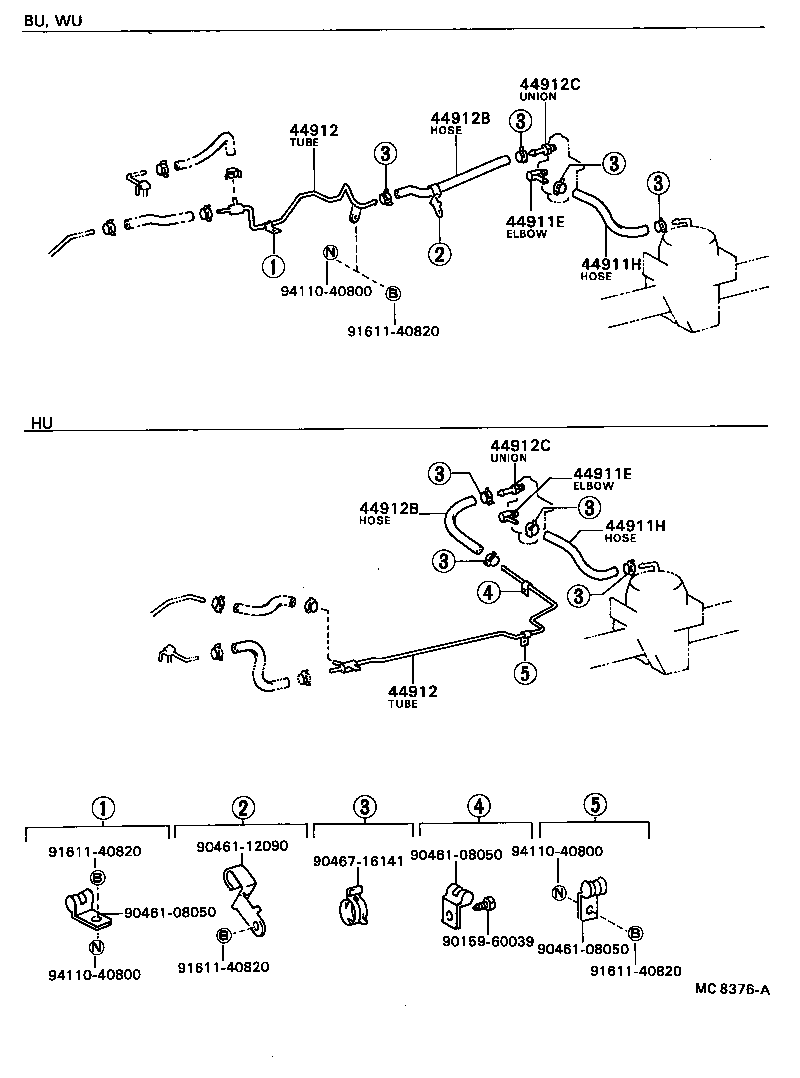

Click highlighted areas on diagram

diagram 44911E 44911E 44911H 44911H 44912 44912 44912B 44912B 44912C 44912C 9015960039 9046108050 9046108050 9046108050 9046112090 9046716141 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800
Part # Description Qty Price
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU2#,3#

 1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU2#,3#

 1
44911H - HOSE (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90445-17895

BU20..M50;BU21..DM3;BU3#,4#,50;BU21..BTP,FTP;BU20..CTP,FTP;BU20..DM3..CBU;BU20..KKT..IV3

 1
44911H - HOSE (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90445-17895

BU20..M50;BU21..DM3;BU3#,4#,50;BU21..BTP,FTP;BU20..CTP,FTP;BU20..DM3..CBU;BU20..KKT..IV3

 1
Common parts
90159-60039
90461-08050
90461-12090
90467-16141
91611-40820
94110-40800
