BU20-QRPY (1979)

Toyota Dyna

Production Apr 1979 - Feb 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

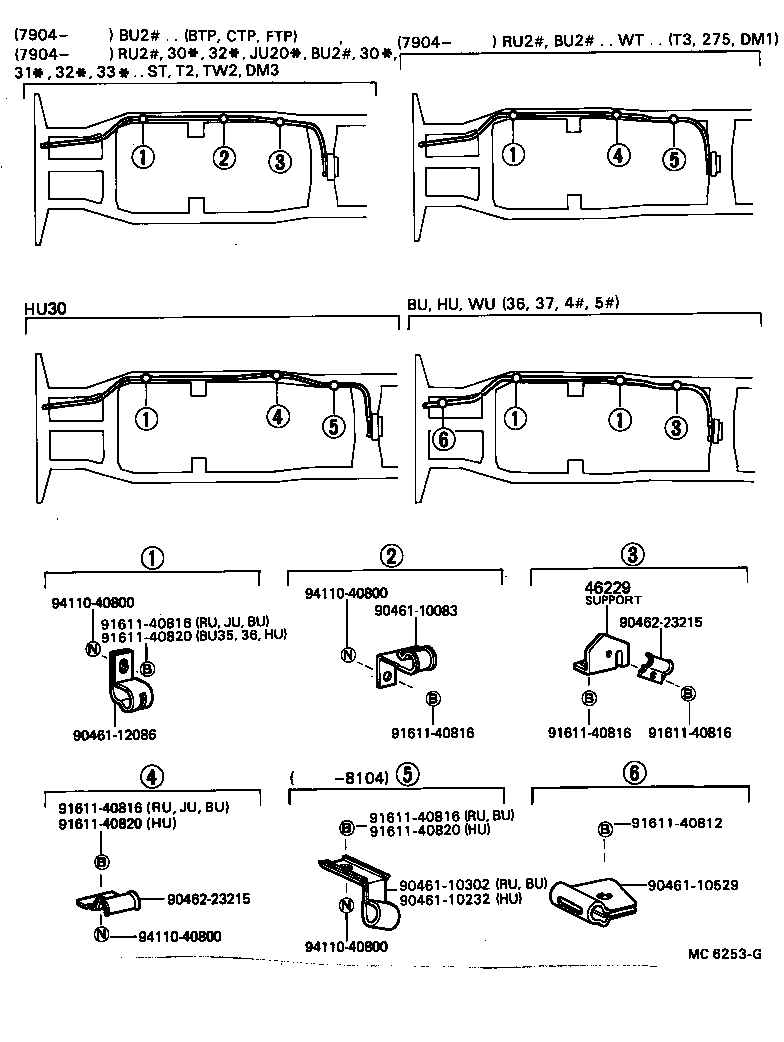

ILLUST NO. 3 OF 3(7904- )

Click highlighted areas on diagram

diagram 46229 9046110083 9046110232 9046110302 9046110529 9046112086 9046223215 9046223215 9161140812 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
46229 - SUPPORT, PARKING BRAKE CABLE GUIDE
46229-36020

BU30;BU20..ST;BU20..T2

 1
Common parts
90461-10083
90461-10232
90461-10302
90461-10529
90461-12086
90462-23215
91611-40812
91611-40816
91611-40820
94110-40800
