BU20-QRP (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU20,22..T1,TW1

Click highlighted areas on diagram

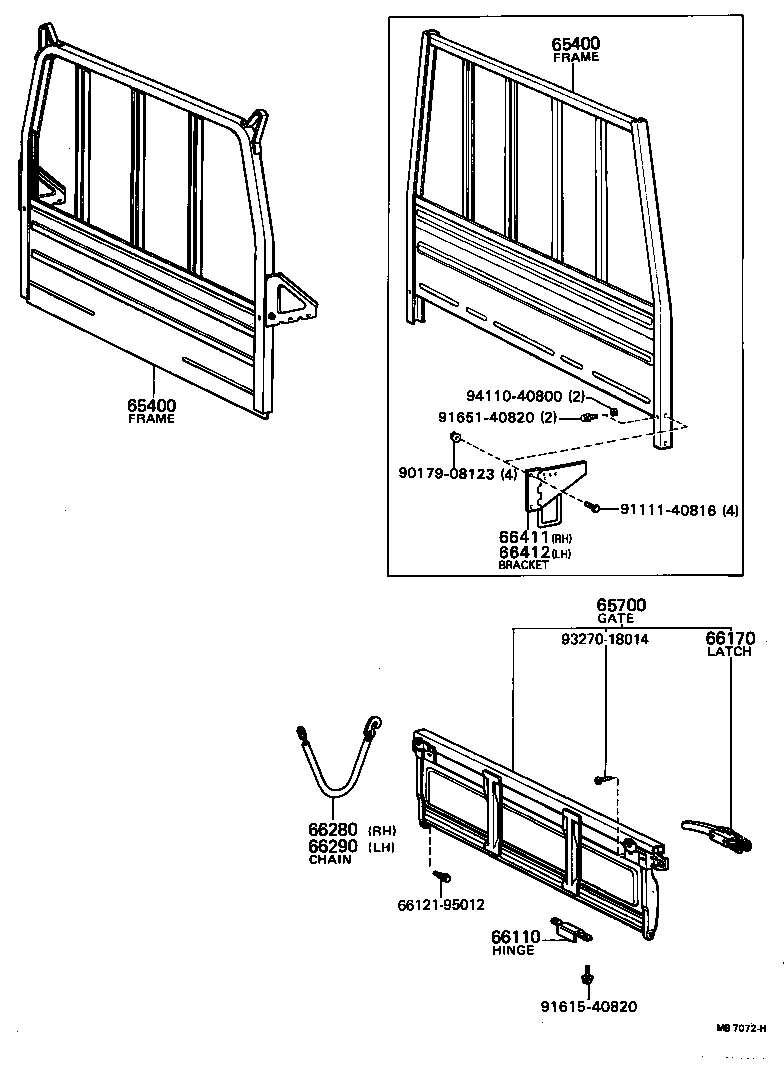

diagram 65400 65400 65700 66110 6612195012 66170 66280 66290 66411 66412 9017908123 9111140816 9161540820 9165140820 9327018014 9411040800
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65400-95416

BU20..T1,TW1

 1
65400 - FRAME ASSY, REAR BODY GUARD
65400-95416

BU20..T1,TW1

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95412

BU20..T1,TW1

 1
66110 - HINGE ASSY, TAIL GATE
66110-95014

BU20,22..T1,TW1

 2
66170 - LATCH ASSY, REAR BODY TAIL GATE
66170-95402

BU20,22..T1,TW1

 2
66280 - CHAIN ASSY, TAIL GATE, RH
66280-95011

BU20,30..TS

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-95011

BU20,30..TS

 1
66411 - BRACKET, GUARD FRAME, RH
66401-95401

BU20,30..(T3,TW1)..TS

 1
66412 - BRACKET, GUARD FRAME, LH
66402-95401

BU20,30..(T3,TW1)..TS

 1
Common parts
66121-95012
90179-08123
91111-40816
91615-40820
91651-40820
93270-18014
94110-40800
