BU20-QRLT (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

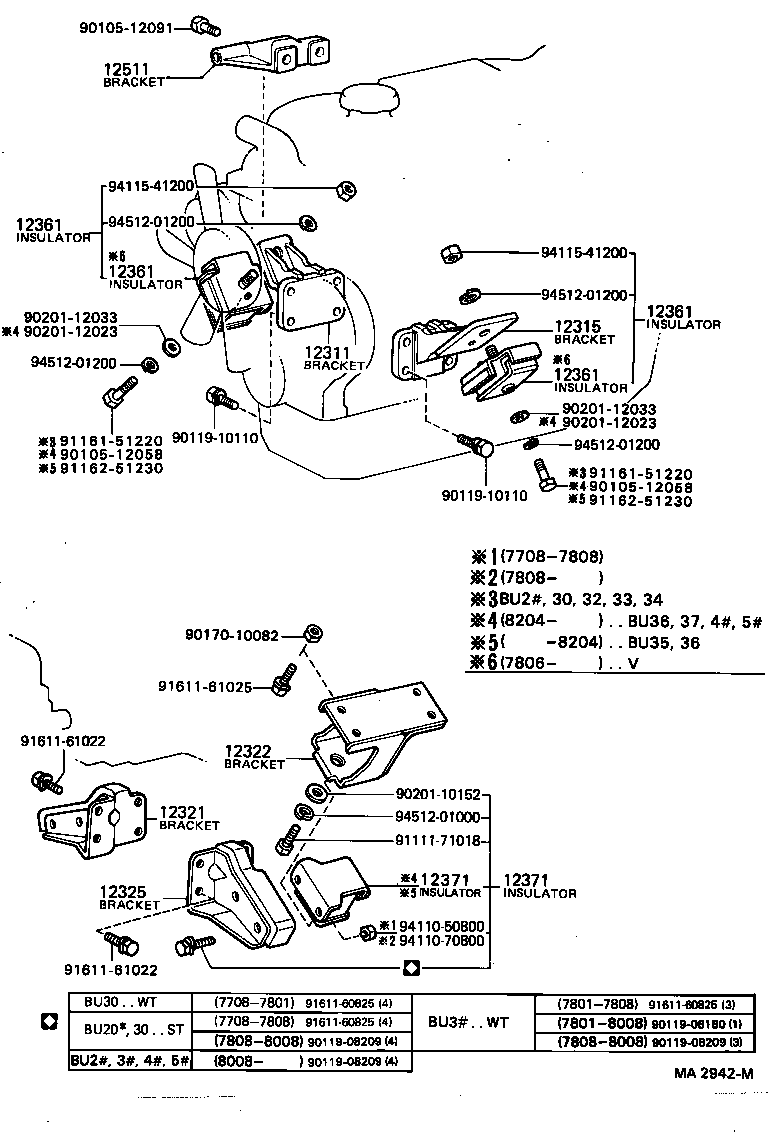

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12325 12361 12361 12361 12361 12371 12371 12511 9010512058 9010512058 9010512091 9011908180 9011908209 9011908209 9011908209 9011910110 9011910110 9017010082 9020110152 9020112023 9020112023 9020112033 9020112033 9111171018 9116151220 9116151220 9116251230 9116251230 9161160825 9161160825 9161160825 9161161022 9161161022 9161161025 9411050800 9411070800 9411541200 9411541200 9451201000 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-56010

B,2B..BU2#,3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-56010

B,2B..BU2#,3#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-56031

B..BU20..HRF,SRF,T1,T2,TW1,TW2

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-56060

B..BU20..ST;B..BU30,35..M50;B..BU20..T2,TW2

 2
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-56021

B..BU20..HRF,SRF,T1,T2,TW1,TW2

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-59055

B..BU20..CTP;B..BU20,30..TR,V

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-59055

B..BU20..CTP;B..BU20,30..TR,V

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-59055

B..BU20..CTP;B..BU20,30..TR,V

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-59055

B..BU20..CTP;B..BU20,30..TR,V

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59035

B..BU2#,30

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59035

B..BU2#,30

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-56020

B,2B..BU2#,3#

 1
Common parts
90105-12058
90105-12091
90119-08180
90119-08209
90119-10110
90170-10082
90201-10152
90201-12023
90201-12033
91111-71018
91161-51220
91162-51230
91611-60825
91611-61022
91611-61025
94110-50800
94110-70800
94115-41200
94512-01000
94512-01200
