BU20-QRGT3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU2#,30,31,32,33,34

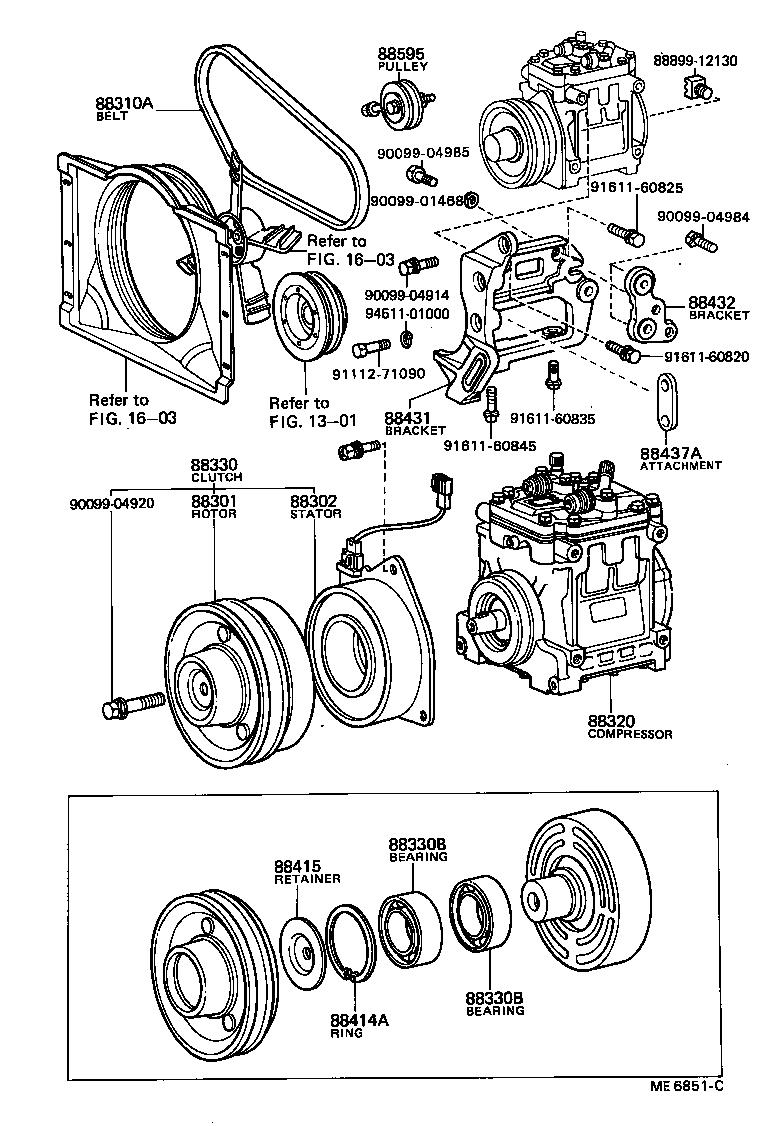

Click highlighted areas on diagram

diagram 1301 1603 1603 88301 88302 88310A 88320 88330 88330B 88330B 88414A 88415 88431 88432 88437A 88595 8889912130 9009901468 9009904914 9009904920 9009904984 9009904985 9111271090 9161160820 9161160825 9161160835 9161160845 9451101000
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88401-36090

BU2#,30,31,32,33,34

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-36080

BU2#,30,31,32,33,34

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00940

BU2#,3#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-36070

BU2#,3#

 1
88330 - CLUTCH ASSY, MAGNET
88410-36120

BU2#,30,31

 1
88330B - BEARING, MAGNET CLUTCH
90099-10083

BU2#,30,31,32,33,34

 2
88330B - BEARING, MAGNET CLUTCH
90099-10083

BU2#,30,31,32,33,34

 2
88414A - RING, SHIELD SNAP
90096-90005

BU2#,30,31,32,33,34

 1
88415 - RETAINER, MAGNET CLUTCH BEARING, NO.1
88415-12020

BU2#,30,31,32,33,34

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36130

BU2#,3#

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88431-36110

BU2#,3#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

BU2#,3#

 1
Common parts
88899-12130
90099-01468
90099-04914
90099-04920
90099-04984
90099-04985
91112-71090
91611-60820
91611-60825
91611-60835
91611-60845
94511-01000
Linked diagrams
1301
1603
