BU20-QRGT3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )V

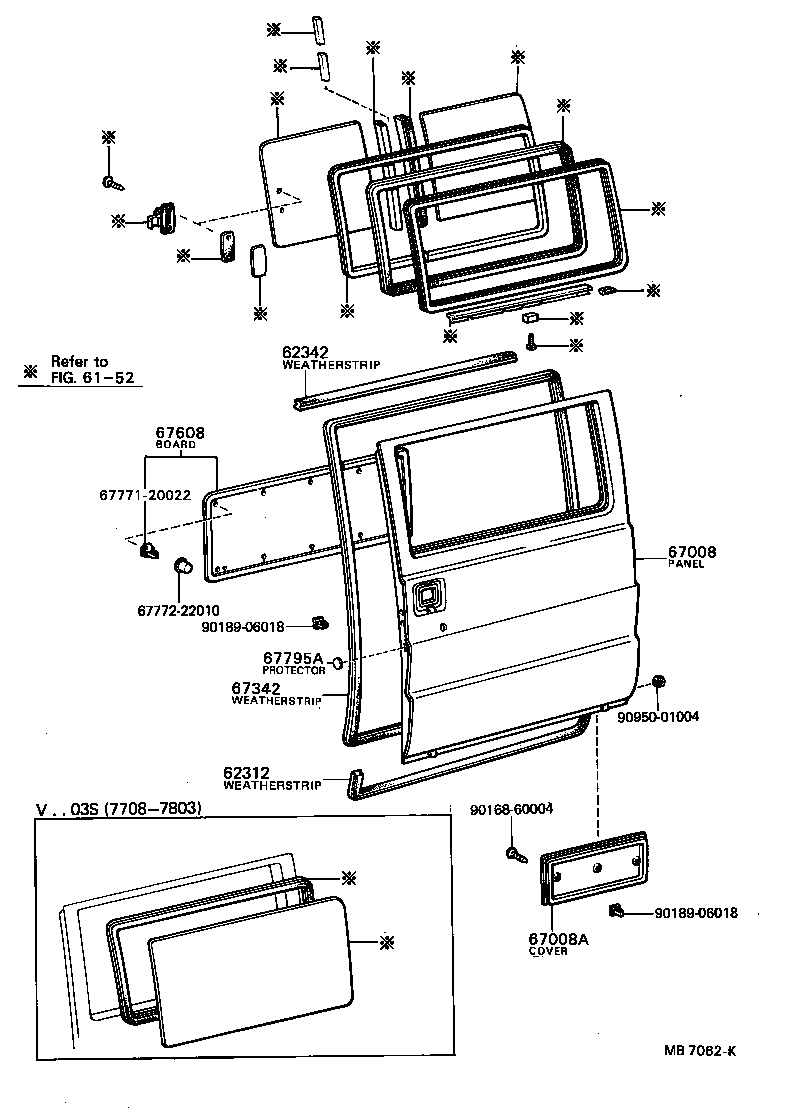

Click highlighted areas on diagram

diagram 6152 62312 62342 67008 67008A 67342 67608 6777120022 6777222010 67795A 9016860004 9018906018 9018906018 9095001004
Part # Description Qty Price
62312 - WEATHERSTRIP, DOOR OPENING TRIM, LOWER LH
62345-95A02

BU20,22..V

 1
62342 - WEATHERSTRIP, DOOR OPENING, UPPER LH
62343-95A00

BU20,22..V

 1
67008 - PANEL SUB-ASSY, SLIDE DOOR, LH
67004-92605

BU20,22..V

 1
67008A - COVER SUB-ASSY, SLIDE DOOR PANEL LOWER, LH
67406-95A00

BU20,22..V

 2
67342 - WEATHERSTRIP, SLIDE DOOR, LH
62342-95A00

BU20,22..V

 1
67608 - BOARD SUB-ASSY, SLIDE DOOR TRIM, LH
67640-95A0106

BU20..V

BROWN,BROWN

 1
Common parts
67771-20022
67772-22010
90168-60004
90189-06018
90950-01004
Linked diagrams
6152
