BU20-QRDT3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7708- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31305B 31305C 31321 31324 31324A 31453A 31453B 31481 9046110276 9046816142 9161140816 9161140816 9161140816 9165140816 9411041000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-36060

BU2#,30,31,32,33,34

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35005

BU2#,3#,4#,5#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BU2#,3#,4#,5#

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU2#,3#,4#,5#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU2#,3#,4#,5#

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-40832

BU20..M50;BU30..20T;BU30..06S;BU2#..KKT,TSK;BU20..BTP..DSL;BU20..TB..H50..20T

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55105-95405

BU25,35;BU20..M50;BU30..20T;BU30..06S;BU20..KKT,TSK;BU20..BTP..DSL;BU20..TB..H50..20T

W/O EXHAUST BRAKE

 1
55105-95407

BU2#,30..H50;BU20..T3..03S..WT..ATP

W/EXHAUST BRAKE

 1
31305B - BRACKET SUB-ASSY, CLUTCH PEDAL, UPPER
55104-95400

BU2#,3#,40,41,5#

 1
31305C - RETAINER SUB-ASSY, CLUTCH PEDAL BRACKET, LOWER
55097-95401

BU20,21,25,30,31,32,35,36,40,45,50

 1
31321 - PAD, CLUTCH PEDAL
31321-36010

BU2#,3#,4#,5#

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

BU2#,3#,4#,5#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BU2#,3#,4#,5#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

BU2#,3#,4#,5#

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BU2#,3#,4#,5#

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36150

BU2#,30,31

 1
Common parts
90461-10276
90468-16142
91611-40816
91651-40816
94110-41000
94120-40800
94512-01000

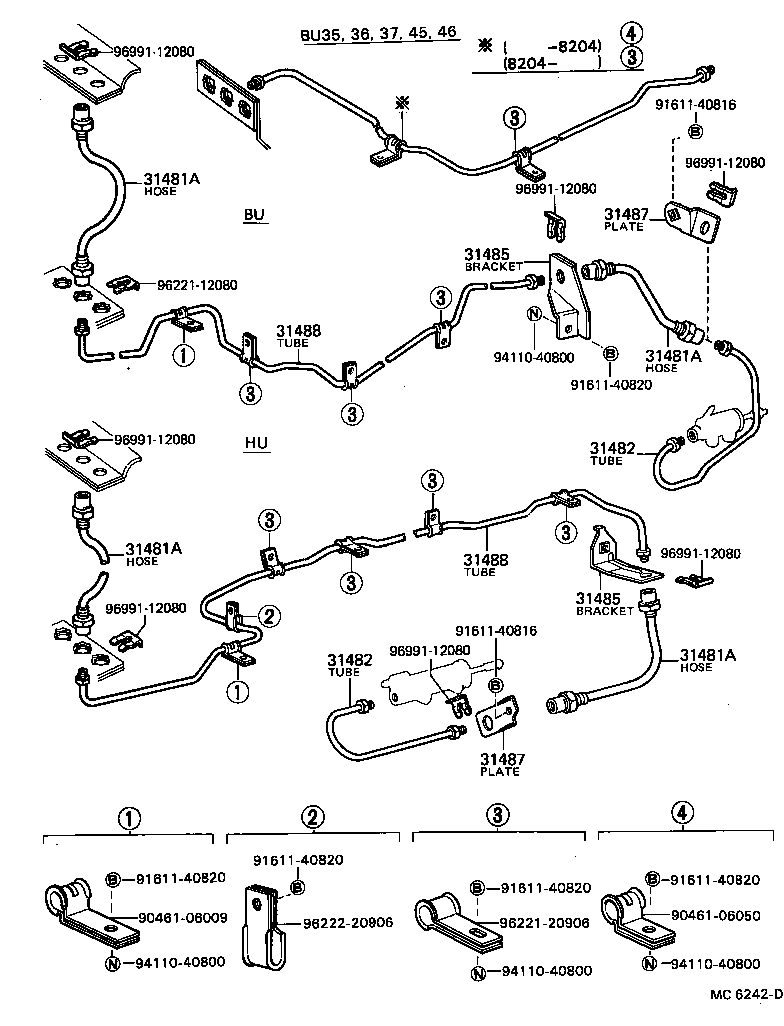

ILLUST NO. 2 OF 2(7708- )BU2#,3#,45,46

Click highlighted areas on diagram

diagram 31481A 31481A 31481A 31481A 31482 31482 31485 31485 31487 31487 31488 31488 9046106009 9046106050 9161140816 9161140816 9161140820 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800 9622112080 9622120906 9622220906 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
96932-31343

BU2#,30

RR

 1
96932-31223

BU2#,30

FR

 1
31481A - HOSE, CLUTCH, NO.1
96932-31343

BU2#,30

RR

 1
96932-31223

BU2#,30

FR

 1
31481A - HOSE, CLUTCH, NO.1
96932-31343

BU2#,30

RR

 1
96932-31223

BU2#,30

FR

 1
31481A - HOSE, CLUTCH, NO.1
96932-31343

BU2#,30

RR

 1
96932-31223

BU2#,30

FR

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36060

BU2#,3#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36060

BU2#,3#

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-36020

BU2#,3#,45,46

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-36020

BU2#,3#,45,46

 1
31487 - PLATE, RELEASE TUBE SET
31487-36050

BU2#,3#

 1
31487 - PLATE, RELEASE TUBE SET
31487-36050

BU2#,3#

 1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-36050

BU2#,30,31,32,33,34

 1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-36050

BU2#,30,31,32,33,34

 1
Common parts
90461-06009
90461-06050
91611-40816
91611-40820
94110-40800
96221-12080
96221-20906
96222-20906
96991-12080
