BU20-QRDT (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU20,21,22,23..T3..TB

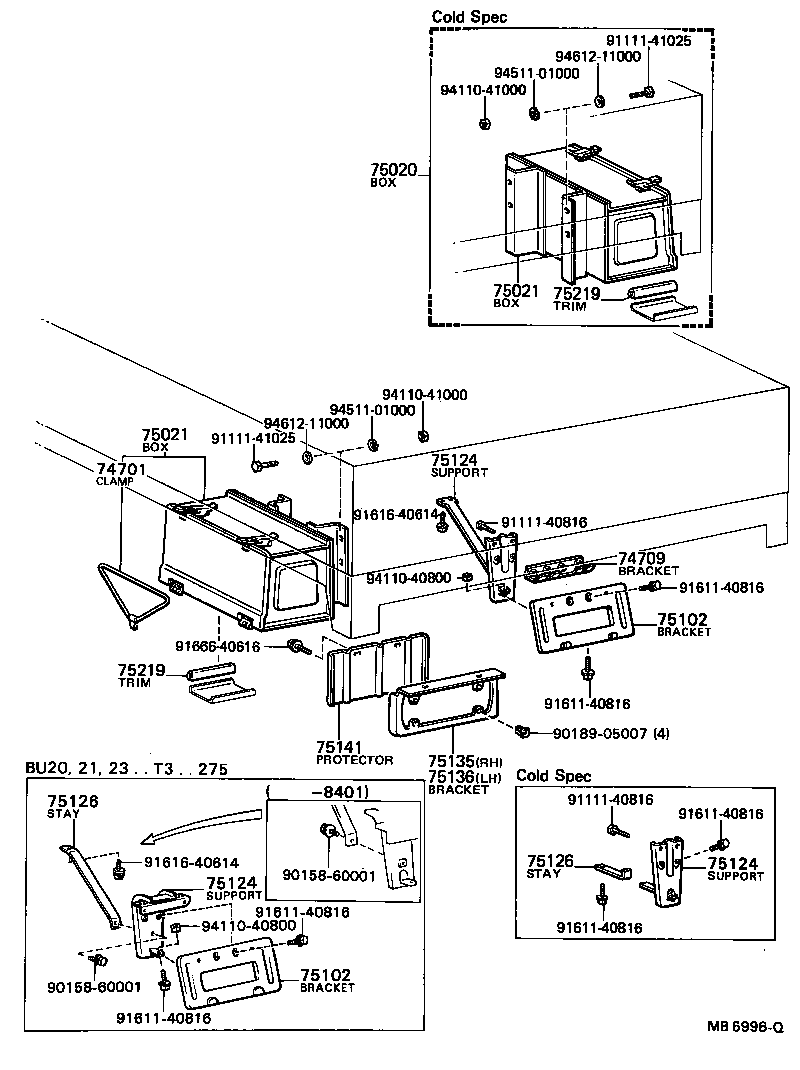

Click highlighted areas on diagram

diagram 74701 74709 75020 75021 75021 75102 75102 75124 75124 75124 75126 75126 75135 75136 75141 75219 75219 9015860001 9015860001 9018905007 9111140816 9111140816 9111141025 9111141025 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161640614 9161640614 9166640616 9411040800 9411040800 9411041000 9411041000 9451101000 9451101000 9461211000 9461211000
Part # Description Qty Price
74701 - CLAMP SUB-ASSY, TOOL BAG
74701-95601

BU20,21,22,23,3#,40,41..TB,TS

 2
74709 - BRACKET SUB-ASSY, LICENSE LAMP
66408-92700

BU20,21,22,23..T3..TB

 1
75021 - BOX SUB-ASSY, TOOL
75210-92725

BU20..T3..WT

 1
75021 - BOX SUB-ASSY, TOOL
75210-92725

BU20..T3..WT

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU20,21,22,23..T2,T3,TW2

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU20,21,22,23..T2,T3,TW2

 1
75124 - SUPPORT, REAR LICENSE BRACKET
66490-92720

BU20,21,22,23..T3..WT..20T

 1
75124 - SUPPORT, REAR LICENSE BRACKET
66490-92720

BU20,21,22,23..T3..WT..20T

 1
75124 - SUPPORT, REAR LICENSE BRACKET
66490-92720

BU20,21,22,23..T3..WT..20T

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
65208-92704

BU30..TB;BU20,31,35,36..T2,T3,TW2

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
65208-92704

BU30..TB;BU20,31,35,36..T2,T3,TW2

 1
75141 - PROTECTOR, REAR COMBINATION LAMP
66231-92700

BU20,21,22,23..T3..TB..20T

 2
Common parts
90158-60001
90189-05007
91111-40816
91111-41025
91611-40816
91616-40614
91666-40616
94110-40800
94110-41000
94511-01000
94612-11000
