BU20-QRD3 (1977)
Toyota Dyna

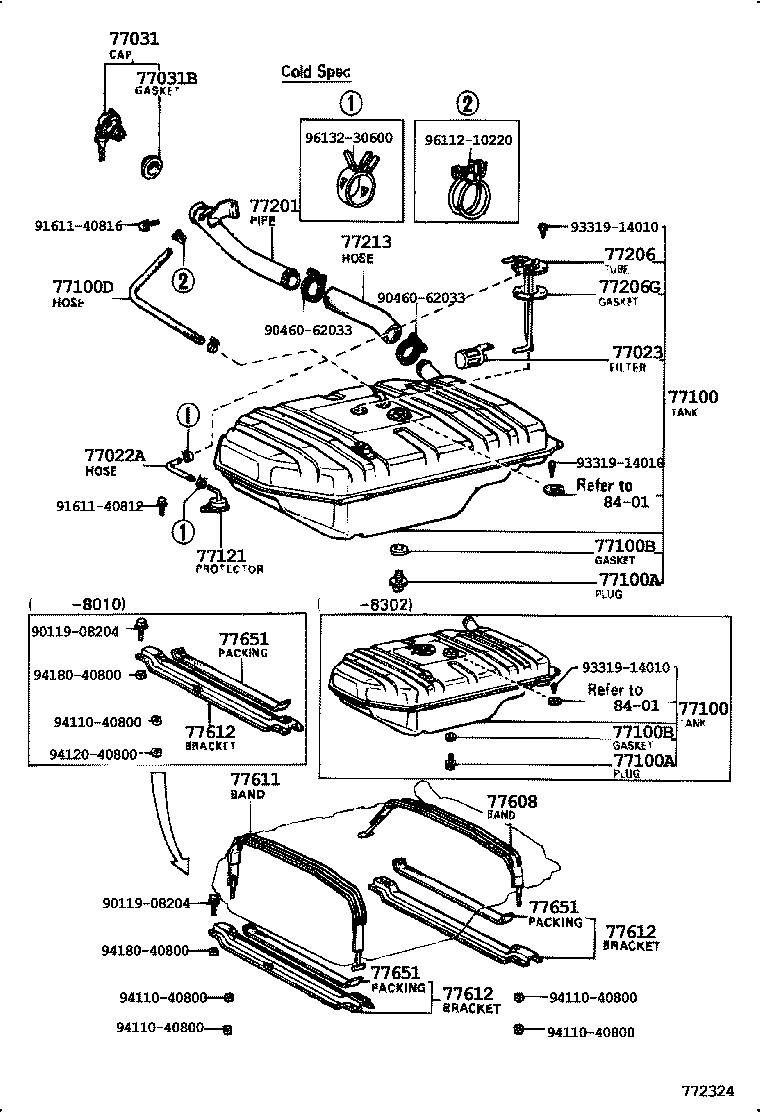

ILLUST NO. 1 OF 2(7708- )BU20,22..TB..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
BU25,30;BU20..H50;BU20..T3..M50 *H,L=280,内径=7.6 |
2 | ||
| 95331-06034 |
BU2#,30 *H,L=340 |
1 | ||
| 77209-36070 |
BU20,22..TB..ST L=180,TANK=70LITTER,COLD SPEC |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-95401 |
BU2#,3#,4#,50 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12031 |
BU2#,3#,4#,5# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36280 |
BU20..T3 |
1 | ||
| 77001-36270 |
BU20..V |
1 | ||
| 77001-36310 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36280 |
BU20..T3 |
1 | ||
| 77001-36270 |
BU20..V |
1 | ||
| 77001-36310 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BU2#,3#,4# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BU2#,3#,4# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU2#,3#,4#,5# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU2#,3#,4#,5# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22008 |
BU20,22..TB..ST 長さ=760,TANK=70LITTER,COLD SPEC |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BU2#,3#,4#,5# |
1 | ||
| 77258-27010 |
BU20,22..TB..ST TANK=70LITTER,COLD SPEC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-36110 |
BU20,22..TB..ST TANK=70LITTER,COLD SPEC |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-36050 |
BU20,22..TB..ST TANK=70LITTER,COLD SPEC |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-36060 |
BU20..TB..ST TANK=60LITTER,COLD SPEC |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36080 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
2 | ||
| 77601-36051 |
BU20..H50;BU20..T3..M50;BU25,30..02S,03S |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77633-36090 |
BU20,22..DTP;BU20,22..T3..ST |
2 | ||
| 77633-36100 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77633-36100 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
2 | ||
| 77633-36090 |
BU20,22..DTP;BU20,22..T3..ST |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77633-36100 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
2 | ||
| 77633-36090 |
BU20,22..DTP;BU20,22..T3..ST |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36050 |
BU30..T3;BU20..DTP;BU20..T3..M50;BU2#,31,35,36,4#,50..H50 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36050 |
BU30..T3;BU20..DTP;BU20..T3..M50;BU2#,31,35,36,4#,50..H50 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36050 |
BU30..T3;BU20..DTP;BU20..T3..M50;BU2#,31,35,36,4#,50..H50 |
2 | ||
| Common parts | ||||
| 90119-08204 | ||||
| 90460-62033 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94180-40800 | ||||
| 96112-10220 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(7708-8302)BU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36520 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
1 | ||
| 77251-36380 |
BU20..T3..ST |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36520 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
1 | ||
| 77251-36380 |
BU20..T3..ST |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36520 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
1 | ||
| 77251-36380 |
BU20..T3..ST |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36520 |
BU20..TB..ST TANK=70LITTER,COLD SPEC |
1 | ||
| 77251-36380 |
BU20..T3..ST |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08024 |
BU20,30 *H,L=240,内径=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,内径=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08024 |
BU20,30 *H,L=240,内径=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,内径=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08024 |
BU20,30 *H,L=240,内径=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,内径=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08024 |
BU20,30 *H,L=240,内径=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08100 |
BU20..TB..ST *H,L=850,内径=7.6,TANK=70LITTER,COLD SPEC |
1 | ||
| 95337-08040 |
BU20..T3..ST *H,L=320,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08100 |
BU20..TB..ST *H,L=850,内径=7.6,TANK=70LITTER,COLD SPEC |
1 | ||
| 95337-08040 |
BU20..T3..ST *H,L=320,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08100 |
BU20..TB..ST *H,L=850,内径=7.6,TANK=70LITTER,COLD SPEC |
1 | ||
| 95337-08040 |
BU20..T3..ST *H,L=320,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08100 |
BU20..TB..ST *H,L=850,内径=7.6,TANK=70LITTER,COLD SPEC |
1 | ||
| 95337-08040 |
BU20..T3..ST *H,L=320,内径=7.6 |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36020 |
BU30;BU20..ST;BU20..T2;BU20..BTP,CTP |
1 | ||
| Common parts | ||||
| 90179-08001 | ||||
| 90461-08422 | ||||
| 90461-08557 | ||||
| 90461-10874 | ||||
| 90480-30207 | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||
| 93590-16020 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 96132-30800 | ||||
| 96221-20908 | ||||
