BU20-QRD3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )V

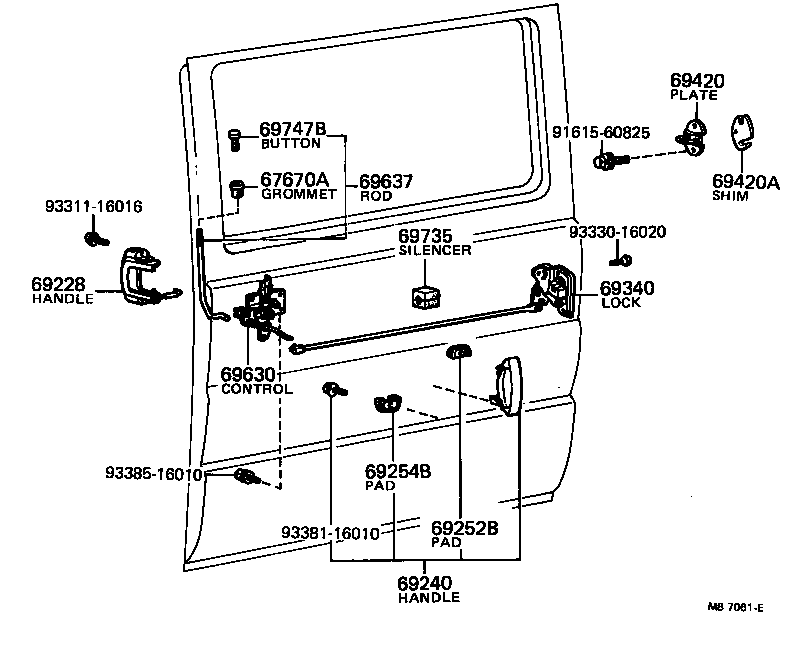

Click highlighted areas on diagram

diagram 67670A 69228 69240 69252B 69254B 69340 69420 69420A 69630 69637 69735 69747B 9161560825 9331116016 9333016020 9338116010 9338516010
Part # Description Qty Price
69228 - HANDLE, REAR DOOR INSIDE, LH
69740-95A00

BU20..V

 1
69740-95A02

BU20..V

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-95A90

BU20,22..V

 1
69252B - PAD, REAR DOOR OUTSIDE HANDLE, NO.1 LH
69246-95A00

BU20,22..V

 1
69254B - PAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH
69247-95A00

BU20,22..V

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-95A02

BU20,22..V

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69470-95A01

BU20,22..V

 1
69420A - SHIM, REAR DOOR LOCK STRIKER PLATE
69474-95A00

BU20,22..V

 1
69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE
69640-95A00

BU20,22..V

 1
69637 - ROD, SLIDE DOOR INSIDE HANDLE LOCK REMOTE CONTROL
69704-95A00

BU20,22..V

 1
69735 - SILENCER, REAR DOOR LOCK LINK
69388-95660

BU20..V

 1
Common parts
91615-60825
93311-16016
93330-16020
93381-16010
93385-16010
