BU20-QRD3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

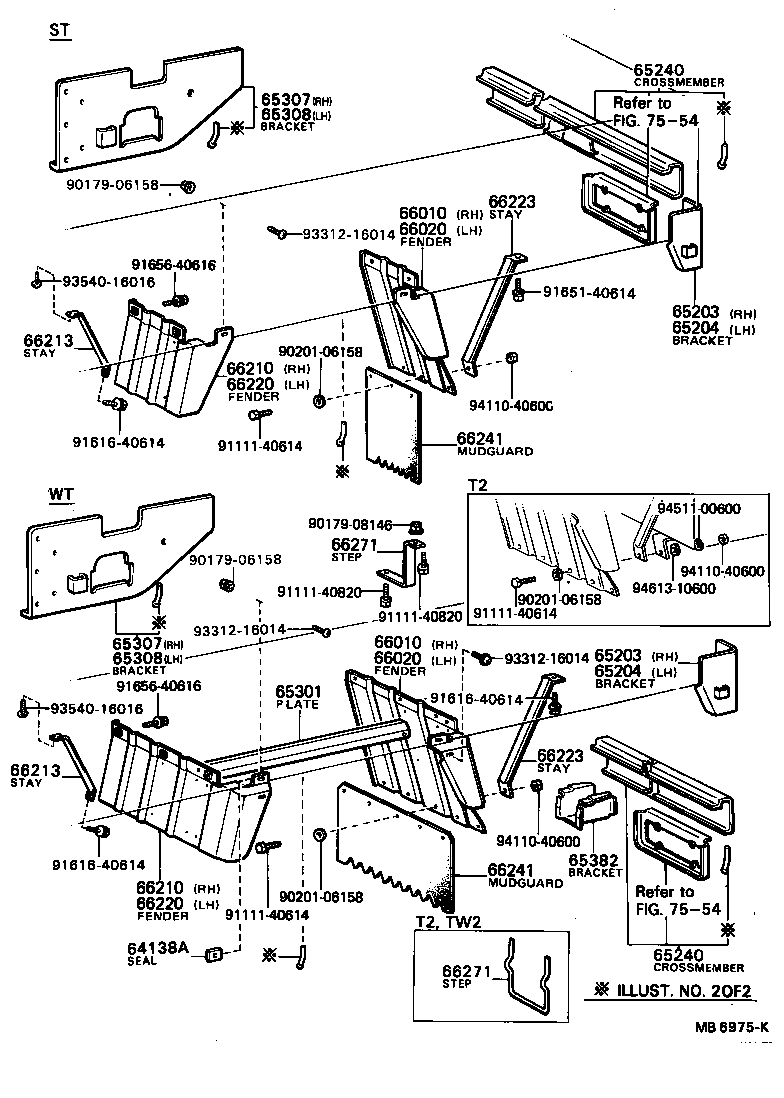

ILLUST NO. 1 OF 2(7708- )BU20,21,22,23..TB

Click highlighted areas on diagram

diagram 64138A 65203 65203 65204 65204 65240 65240 65301 65307 65307 65308 65308 65382 66010 66010 66020 66020 66210 66210 66213 66213 66220 66220 66223 66223 66241 66241 66271 66271 7554 7554 9017906158 9017906158 9017908146 9020106158 9020106158 9020106158 9111140614 9111140614 9111140614 9111140820 9111140820 9161640614 9161640614 9161640614 9165140614 9165640616 9165640616 9331216014 9331216014 9331216014 9354016016 9354016016 9411040600 9411040600 9411040600 9451100600 9461310600
Part # Description Qty Price
65203 - BRACKET SUB-ASSY, GATE BUMPER, RH
65203-92701

BU20..TB..20T

 1
65203 - BRACKET SUB-ASSY, GATE BUMPER, RH
65203-92701

BU20..TB..20T

 1
65204 - BRACKET SUB-ASSY, GATE BUMPER, LH
65204-92701

BU20..TB..20T

 1
65204 - BRACKET SUB-ASSY, GATE BUMPER, LH
65204-92701

BU20..TB..20T

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66203-92701

BU20,30..TB..ST

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66203-92701

BU20,30..TB..ST

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66204-92701

BU20,30..TB..ST

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66204-92701

BU20,30..TB..ST

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-92702

BU20,22,30..TB..ST

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-92702

BU20,22,30..TB..ST

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-92702

BU20,22,30..TB..ST

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-92702

BU20,22,30..TB..ST

 1
66223 - STAY, REAR FENDER REAR PLATE
66217-92703

BU20..TB..ST

 2
66223 - STAY, REAR FENDER REAR PLATE
66217-92703

BU20..TB..ST

 2
66241 - MUDGUARD, REAR
66241-92700

BU20,30..TB..ST

 2
66241 - MUDGUARD, REAR
66241-92700

BU20,30..TB..ST

 2
Common parts
90179-06158
90179-08146
90201-06158
91111-40614
91111-40820
91616-40614
91651-40614
91656-40616
93312-16014
93540-16016
94110-40600
94511-00600
94613-10600
Linked diagrams
7554
