BU20-QRD3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(7708- )DM1,DM3,DM4,TB,TS

Click highlighted areas on diagram

diagram 51770 51770 51780 51780 53701 53702 53801C 53801H 53802C 53825 5382695400 57101 57102 57109A 57613 57614 58011 58012 58211 58211 58212 58213 58215 58223A 58224A 58241A 58242A 58243 58244 58247 58277 58278 6413895400 75251 75251 75252 75252 9015950062 9017906115 9038607006 9038608008 9046708008 9095001008 9095001056 9111141014 9165140616 9165540625 9165640616 9165640616 9165640616 9166640620 9328016010 9331256014 9411040600
Part # Description Qty Price
51770 - STEP ASSY, FRONT, RH
51707-95401

BU20..M50;BU20..FTP;BU20..TR..H50;BU20..KKT,TSK;BU21,22,23,3#,4#,5#

COLD SPEC

 1
51707-95400

BU2#,3#,4#,5#

 1
51770 - STEP ASSY, FRONT, RH
51707-95401

BU20..M50;BU20..FTP;BU20..TR..H50;BU20..KKT,TSK;BU21,22,23,3#,4#,5#

COLD SPEC

 1
51707-95400

BU2#,3#,4#,5#

 1
51780 - STEP ASSY, FRONT, LH
51708-95400

BU2#,3#,4#,5#

 1
51708-95401

BU20..M50;BU20..FTP;BU20..TR..H50;BU20..KKT,TSK;BU21,22,23,3#,4#,5#

COLD SPEC

 1
51780 - STEP ASSY, FRONT, LH
51708-95400

BU2#,3#,4#,5#

 1
51708-95401

BU20..M50;BU20..FTP;BU20..TR..H50;BU20..KKT,TSK;BU21,22,23,3#,4#,5#

COLD SPEC

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53711-95407

BU2#,30

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53712-95411

BU2#,30

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-95400

BU2#,30,31,32,33,34

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-95400

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 1
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58221-95404

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,3#,4#,5#..02S,03S

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58222-95404

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,3#,4#,5#..02S,03S

 1
58211 - PANEL, FRONT FLOOR
58211-95436

BU20..DTP;BU20..03S..WT;BU25,30,31..03S;BU20..03S..ST..20T

 1
58211 - PANEL, FRONT FLOOR
58211-95436

BU20..DTP;BU20..03S..WT;BU25,30,31..03S;BU20..03S..ST..20T

 1
58212 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58227-95401

BU2#,3#,4#,5#

 1
58213 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58228-95401

BU2#,3#,4#,5#

 1
58215 - REINFORCEMENT, FRONT FLOOR, FRONT
57103-95400

BU2#,3#

 1
58241A - GUSSET, FLOOR PANEL, FRONT RH
58241-95400

BU2#,30,31,33,34

 1
58242A - GUSSET, FLOOR PANEL, FRONT LH
58242-95400

BU2#,3#,4#,50

 1
58243 - PANEL, REAR FLOOR SIDE, RH
58243-95411

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
58244 - PANEL, REAR FLOOR SIDE, LH
58244-95407

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 1
75251 - COVER, STEP PLATE FRONT, RH
75251-95401

BU2#,3#,4#,5#

 1
75251-95402

BU2#,3#,4#,5#

COLD SPEC OR CUSTOM PACK SPEC

 1
75251 - COVER, STEP PLATE FRONT, RH
75251-95401

BU2#,3#,4#,5#

 1
75251-95402

BU2#,3#,4#,5#

COLD SPEC OR CUSTOM PACK SPEC

 1
75252 - COVER, STEP PLATE FRONT, LH
75252-95400

BU2#,3#,4#,5#

 1
75252-95401

BU2#,3#,4#,5#

COLD SPEC OR CUSTOM PACK SPEC

 1
75252 - COVER, STEP PLATE FRONT, LH
75252-95400

BU2#,3#,4#,5#

 1
75252-95401

BU2#,3#,4#,5#

COLD SPEC OR CUSTOM PACK SPEC

 1
Common parts
53826-95400
64138-95400
90159-50062
90179-06115
90386-07006
90386-08008
90467-08008
90950-01008
90950-01056
91111-41014
91651-40616
91655-40625
91656-40616
91666-40620
93280-16010
93312-56014
94110-40600

ILLUST NO. 3 OF 3(7708- )DM1,DM3,DM4,TB,TS

Click highlighted areas on diagram

diagram 58213A 58214A 58286 58307B 58410 58410 58410 58424 58424 58424 58424A 58424A 58424B 58424B 58430 58430 58432 58432 58445A 58445A 58445A 58805 58805 58805 58805A 58805A 58932 58935 58936 8461110800 9046815021 9054109126 9054109126 9095001186 9165540616 9165540616 9165660825 9165660825 9324016016 9324016016 9324016016 9327056014 9331515014 9331515014 9331515014
Part # Description Qty Price
58213A - PANEL, SEAT FLOOR, RH
58201-95400

BU20..DTP;BU20..03S..WT;BU22..03S..IV3;BU20..03S..ST..20T;BU22..03S..20T..CBU;BU21,23,25,30,31,32,33,34..03S

 1
58214A - PANEL, SEAT FLOOR, LH
58214-95406

BU35,36,37,4#,5#

 1
58214-95404

BU2#,30,31,32,33,34..5H

 1
58410 - COVER, ENGINE SERVICE HOLE
58403-95408

BU2#,30..5H

 1
58410 - COVER, ENGINE SERVICE HOLE
58403-95408

BU2#,30..5H

 1
58410 - COVER, ENGINE SERVICE HOLE
58403-95408

BU2#,30..5H

 1
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58435-95405

BU2#,3#,4#,5#..03S,06S,09S

 1
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58435-95405

BU2#,3#,4#,5#..03S,06S,09S

 1
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58435-95405

BU2#,3#,4#,5#..03S,06S,09S

 1
58445A - CUSHION, ENGINE SERVICE HOLE COVER
58445-95400

BU2#,3#,4#,5#

 3
58445A - CUSHION, ENGINE SERVICE HOLE COVER
58445-95400

BU2#,3#,4#,5#

 3
58445A - CUSHION, ENGINE SERVICE HOLE COVER
58445-95400

BU2#,3#,4#,5#

 3
58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER
71901-95407

BU2#,3#

 2
58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER
71901-95407

BU2#,3#

 2
58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER
71901-95407

BU2#,3#

 2
58805A - SPACER, ENGINE COVER CATCH
71919-95400

BU2#,30

 2
58805A - SPACER, ENGINE COVER CATCH
71919-95400

BU2#,30

 2
Common parts
84611-10800
90468-15021
90541-09126
90950-01186
91655-40616
91656-60825
93240-16016
93270-56014
93315-15014

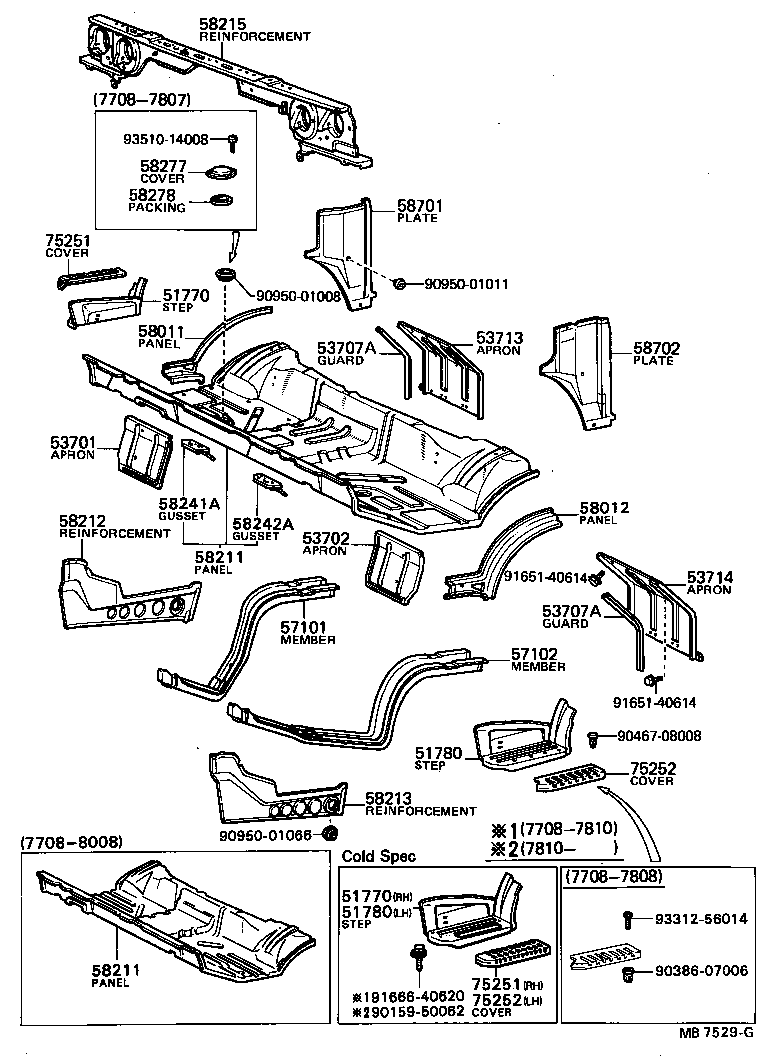

ILLUST NO. 1 OF 2(7708- )V

Click highlighted areas on diagram

diagram 51770 51770 51780 51780 53701 53702 53707A 53707A 53713 53714 57101 57102 58011 58012 58211 58211 58212 58213 58215 58241A 58242A 58277 58278 58701 58702 75251 75251 75252 75252 9015950062 9038607006 9046708008 9095001008 9095001011 9095001066 9165140614 9165140614 9166640620 9331256014 9351014008
Part # Description Qty Price
51770 - STEP ASSY, FRONT, RH
51707-95401

BU20..M50;BU20..FTP;BU20..TR..H50;BU20..KKT,TSK;BU21,22,23,3#,4#,5#

COLD SPEC

 1
51707-95400

BU2#,3#,4#,5#

 1
51770 - STEP ASSY, FRONT, RH
51707-95401

BU20..M50;BU20..FTP;BU20..TR..H50;BU20..KKT,TSK;BU21,22,23,3#,4#,5#

COLD SPEC

 1
51707-95400

BU2#,3#,4#,5#

 1
51780 - STEP ASSY, FRONT, LH
51708-95400

BU2#,3#,4#,5#

 1
51708-95401

BU20..M50;BU20..FTP;BU20..TR..H50;BU20..KKT,TSK;BU21,22,23,3#,4#,5#

COLD SPEC

 1
51780 - STEP ASSY, FRONT, LH
51708-95400

BU2#,3#,4#,5#

 1
51708-95401

BU20..M50;BU20..FTP;BU20..TR..H50;BU20..KKT,TSK;BU21,22,23,3#,4#,5#

COLD SPEC

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53711-95407

BU2#,30

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53712-95411

BU2#,30

 1
53707A - GUARD, APRON FENDER SIDE
53722-92605

BU20,22..V

 2
53707A - GUARD, APRON FENDER SIDE
53722-92605

BU20,22..V

 2
53713 - APRON, FENDER SIDE, RH
53707-92605

BU20..V

 1
53714 - APRON, FENDER SIDE, LH
53708-92605

BU20..V

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-95400

BU2#,30,31,32,33,34

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-95400

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 1
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58221-95404

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,3#,4#,5#..02S,03S

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58222-95404

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,3#,4#,5#..02S,03S

 1
58211 - PANEL, FRONT FLOOR
58211-95436

BU20..DTP;BU20..03S..WT;BU25,30,31..03S;BU20..03S..ST..20T

 1
58211 - PANEL, FRONT FLOOR
58211-95436

BU20..DTP;BU20..03S..WT;BU25,30,31..03S;BU20..03S..ST..20T

 1
58212 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58227-95401

BU2#,3#,4#,5#

 1
58213 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58228-95401

BU2#,3#,4#,5#

 1
58215 - REINFORCEMENT, FRONT FLOOR, FRONT
57103-95400

BU2#,3#

 1
58241A - GUSSET, FLOOR PANEL, FRONT RH
58241-95400

BU2#,30,31,33,34

 1
58242A - GUSSET, FLOOR PANEL, FRONT LH
58242-95400

BU2#,3#,4#,50

 1
58701 - PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, RH
58243-92605

BU20,22..V

 1
58702 - PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, LH
58244-92605

BU20,22..V

 1
75251 - COVER, STEP PLATE FRONT, RH
75251-95401

BU2#,3#,4#,5#

 1
75251-95402

BU2#,3#,4#,5#

COLD SPEC OR CUSTOM PACK SPEC

 1
75251 - COVER, STEP PLATE FRONT, RH
75251-95401

BU2#,3#,4#,5#

 1
75251-95402

BU2#,3#,4#,5#

COLD SPEC OR CUSTOM PACK SPEC

 1
75252 - COVER, STEP PLATE FRONT, LH
75252-95400

BU2#,3#,4#,5#

 1
75252-95401

BU2#,3#,4#,5#

COLD SPEC OR CUSTOM PACK SPEC

 1
75252 - COVER, STEP PLATE FRONT, LH
75252-95400

BU2#,3#,4#,5#

 1
75252-95401

BU2#,3#,4#,5#

COLD SPEC OR CUSTOM PACK SPEC

 1
Common parts
90159-50062
90386-07006
90467-08008
90950-01008
90950-01011
90950-01066
91651-40614
91666-40620
93312-56014
93510-14008

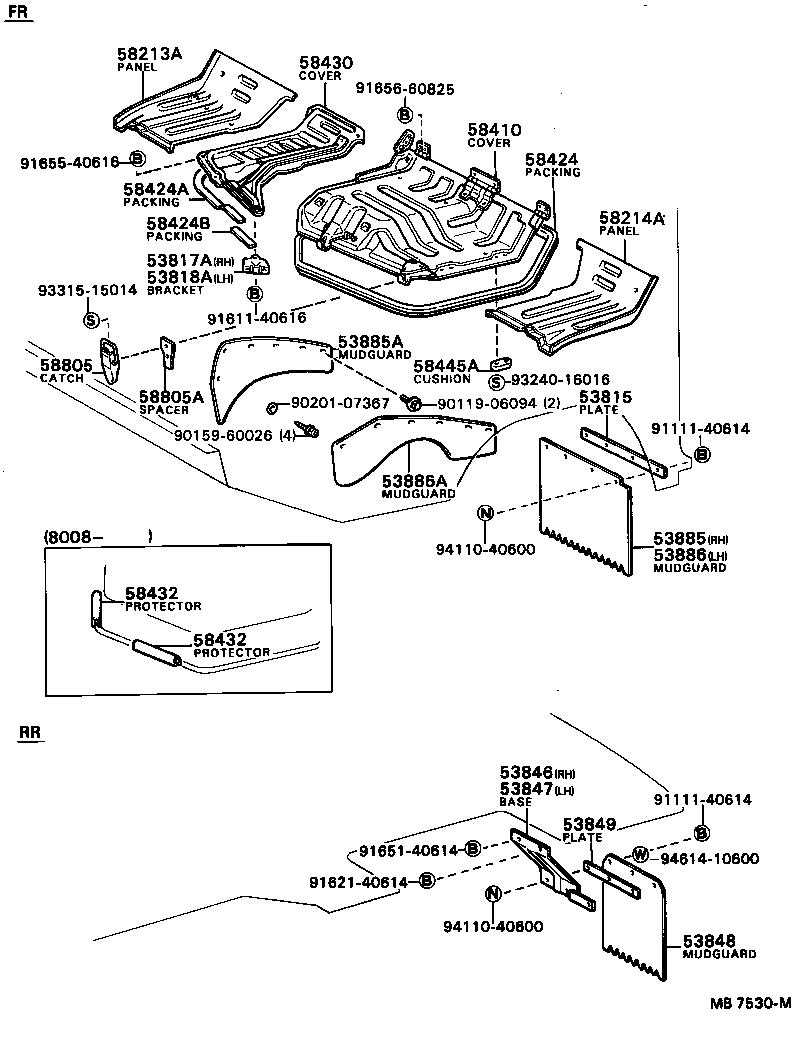

ILLUST NO. 2 OF 2(7708- )V

Click highlighted areas on diagram

diagram 53815 53817A 53818A 53846 53847 53848 53849 53885 53885A 53886 53886A 58213A 58214A 58410 58424 58424A 58424B 58430 58432 58432 58445A 58805 58805A 9011906094 9015960026 9020107367 9111140614 9111140614 9161140616 9162140614 9165140614 9165540616 9165660825 9324016016 9331515014 9411040600 9411040600 9461410600
Part # Description Qty Price
53815 - PLATE, MUDGUARD RUBBER SET, FRONT
53814-95403

BU20,30..(DMP,TR)..(02S,03S)

 2
53814-92605

BU20,22..V

 2
53817A - BRACKET, FRONT SIDE MUDGUARD, RH
53817-95400

BU2#,30,31,32,33,34,35,36

 1
53818A - BRACKET, FRONT SIDE MUDGUARD, LH
53818-95400

BU2#,30,31,32,33,34,35,36

 1
53846 - BASE, MUDGUARD RUBBER, REAR RH
66203-92605

BU20,22..V

 1
53847 - BASE, MUDGUARD RUBBER, REAR LH
66204-92605

BU20,22..V

 1
53848 - MUDGUARD, FENDER, REAR
66241-92310

BU20..V

 2
53849 - PLATE, MUDGUARD RUBBER SET, REAR
66224-92605

BU20,22..V

 2
53885 - MUDGUARD, FRONT RH
53885-95401

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
53885-92605

BU20,22..V

 1
53885A - MUDGUARD, FRONT SIDE, RH
53861-95402

BU2#,30,31,32,33,34

 1
53886 - MUDGUARD, FRONT LH
53885-95401

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
53885-92605

BU20,22..V

 1
53886A - MUDGUARD, FRONT SIDE, LH
53862-95401

BU20..V;BU22..HRF,SRF,T1,T2,T3;BU25,30,31,32,33,34..02S,03S;BU20,21,22,23..BTP,CTP,DTP,FTP;BU20,21,23..(DM3,TB,TS)..(20T,275)

 1
58213A - PANEL, SEAT FLOOR, RH
58201-95400

BU20..DTP;BU20..03S..WT;BU22..03S..IV3;BU20..03S..ST..20T;BU22..03S..20T..CBU;BU21,23,25,30,31,32,33,34..03S

 1
58214A - PANEL, SEAT FLOOR, LH
58214-95406

BU35,36,37,4#,5#

 1
58214-95404

BU2#,30,31,32,33,34..5H

 1
58410 - COVER, ENGINE SERVICE HOLE
58403-95408

BU2#,30..5H

 1
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58435-95405

BU2#,3#,4#,5#..03S,06S,09S

 1
58445A - CUSHION, ENGINE SERVICE HOLE COVER
58445-95400

BU2#,3#,4#,5#

 3
58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER
71901-95407

BU2#,3#

 2
58805A - SPACER, ENGINE COVER CATCH
71919-95400

BU2#,30

 2
Common parts
90119-06094
90159-60026
90201-07367
91111-40614
91611-40616
91621-40614
91651-40614
91655-40616
91656-60825
93240-16016
93315-15014
94110-40600
94614-10600

ILLUST NO. 1 OF 3(7708- )DM1,DM3,DM4,TB,TS

Click highlighted areas on diagram

diagram 53704 53704 53704A 53713 53714 53719 53719 53815 53815 53817A 53818A 53883A 53883A 53885 53885 53885A 53886 53886 53886A 5752795400 9011906094 9011906094 9011906094 9011906094 9015960026 9020112001 9048016011 9151140616 9151140616 9161140616 9165140820 9165540616 9411040800
Part # Description Qty Price
53704 - APRON SUB-ASSY, FENDER, LOWER
53905-95402

BU20..WT;BU20..ST..20T;BU25,30..02S,03S

RH

 1
53906-95400

BU20..WT;BU20..ST..20T;BU25,30..02S,03S

LH

 1
53704 - APRON SUB-ASSY, FENDER, LOWER
53905-95402

BU20..WT;BU20..ST..20T;BU25,30..02S,03S

RH

 1
53906-95400

BU20..WT;BU20..ST..20T;BU25,30..02S,03S

LH

 1
53713 - APRON, FENDER SIDE, RH
53707-92605

BU20..V

 1
53714 - APRON, FENDER SIDE, LH
53708-92605

BU20..V

 1
53719 - STAY, FENDER APRON SIDE, LOWER
53719-95400

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 2
53719 - STAY, FENDER APRON SIDE, LOWER
53719-95400

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 2
53815 - PLATE, MUDGUARD RUBBER SET, FRONT
53814-95403

BU20,30..(DMP,TR)..(02S,03S)

 2
53814-92605

BU20,22..V

 2
53815 - PLATE, MUDGUARD RUBBER SET, FRONT
53814-95403

BU20,30..(DMP,TR)..(02S,03S)

 2
53814-92605

BU20,22..V

 2
53817A - BRACKET, FRONT SIDE MUDGUARD, RH
53817-95400

BU2#,30,31,32,33,34,35,36

 1
53818A - BRACKET, FRONT SIDE MUDGUARD, LH
53818-95400

BU2#,30,31,32,33,34,35,36

 1
53883A - PACKING, FRONT MUDGUARD, UPPER
53883-95402

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 2
53883A - PACKING, FRONT MUDGUARD, UPPER
53883-95402

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 2
53885 - MUDGUARD, FRONT RH
53885-95401

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
53885-92605

BU20,22..V

 1
53885 - MUDGUARD, FRONT RH
53885-95401

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
53885-92605

BU20,22..V

 1
53885A - MUDGUARD, FRONT SIDE, RH
53861-95402

BU2#,30,31,32,33,34

 1
53886 - MUDGUARD, FRONT LH
53885-95401

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
53885-92605

BU20,22..V

 1
53886 - MUDGUARD, FRONT LH
53885-95401

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
53885-92605

BU20,22..V

 1
53886A - MUDGUARD, FRONT SIDE, LH
53862-95401

BU20..V;BU22..HRF,SRF,T1,T2,T3;BU25,30,31,32,33,34..02S,03S;BU20,21,22,23..BTP,CTP,DTP,FTP;BU20,21,23..(DM3,TB,TS)..(20T,275)

 1
Common parts
57527-95400
90119-06094
90159-60026
90201-12001
90480-16011
91511-40616
91611-40616
91651-40820
91655-40616
94110-40800
