BU20-QR3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7708- )BU2#,30,31,32,33,34

Click highlighted areas on diagram

diagram 52107 52108 52151 52152 52153 66341 66341 66343 66343 66345 66345 9011712003 9011908108 9017908146 9020109368 9095001004 9112140865 9161140820 9161140825 9161140825 9161141025 9165140816 9165140816 9165141025 9166140840 9166961245 9166961250 9411040800 9411040800 9411040800 9411040800 9411041000 9411041000 9411551200 9411551200 9411551200 9412040800 9412541200 9412541200 9412541200 9461211001 9461410800 9461411200 9461411200 9461411200
Part # Description Qty Price
52151 - BUMPER ASSY, REAR
52151-95400

BU20,22,30..TR..ST

 1
52152 - BAR, REAR BUMPER, RH
52150-92605

BU20..V

 1
52153 - BAR, REAR BUMPER, LH
52160-92605

BU20..V

 1
66341 - WEIGHT, FRAME, REAR
52133-92605

BU20..T1,TW1

COLD SPEC,20KG

 1
52133-92605

BU20..V;BU20..TB..ST

COLD SPEC,20KG

 1
66341-92700

BU20..TS

 1
66341 - WEIGHT, FRAME, REAR
52133-92605

BU20..T1,TW1

COLD SPEC,20KG

 1
52133-92605

BU20..V;BU20..TB..ST

COLD SPEC,20KG

 1
66341-92700

BU20..TS

 1
66343 - GUSSET, FRAME REAR WEIGHT
66343-92700

BU20..V

COLD SPEC,LH

 1
66301-92605

BU20..V

COLD SPEC,RH

 1
66343-92700

BU20..TS

 2
66343 - GUSSET, FRAME REAR WEIGHT
66343-92700

BU20..V

COLD SPEC,LH

 1
66301-92605

BU20..V

COLD SPEC,RH

 1
66343-92700

BU20..TS

 2
Common parts
90117-12003
90119-08108
90179-08146
90201-09368
90950-01004
91121-40865
91611-40820
91611-40825
91611-41025
91651-40816
91651-41025
91661-40840
91669-61245
91669-61250
94110-40800
94110-41000
94115-51200
94120-40800
94125-41200
94612-11001
94614-10800
94614-11200

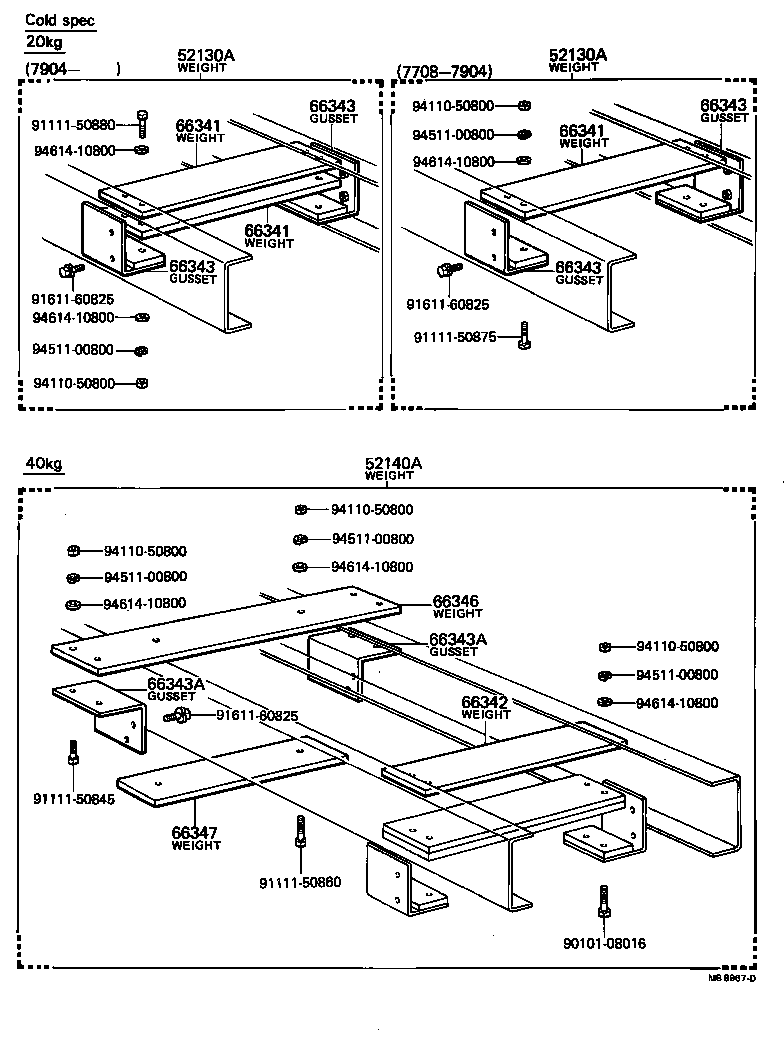

ILLUST NO. 2 OF 2(7811- )BU20,22..HRF,SRF,T1,TW1

Click highlighted areas on diagram

diagram 52130A 52130A 52140A 66341 66341 66341 66342 66343 66343 66343 66343 66343A 66343A 66346 66347 9010108016 9111150845 9111150860 9111150875 9111150880 9161160825 9161160825 9161160825 9411050800 9411050800 9411050800 9411050800 9411050800 9451100800 9451100800 9451100800 9451100800 9451100800 9461410800 9461410800 9461410800 9461410800 9461410800 9461410800
Part # Description Qty Price
66341 - WEIGHT, FRAME, REAR
52133-92605

BU20..T1,TW1

COLD SPEC,20KG

 1
52133-92605

BU20..V;BU20..TB..ST

COLD SPEC,20KG

 1
66341-92700

BU20..TS

 1
66341 - WEIGHT, FRAME, REAR
52133-92605

BU20..T1,TW1

COLD SPEC,20KG

 1
52133-92605

BU20..V;BU20..TB..ST

COLD SPEC,20KG

 1
66341-92700

BU20..TS

 1
66341 - WEIGHT, FRAME, REAR
52133-92605

BU20..T1,TW1

COLD SPEC,20KG

 1
52133-92605

BU20..V;BU20..TB..ST

COLD SPEC,20KG

 1
66341-92700

BU20..TS

 1
66343 - GUSSET, FRAME REAR WEIGHT
66343-92700

BU20..V

COLD SPEC,LH

 1
66301-92605

BU20..V

COLD SPEC,RH

 1
66343-92700

BU20..TS

 2
66343 - GUSSET, FRAME REAR WEIGHT
66343-92700

BU20..V

COLD SPEC,LH

 1
66301-92605

BU20..V

COLD SPEC,RH

 1
66343-92700

BU20..TS

 2
66343 - GUSSET, FRAME REAR WEIGHT
66343-92700

BU20..V

COLD SPEC,LH

 1
66301-92605

BU20..V

COLD SPEC,RH

 1
66343-92700

BU20..TS

 2
66343 - GUSSET, FRAME REAR WEIGHT
66343-92700

BU20..V

COLD SPEC,LH

 1
66301-92605

BU20..V

COLD SPEC,RH

 1
66343-92700

BU20..TS

 2
Common parts
90101-08016
91111-50845
91111-50860
91111-50875
91111-50880
91611-60825
94110-50800
94511-00800
94614-10800
