BU20-QR (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

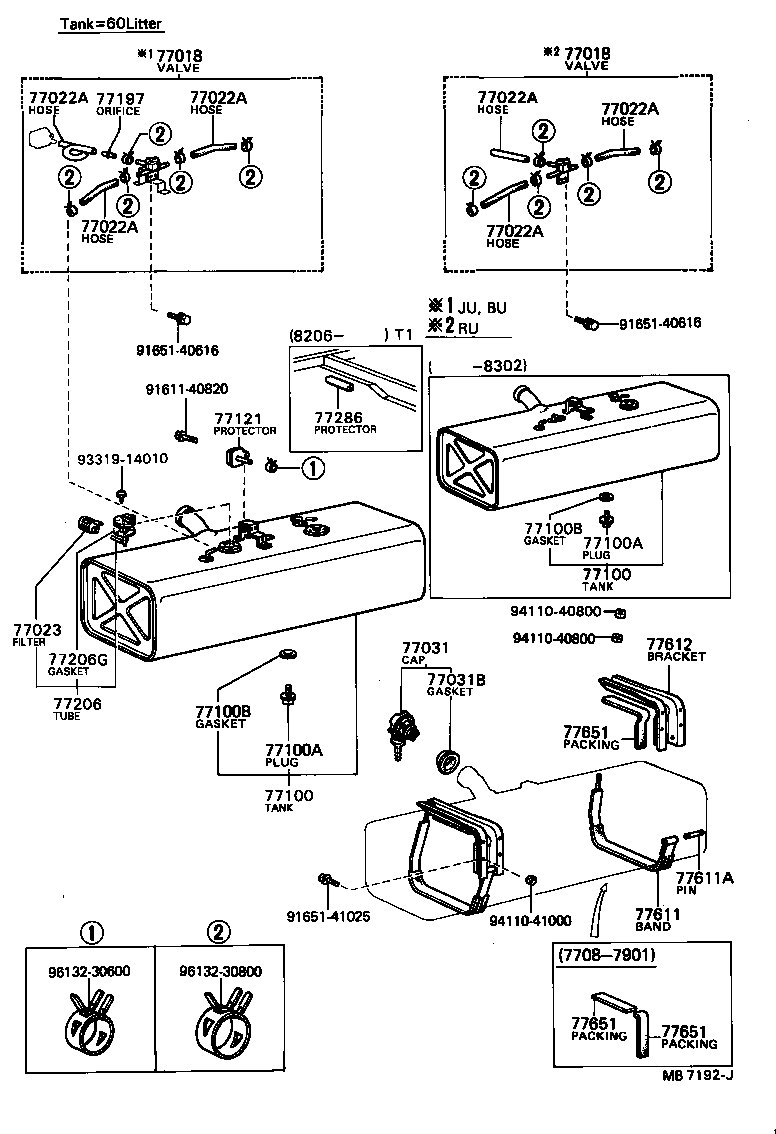

ILLUST NO. 1 OF 2(7708- )BU20..BTP ; (7708- )BU20,22..T1,T2; (7904- )KKT..ATP

Click highlighted areas on diagram

diagram 77018 77018 77022A 77022A 77022A 77022A 77022A 77022A 77023 77031 77031B 77100 77100 77100A 77100A 77100B 77100B 77121 77197 77206 77206G 77286 77611 77611A 77612 77651 77651 77651 9161140820 9165140616 9165140616 9165141025 9331914010 9411040800 9411040800 9411041000 9613230600 9613230800
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36061

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

TANK=60LITTER

 1
77018-36071

BU25,3#;BU20..T3..M50;BU20..DM3..CBU;BU20..BTP,CTP,DTP;BU20..(DM1,TB)..H50

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36061

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

TANK=60LITTER

 1
77018-36071

BU25,3#;BU20..T3..M50;BU20..DM3..CBU;BU20..BTP,CTP,DTP;BU20..(DM1,TB)..H50

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06034

BU2#,30

*H,L=340

 1
95332-08017

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=170,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06034

BU2#,30

*H,L=340

 1
95332-08017

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=170,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06034

BU2#,30

*H,L=340

 1
95332-08017

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=170,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06034

BU2#,30

*H,L=340

 1
95332-08017

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=170,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06034

BU2#,30

*H,L=340

 1
95332-08017

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=170,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06034

BU2#,30

*H,L=340

 1
95332-08017

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=170,内径=7.6

 2
77031 - CAP ASSY, FUEL TANK
69058-95401

BU2#,3#,4#,50

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12031

BU2#,3#,4#,5#

 1
77100 - TANK ASSY, FUEL
77001-36290

BU20..T1,T2

TANK=60LITTER

 1
77100 - TANK ASSY, FUEL
77001-36290

BU20..T1,T2

TANK=60LITTER

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BU2#,3#,4#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BU2#,3#,4#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU2#,3#,4#,5#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU2#,3#,4#,5#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BU2#,3#,4#,5#

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

BU2#,3#,4#,5#

 1
77611 - BAND, FUEL TANK
77601-36031

BU20..BTP;BU20..T1,T2

TANK=60LITTER

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,3#,4#,5#..02S,03S

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77633-36080

BU20..BTP;BU20..T1,T2

TANK=60LITTER

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36031

BU20..BTP;BU20..T1,T2

TANK=60LITTER

 4
77651 - PACKING, FUEL TANK BRACKET
77651-36031

BU20..BTP;BU20..T1,T2

TANK=60LITTER

 4
77651 - PACKING, FUEL TANK BRACKET
77651-36031

BU20..BTP;BU20..T1,T2

TANK=60LITTER

 4
Common parts
91611-40820
91651-40616
91651-41025
93319-14010
94110-40800
94110-41000
96132-30600
96132-30800

ILLUST NO. 2 OF 2(7708-8302)BU2#,3#

Click highlighted areas on diagram

diagram 77241 77241 77241 77241 77241A 77241A 77241A 77241A 77241B 77241B 77241B 77241B 77241C 77242 77283 9017908001 9046108422 9046108422 9046108557 9046110874 9048030207 9161140820 9161140820 9161140820 9161140820 9161140820 9165140820 9359016020 9411040800 9411040800 9411040800 9411040800 9411041000 9613230800 9622120908 9622120908
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-36410

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1,TW2

TANK=60LITTER

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36410

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1,TW2

TANK=60LITTER

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36410

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1,TW2

TANK=60LITTER

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36410

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1,TW2

TANK=60LITTER

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08024

BU20,30

*H,L=240,内径=7.6

 1
95332-08024

BU2#,30

*H,L=240,内径=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08024

BU20,30

*H,L=240,内径=7.6

 1
95332-08024

BU2#,30

*H,L=240,内径=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08024

BU20,30

*H,L=240,内径=7.6

 1
95332-08024

BU2#,30

*H,L=240,内径=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08024

BU20,30

*H,L=240,内径=7.6

 1
95332-08024

BU2#,30

*H,L=240,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08020

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=120,内径=7.6

 1
95337-08020

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=130,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08020

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=120,内径=7.6

 1
95337-08020

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=130,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08020

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=120,内径=7.6

 1
95337-08020

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=130,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08020

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=120,内径=7.6

 1
95337-08020

BU20..BTP;BU20..HRF,SRF,T1,T2,TW1

*H,L=130,内径=7.6

 1
77283 - BRACKET, FUEL TUBE
58266-36020

BU30;BU20..ST;BU20..T2;BU20..BTP,CTP

 1
Common parts
90179-08001
90461-08422
90461-08557
90461-10874
90480-30207
91611-40820
91651-40820
93590-16020
94110-40800
94110-41000
96132-30800
96221-20908
