BU20-MRLTY (1979)
Toyota Dyna

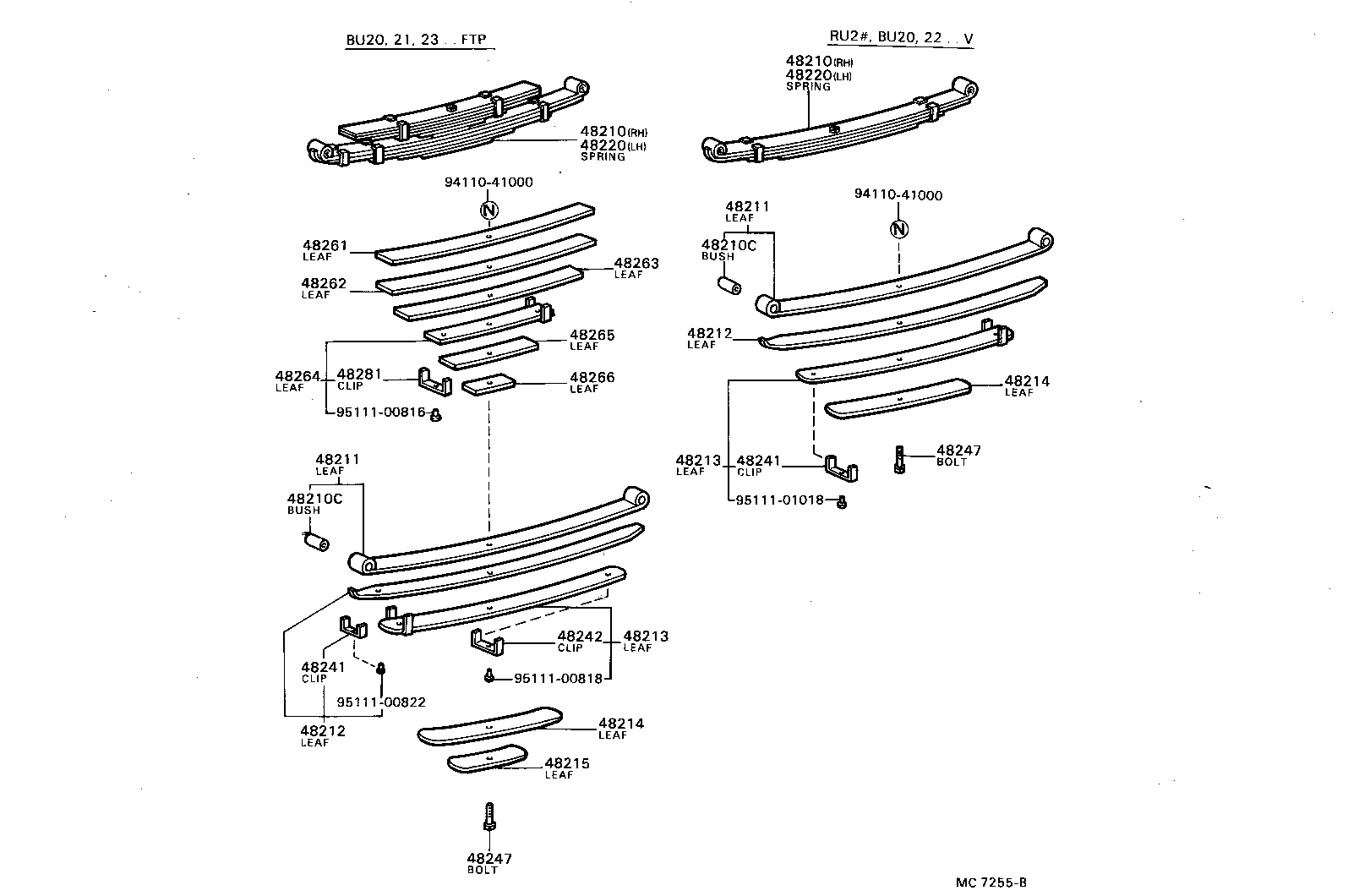

ILLUST NO. 2 OF 2(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36220 |
BU20..T2 6枚ﾘｰﾌ |
1 | ||
| 48210-36341 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48210-36340 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36220 |
BU20..T2 6枚ﾘｰﾌ |
1 | ||
| 48210-36341 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48210-36340 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU20,30 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU20,30 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36220 |
BU20..T2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36220 |
BU20..T2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36220 |
BU20..T2 |
2 | ||
| 48212-36340 |
BU20..M50..WT |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36220 |
BU20..T2 |
2 | ||
| 48212-36340 |
BU20..M50..WT |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36220 |
BU20..T2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36220 |
BU20..T2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36220 |
BU20..T2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36220 |
BU20..T2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36220 |
BU20..T2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36220 |
BU20..T2 6枚ﾘｰﾌ |
1 | ||
| 48210-36340 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48210-36341 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36220 |
BU20..T2 6枚ﾘｰﾌ |
1 | ||
| 48210-36340 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48210-36341 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36210 |
BU20..DM3;BU20..T2,TW2 |
4 | ||
| 48241-25010 |
BU20..(TR,V)..M50 |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36210 |
BU20..DM3;BU20..T2,TW2 |
4 | ||
| 48241-25010 |
BU20..(TR,V)..M50 |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48141-36280 |
BU20..M50..WT |
2 | ||
| 48242-36210 |
BU20,22..T2,TW2 6-LEAF |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36030 |
BU20,22..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36030 |
BU20,22..T2,TW2 |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00822 | ||||
| 95111-01018 | ||||
ILLUST NO. 1 OF 2(8204- )BU40,41,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36140 |
BU20,22..T2,TW2 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16156 |
BU20,22..T2,TW2 長さ=220 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36140 |
BU20..T2,TW2 |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48308-36030 |
BU20..T2 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36100 |
BU20..T2,TW2 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48415-36030 |
BU20..T2,TW2 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-36120 |
BU20,22..T2,TW2 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48417-36040 |
BU20,22..T2,TW2 |
1 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36020 |
BU2#,30 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39445 |
BU20..M50..WT ﾏｰｸ 48531−36070 |
1 | ||
| 48531-39295 |
BU20..T2,TW2 ﾏｰｸ 48531−36050 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BU2#,3#,4#,5# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BU2#,3#,4#,5# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BU2#,3#,4#,5# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BU2#,3#,4#,5# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU30,32,33,34,35,36,37,4#,5#..WT |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU2#,3#,4#,5#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BU2#,3# |
2 | ||
| 90948-03007 |
BU20..T2,TW2 PNC 48530 OR 48540 = MARK 48531-36050 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU2#,3#,45,46 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39295 |
BU20..T2,TW2 ﾏｰｸ 48531−36050 |
1 | ||
| 48531-39445 |
BU20..M50..WT ﾏｰｸ 48531−36070 |
1 | ||
| Common parts | ||||
| 90170-18158 | ||||
| 91611-61020 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94511-01000 | ||||
| 94512-01000 | ||||
| 94512-01800 | ||||
| 94531-01200 | ||||
| 96451-01000 | ||||

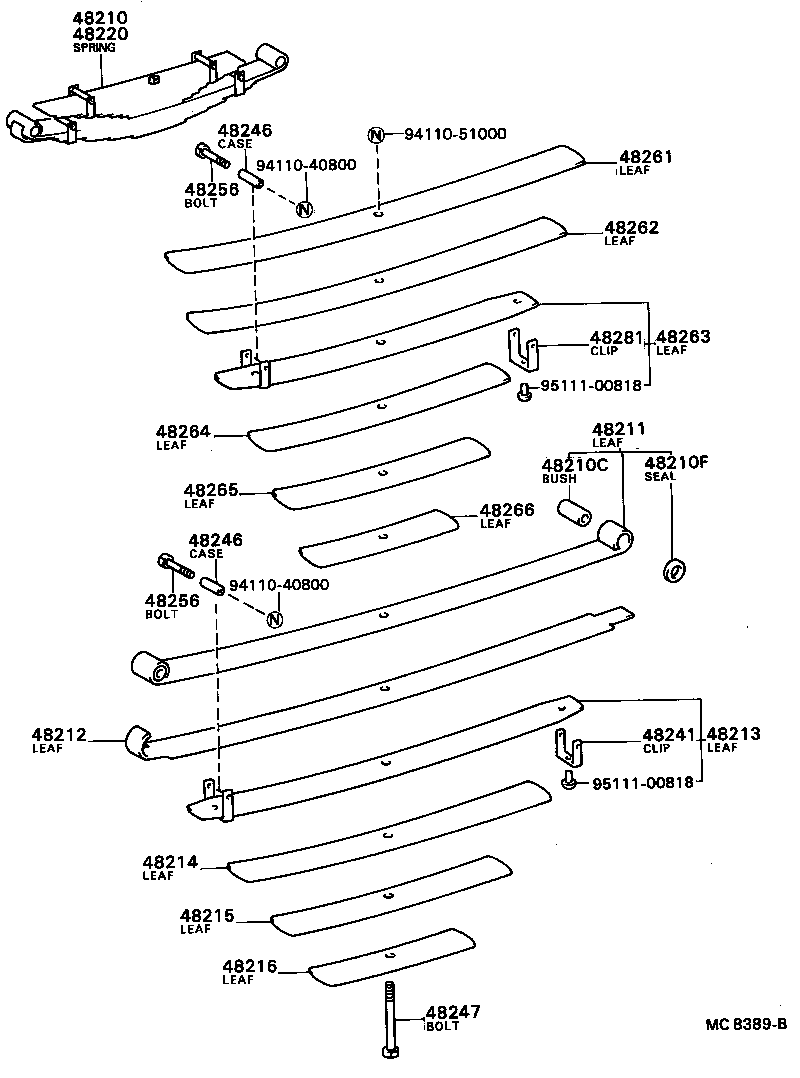

ILLUST NO. 2 OF 2(8204- )BU40,41,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36220 |
BU20..T2 6枚ﾘｰﾌ |
1 | ||
| 48210-36341 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48210-36340 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU20,30 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36220 |
BU20..T2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36220 |
BU20..T2 |
2 | ||
| 48212-36340 |
BU20..M50..WT |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36220 |
BU20..T2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36220 |
BU20..T2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36220 |
BU20..T2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36220 |
BU20..T2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36220 |
BU20..T2 6枚ﾘｰﾌ |
1 | ||
| 48210-36340 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48210-36341 |
BU20..M50..WT 6枚ﾘｰﾌ |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36210 |
BU20..DM3;BU20..T2,TW2 |
4 | ||
| 48241-25010 |
BU20..(TR,V)..M50 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU22..M50;BU20..TB..ST;BU21..KKT..IV3;BU21..DM3..CBU;BU20,23..DM3,TS;BU20,23..BTP,DTP;BU20..HRF,SRF,T2,TW2 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU22..M50;BU20..TB..ST;BU21..KKT..IV3;BU21..DM3..CBU;BU20,23..DM3,TS;BU20,23..BTP,DTP;BU20..HRF,SRF,T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36030 |
BU20,22..T2,TW2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU22..M50;BU20..TB..ST;BU21..KKT..IV3;BU21..DM3..CBU;BU20,23..DM3,TS;BU20,23..BTP,DTP;BU20..HRF,SRF,T2,TW2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU22..M50;BU20..TB..ST;BU21..KKT..IV3;BU21..DM3..CBU;BU20,23..DM3,TS;BU20,23..BTP,DTP;BU20..HRF,SRF,T2,TW2 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
| 95111-00818 | ||||
