BU20-MRDTY3 (1979)
Toyota Dyna

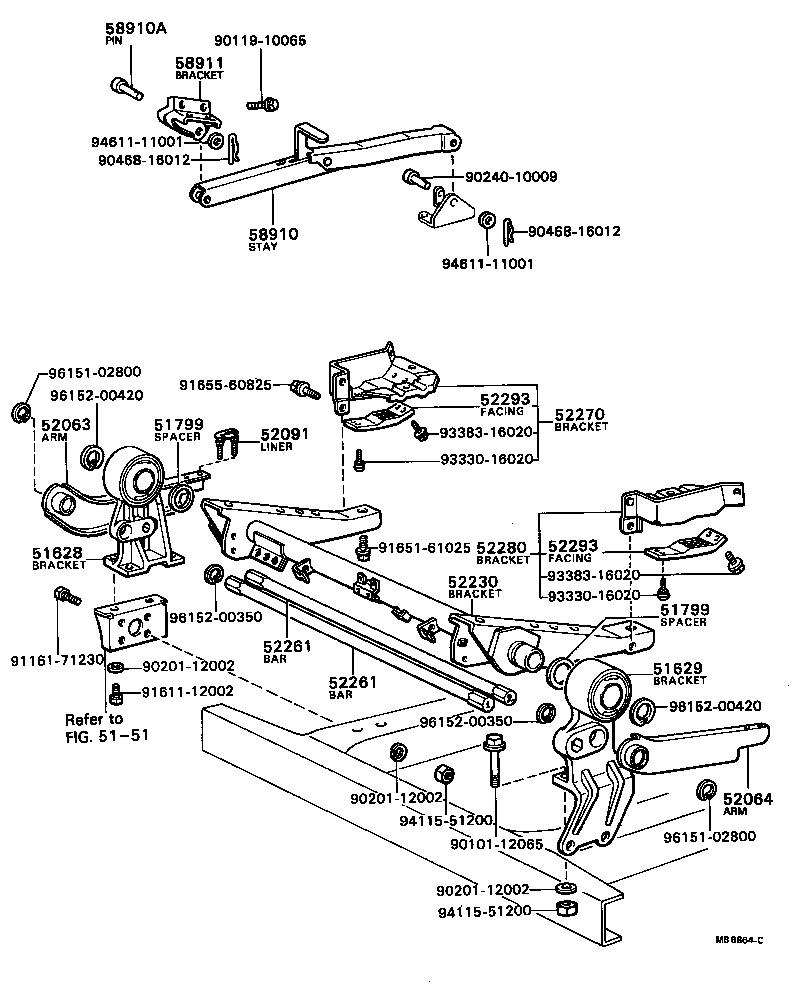

ILLUST NO. 1 OF 2(8008- )BU35,36,37,4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51628 - BRACKET, TORSION BAR, RH | ||||
| 51708-36010 |
BU2#,30,31,32,33,34 |
1 | ||
| 51629 - BRACKET, TORSION BAR, LH | ||||
| 51709-36010 |
BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,33,34..02S,03S |
1 | ||
| 51799 - SPACER, FRONT MOUNTING | ||||
| 51799-95400 |
BU2#,3# |
2 | ||
| 51799 - SPACER, FRONT MOUNTING | ||||
| 51799-95400 |
BU2#,3# |
2 | ||
| 52230 - BRACKET ASSY, FRONT MOUNTING | ||||
| 52220-95400 |
BU20..DTP;BU20..ST..20T;BU25,3#..02S,03S;BU20..(02S,03S)..WT |
1 | ||
| 52220-95404 |
BU20..DTP;BU20..ST..20T;BU25,30,31..02S,03S;BU20..(02S,03S)..WT |
1 | ||
| 52261 - BAR, TILT CAB TORSION | ||||
| 52261-95400 |
BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S |
1 | ||
| 52261 - BAR, TILT CAB TORSION | ||||
| 52261-95400 |
BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S |
1 | ||
| 58910 - STAY ASSY, CAB | ||||
| 58910-95400 |
BU20..DTP;BU20..ST..20T;BU25,30,31..02S,03S;BU20..(02S,03S)..WT |
1 | ||
| 58910A - PIN, W/HOLE (FOR CAB STAY SETTING) | ||||
| 90240-10008 |
BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S |
1 | ||
| 58911 - BRACKET, TILT CAB STAY | ||||
| 58066-95400 |
BU20,21,22,23,36,37..20T,275,30T;BU30,31,32,33,34,35,4#,5#..02S,03S |
1 | ||
| Common parts | ||||
| 90101-12065 | ||||
| 90119-10065 | ||||
| 90201-12002 | ||||
| 90240-10009 | ||||
| 90468-16012 | ||||
| 91161-71231 | ||||
| 91611-12002 | ||||
| 91651-61025 | ||||
| 91655-60825 | ||||
| 93330-16020 | ||||
| 93383-16020 | ||||
| 94115-51200 | ||||
| 94611-11001 | ||||
| 96151-02800 | ||||
| 96152-00350 | ||||
| 96152-00420 | ||||
| Linked diagrams | ||||
| 5151 | ||||
