BU20-MRDT3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )V

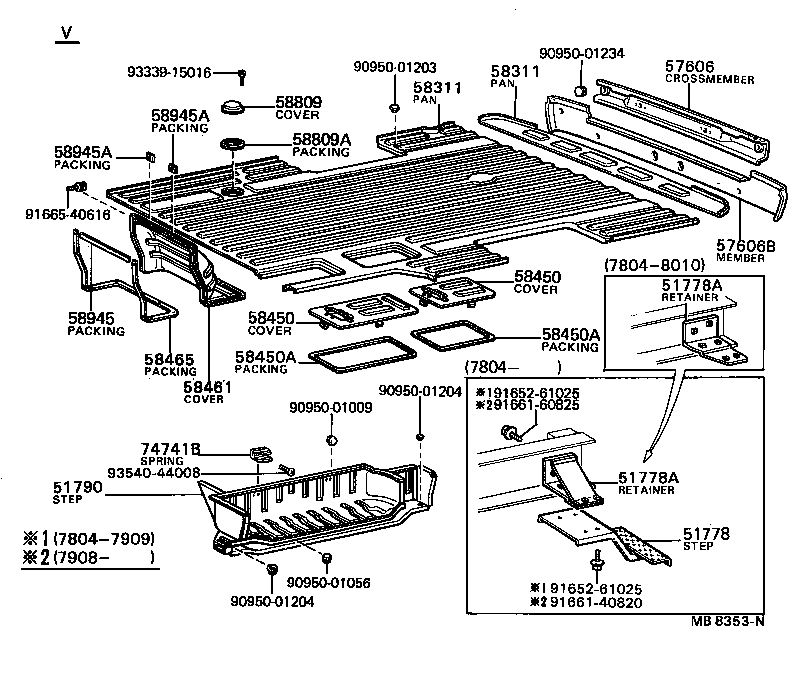

Click highlighted areas on diagram

diagram 51778 51778A 51778A 51790 57606 57606B 58311 58311 58450 58450 58450A 58450A 58461 58465 58809 58809A 58945 58945A 58945A 74741B 9095001009 9095001056 9095001203 9095001204 9095001204 9095001234 9165261025 9165261025 9166140820 9166160825 9166540616 9333915016 9354044008
Part # Description Qty Price
51790 - STEP ASSY, REAR FLOOR
58304-92605

BU20,22..V

 1
57606 - CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
58307-92605

BU20,22..V

 1
57606B - MEMBER SUB-ASSY, REAR FLOOR CROSS INNER
57407-92605

BU20,22..V

 1
58311 - PAN, REAR FLOOR
58315-92605

BU20,22..V

RR

 1
58311 - PAN, REAR FLOOR
58315-92605

BU20,22..V

RR

 1
58450 - COVER ASSY, BATTERY SERVICE HOLE
65306-92605

BU20,22..V

RR

 1
65305-92605

BU20,22..V

FR

 1
58450 - COVER ASSY, BATTERY SERVICE HOLE
65306-92605

BU20,22..V

RR

 1
65305-92605

BU20,22..V

FR

 1
58450A - PACKING, BATTERY SERVICE HOLE COVER
65352-92605

BU20,22..V

FR

 1
65352-92607

BU20,22..V

RR

 1
58450A - PACKING, BATTERY SERVICE HOLE COVER
65352-92605

BU20,22..V

FR

 1
65352-92607

BU20,22..V

RR

 1
58809 - COVER SUB-ASSY, FUEL TANK
65353-92605

BU20,22..V

 1
58809A - PACKING, FUEL HOLE COVER
65354-92605

BU20,22..V

 1
74741B - SPRING, STARTING HANDLE SUPPORT
74716-95A00

BU20,22..V

 2
Common parts
90950-01009
90950-01056
90950-01203
90950-01204
90950-01234
91652-61025
91661-40820
91661-60825
91665-40616
93339-15016
93540-44008
