Toyota Dyna/toyoace quick BU60 WIRING & CLAMP

BU60VH-QNFTF (1986)

Toyota Dyna/Toyoace Quick

Production Jan 1986 - May 1995

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

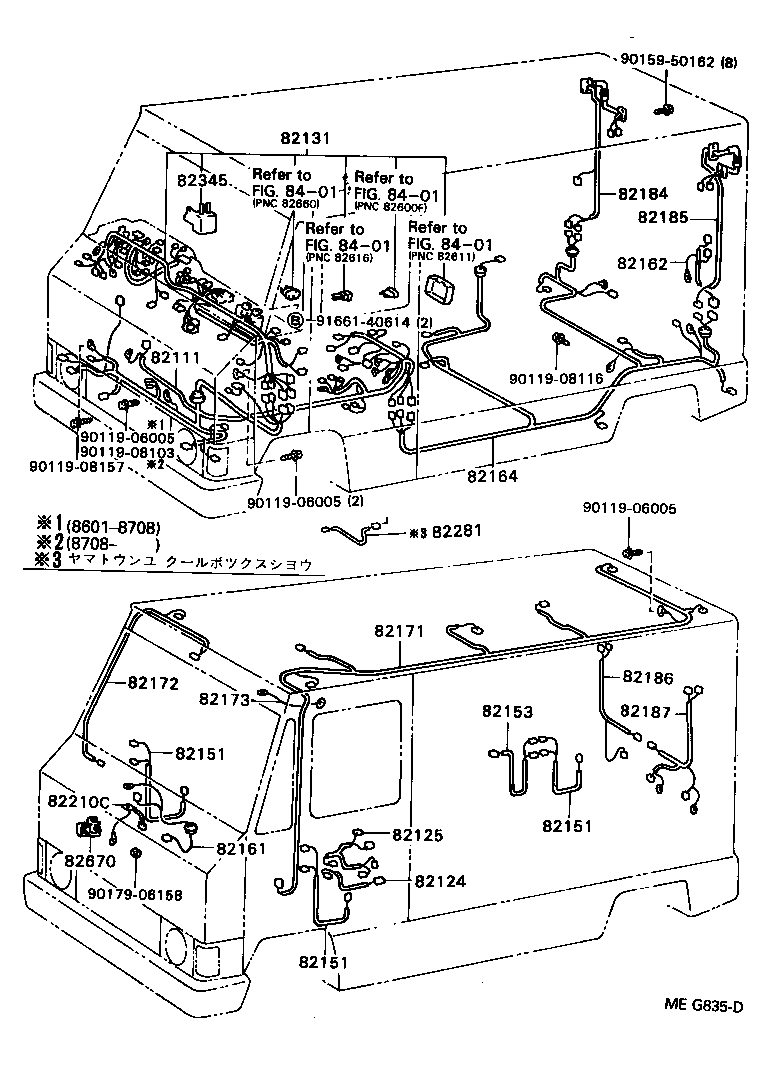

ILLUST NO. 1 OF 3(8601-8808)

Click highlighted areas on diagram

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-90F02	BU60..N	08/1987 - 08/1988	1
82111-90F01	BU60 W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1987	1
82111-90F08	BU60..N	08/1988 - 10/1989	1
82111-90F03	BU60..D	08/1987 - 08/1988	1
82111-90F00	BU60	01/1986 - 08/1987	1
82111-90F09	BU60..D	08/1988 - 10/1989	1
82111-90F15	BU60..D	08/1990 - 09/1993	1
82111-90F12	BU60..D	10/1989 - 08/1990	1
82111-37020	BU60..D	09/1993 - 12/1993	1
82111-90F11	BU60..N	10/1989 - 08/1990	1
82111-90F14	BU60..N	08/1990 - 09/1993	1
82111-37010	BU60..N	09/1993 - 12/1993	1
82111-37021	BU60..D	12/1993 - 05/1995	1
82111-37012	BU60..N	12/1993 - 05/1995	1
82124 - WIRE, ENGINE, NO.4
82124-37010	BU60	09/1993 - 05/1995	1
82124-90F00	BU60	01/1986 - 09/1993	1
82125 - WIRE, TRANSMISSION
82125-90F00	BU60	01/1986 - 11/1986	1
82125-90F03	BU60 W/EXHAUST BRAKE	11/1986 - 01/1988	1
82125-90F05	BU60 W/EXHAUST BRAKE	01/1988 - 05/1988	1
82125-90F06	BU60	10/1989 - 08/1990	1
82125-90F02	BU60	11/1986 - 01/1988	1
82125-90F07	BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄﾌﾞﾚ-ｷ)	10/1989 - 08/1990	1
82125-90F04	BU60	01/1988 - 10/1989	1
82125-90F08	BU60	08/1990 - 09/1993	1
82125-90F05	BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄﾌﾞﾚ-ｷ)	05/1988 - 10/1989	1
82125-90F09	BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄﾌﾞﾚ-ｷ)	08/1990 - 09/1993	1
82125-90F01	BU60 W/EXHAUST BRAKE	01/1986 - 11/1986	1
82125-37020	BU60	09/1993 - 05/1995	1
82125-37030	BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄﾌﾞﾚ-ｷ)	09/1993 - 05/1995	1
82131 - WIRE, COWL
82131-90F02	BU60	08/1986 - 08/1987	1
82131-90F03	BU60 W/WIRELESS DOOR LOCK OR *RW	08/1986 - 08/1987	1
82131-90F09	BU60..N	08/1988 - 02/1989	1
82131-90F00	BU60	01/1986 - 08/1986	1
82131-90F11	BU60..N	02/1989 - 10/1989	1
82131-90F05	BU60..D	08/1987 - 08/1988	1
82131-90F04	BU60..N	08/1987 - 08/1988	1
82131-90F01	BU60 W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1986	1
82131-90F13	BU60..N	10/1989 - 08/1990	1
82131-90F12	BU60..D	02/1989 - 10/1989	1
82131-37370	BU60..D..CBU	09/1993 - 05/1995	1
82131-37150	BU60..D..CBU	09/1991 - 09/1993	1
82131-90F14	BU60..D	10/1989 - 08/1990	1
82131-90F10	BU60..D	08/1988 - 02/1989	1
82131-90F17	BU60..D..CBU	08/1990 - 09/1991	1
82131-37360	BU60..N	09/1993 - 05/1995	1
82131-90F16	BU60..N	08/1990 - 09/1991	1
82131-37140	BU60..N	09/1991 - 09/1993	1
82151 - WIRE, FRONT DOOR, RH
82151-90D00	BU60..N	01/1986 - 05/1988	3
82151-90D00	BU60..N..4D	05/1988 - 05/1995	3
82151 - WIRE, FRONT DOOR, RH
82151-90D00	BU60..N	01/1986 - 05/1988	3
82151-90D00	BU60..N..4D	05/1988 - 05/1995	3
82151 - WIRE, FRONT DOOR, RH
82151-90D00	BU60..N	01/1986 - 05/1988	3
82151-90D00	BU60..N..4D	05/1988 - 05/1995	3
82153 - WIRE, REAR DOOR, NO.1
82153-90D00	BU60..N..4D	01/1986 - 05/1988	1
82153-90D00	BU60..N..4D	05/1988 - 05/1995	1
82161 - WIRE, FLOOR
82161-90D00	BU60	01/1986 - 10/1990	1
82162 - WIRE, FLOOR, NO.2
82162-90D00	BU60..N	05/1986 - 05/1995	1
82164 - WIRE, FRAME
82164-90F02	BU60..N	08/1987 - 08/1988	1
82164-90F00	BU60	01/1986 - 08/1987	1
82164-90F07	BU60..N	08/1990 - 02/1992	1
82164-90F01	BU60 W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1987	1
82164-90F08	BU60..D	08/1990 - 05/1995	1
82164-37170	BU60..N	02/1992 - 05/1995	1
82164-90F05	BU60..D	08/1988 - 08/1990	1
82164-90F03	BU60..D	08/1987 - 08/1988	1
82164-90F04	BU60..N	08/1988 - 08/1990	1
82171 - WIRE, ROOF, NO.1
82171-90F02	BU60..D W/*FL	08/1987 - 05/1988	1
82171-90F02	BU60..D..CBU ｱﾘ(ｹｲｺｳﾄｳ)	05/1988 - 05/1995	1
82171-90F04	BU60..D..CBU	05/1988 - 05/1995	1
82171-90F04	BU60..D	08/1987 - 05/1988	1
82171-90F01	BU60 W/*FL	01/1986 - 08/1987	1
82171-90F00	BU60..D	01/1986 - 08/1987	1
82171-90F03	BU60..N	08/1987 - 05/1995	1
82172 - WIRE, ROOF, NO.2
82172-90D01	BU60	08/1987 - 02/1990	1
82172-90D00	BU60	01/1986 - 08/1987	1
82172-37010	BU60..CBU	09/1991 - 05/1995	1
82172-90F00	BU60..CBU	02/1990 - 09/1991	1
82173 - WIRE, ROOF, NO.3
82173-90D00	BU60	04/1986 - 05/1988	2
82173-90D00	BU60..CBU	05/1988 - 05/1995	2
82184 - WIRE, BACK DOOR, NO.1
82184-90D02	BU60..D..4D W/RW,W/RW & *FL	01/1986 - 05/1988	1
82184-90D02	BU60..D..4D ｱﾘ(ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	05/1988 - 08/1988	1
82184-90D02	BU60..N..4D W/WDL OR RW	01/1986 - 08/1987	1
82184-90D03	BU60..D W/*FL	01/1986 - 05/1988	1
82184-90D03	BU60..N	01/1986 - 05/1995	1
82184-90D03	BU60..D..CBU ｱﾘ(ｹｲｺｳﾄｳ)	05/1988 - 05/1995	1
82184-90D02	BU60..N..4D W/*WDL	08/1987 - 05/1988	1
82184-90D04	BU60..D..CBU ｱﾘ(ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	08/1988 - 05/1995	1
82184-90D02	BU60..N..4D ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1988 - 08/1988	1
82184-90D04	BU60..N ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	08/1988 - 05/1995	1
82185 - WIRE, BACK DOOR, NO.2
82185-90D00	BU60..N	05/1988 - 08/1988	1
82185-90D01	BU60..N	01/1986 - 08/1987	1
82185-90D02	BU60..N	08/1988 - 05/1995	1
82185-90D00	BU60..N	08/1987 - 05/1988	1
82185-90D00	BU60..N W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1987	1
82186 - WIRE, REAR WINDOW, NO.1
82186-90D01	BU60..D W/RW & W/O WDL	08/1987 - 05/1988	1
82186-90D01	BU60 W/RW & W/O WDL	01/1986 - 08/1987	1
82186-90D00	BU60..N W/WDL & W/O RW	01/1986 - 08/1987	1
82186-90D00	BU60..N	08/1987 - 05/1988	1
82186-90D00	BU60..N	05/1988 - 05/1995	1
82186-90D01	BU60..D..CBU	05/1988 - 05/1995	1
82186-90D02	BU60..N W/WDL & W/RW	01/1986 - 08/1987	1
82187 - WIRE, REAR WINDOW, NO.2
82187-90D00	BU60..N	08/1987 - 05/1988	1
82187-90D00	BU60..N W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1987	1
82187-90D00	BU60..N	05/1988 - 05/1995	1
82187-90D01	BU60..N	01/1986 - 08/1987	1
82210C - FUSIBLE LINK
90982-08232	BU60 ﾊﾞｯﾃﾘ	01/1986 - 05/1988	1
90982-08232	BU60 ﾊﾞｯﾃﾘ	05/1988 - 05/1995	1
90982-08206	BU60 GLOW RESISTER	09/1993 - 05/1995	1
82345 - DIODE
82345-12050	BU60	01/1986 - 05/1995	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-90K00	BU60	01/1986 - 05/1995	1
Common parts
90119-06005
90119-08103
90119-08116
90119-08157
90159-50162
90179-06158
91661-40614
Linked diagrams
8401

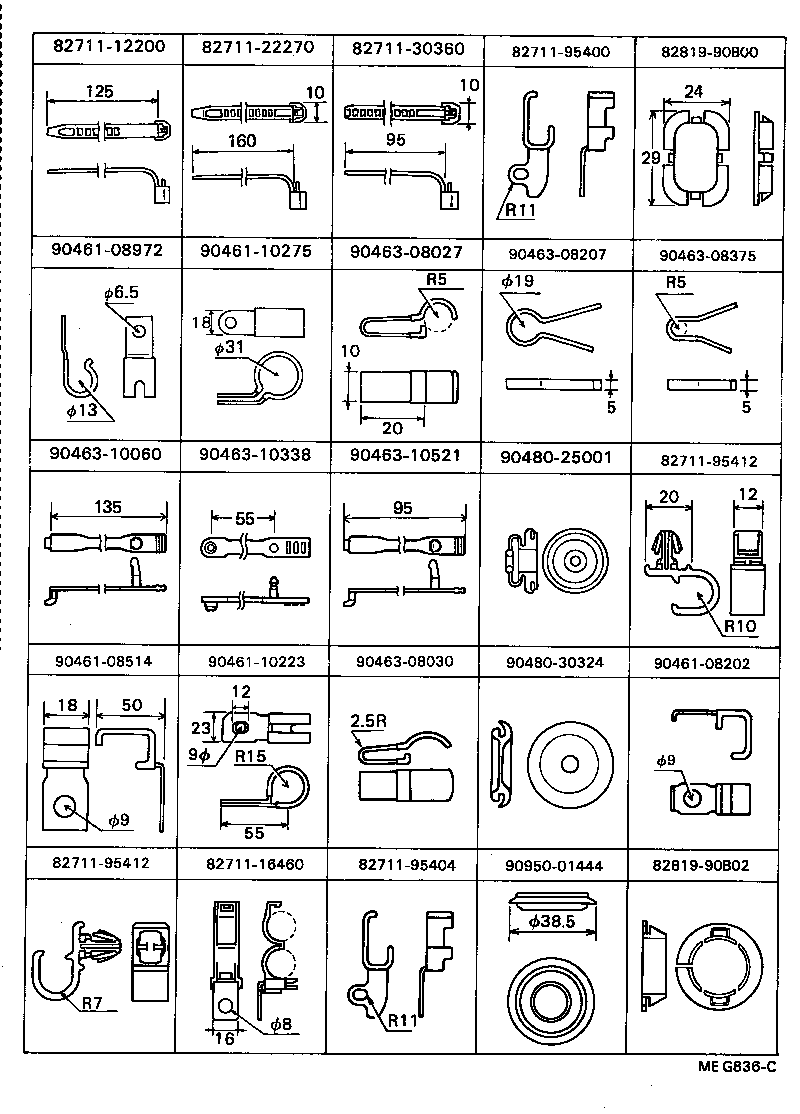

ILLUST NO. 3 OF 3(8601- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-16460
82711-22270
82711-30360
82711-95400
82711-95404
82711-95412
82819-90B00
82819-90B02
90461-08202
90461-08514
90461-08972
90461-10223
90461-10275
90463-08027
90463-08030
90463-08207
90463-08375
90463-10060
90463-10338
90463-10521
90480-25001
90480-30324
90950-01444

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-90F02	BU60..N	08/1987 - 08/1988	1
82111-90F01	BU60 W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1987	1
82111-90F08	BU60..N	08/1988 - 10/1989	1
82111-90F03	BU60..D	08/1987 - 08/1988	1
82111-90F00	BU60	01/1986 - 08/1987	1
82111-90F09	BU60..D	08/1988 - 10/1989	1
82111-90F15	BU60..D	08/1990 - 09/1993	1
82111-90F12	BU60..D	10/1989 - 08/1990	1
82111-37020	BU60..D	09/1993 - 12/1993	1
82111-90F11	BU60..N	10/1989 - 08/1990	1
82111-90F14	BU60..N	08/1990 - 09/1993	1
82111-37010	BU60..N	09/1993 - 12/1993	1
82111-37021	BU60..D	12/1993 - 05/1995	1
82111-37012	BU60..N	12/1993 - 05/1995	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-90K07	BU60	08/1988 - 12/1993	1
82124 - WIRE, ENGINE, NO.4
82124-37010	BU60	09/1993 - 05/1995	1
82124-90F00	BU60	01/1986 - 09/1993	1
82125 - WIRE, TRANSMISSION
82125-90F00	BU60	01/1986 - 11/1986	1
82125-90F03	BU60 W/EXHAUST BRAKE	11/1986 - 01/1988	1
82125-90F05	BU60 W/EXHAUST BRAKE	01/1988 - 05/1988	1
82125-90F06	BU60	10/1989 - 08/1990	1
82125-90F02	BU60	11/1986 - 01/1988	1
82125-90F07	BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄﾌﾞﾚ-ｷ)	10/1989 - 08/1990	1
82125-90F04	BU60	01/1988 - 10/1989	1
82125-90F08	BU60	08/1990 - 09/1993	1
82125-90F05	BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄﾌﾞﾚ-ｷ)	05/1988 - 10/1989	1
82125-90F09	BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄﾌﾞﾚ-ｷ)	08/1990 - 09/1993	1
82125-90F01	BU60 W/EXHAUST BRAKE	01/1986 - 11/1986	1
82125-37020	BU60	09/1993 - 05/1995	1
82125-37030	BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄﾌﾞﾚ-ｷ)	09/1993 - 05/1995	1
82131 - WIRE, COWL
82131-90F02	BU60	08/1986 - 08/1987	1
82131-90F03	BU60 W/WIRELESS DOOR LOCK OR *RW	08/1986 - 08/1987	1
82131-90F09	BU60..N	08/1988 - 02/1989	1
82131-90F00	BU60	01/1986 - 08/1986	1
82131-90F11	BU60..N	02/1989 - 10/1989	1
82131-90F05	BU60..D	08/1987 - 08/1988	1
82131-90F04	BU60..N	08/1987 - 08/1988	1
82131-90F01	BU60 W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1986	1
82131-90F13	BU60..N	10/1989 - 08/1990	1
82131-90F12	BU60..D	02/1989 - 10/1989	1
82131-37370	BU60..D..CBU	09/1993 - 05/1995	1
82131-37150	BU60..D..CBU	09/1991 - 09/1993	1
82131-90F14	BU60..D	10/1989 - 08/1990	1
82131-90F10	BU60..D	08/1988 - 02/1989	1
82131-90F17	BU60..D..CBU	08/1990 - 09/1991	1
82131-37360	BU60..N	09/1993 - 05/1995	1
82131-90F16	BU60..N	08/1990 - 09/1991	1
82131-37140	BU60..N	09/1991 - 09/1993	1
82151 - WIRE, FRONT DOOR, RH
82151-90D00	BU60..N	01/1986 - 05/1988	3
82151-90D00	BU60..N..4D	05/1988 - 05/1995	3
82151 - WIRE, FRONT DOOR, RH
82151-90D00	BU60..N	01/1986 - 05/1988	3
82151-90D00	BU60..N..4D	05/1988 - 05/1995	3
82151 - WIRE, FRONT DOOR, RH
82151-90D00	BU60..N	01/1986 - 05/1988	3
82151-90D00	BU60..N..4D	05/1988 - 05/1995	3
82153 - WIRE, REAR DOOR, NO.1
82153-90D00	BU60..N..4D	01/1986 - 05/1988	1
82153-90D00	BU60..N..4D	05/1988 - 05/1995	1
82161 - WIRE, FLOOR
82161-90D00	BU60	01/1986 - 10/1990	1
82162 - WIRE, FLOOR, NO.2
82162-90D00	BU60..N	05/1986 - 05/1995	1
82164 - WIRE, FRAME
82164-90F02	BU60..N	08/1987 - 08/1988	1
82164-90F00	BU60	01/1986 - 08/1987	1
82164-90F07	BU60..N	08/1990 - 02/1992	1
82164-90F01	BU60 W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1987	1
82164-90F08	BU60..D	08/1990 - 05/1995	1
82164-37170	BU60..N	02/1992 - 05/1995	1
82164-90F05	BU60..D	08/1988 - 08/1990	1
82164-90F03	BU60..D	08/1987 - 08/1988	1
82164-90F04	BU60..N	08/1988 - 08/1990	1
82171 - WIRE, ROOF, NO.1
82171-90F02	BU60..D W/*FL	08/1987 - 05/1988	1
82171-90F02	BU60..D..CBU ｱﾘ(ｹｲｺｳﾄｳ)	05/1988 - 05/1995	1
82171-90F04	BU60..D..CBU	05/1988 - 05/1995	1
82171-90F04	BU60..D	08/1987 - 05/1988	1
82171-90F01	BU60 W/*FL	01/1986 - 08/1987	1
82171-90F00	BU60..D	01/1986 - 08/1987	1
82171-90F03	BU60..N	08/1987 - 05/1995	1
82172 - WIRE, ROOF, NO.2
82172-90D01	BU60	08/1987 - 02/1990	1
82172-90D00	BU60	01/1986 - 08/1987	1
82172-37010	BU60..CBU	09/1991 - 05/1995	1
82172-90F00	BU60..CBU	02/1990 - 09/1991	1
82173 - WIRE, ROOF, NO.3
82173-90D00	BU60	04/1986 - 05/1988	2
82173-90D00	BU60..CBU	05/1988 - 05/1995	2
82184 - WIRE, BACK DOOR, NO.1
82184-90D02	BU60..D..4D W/RW,W/RW & *FL	01/1986 - 05/1988	1
82184-90D02	BU60..D..4D ｱﾘ(ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	05/1988 - 08/1988	1
82184-90D02	BU60..N..4D W/WDL OR RW	01/1986 - 08/1987	1
82184-90D03	BU60..D W/*FL	01/1986 - 05/1988	1
82184-90D03	BU60..N	01/1986 - 05/1995	1
82184-90D03	BU60..D..CBU ｱﾘ(ｹｲｺｳﾄｳ)	05/1988 - 05/1995	1
82184-90D02	BU60..N..4D W/*WDL	08/1987 - 05/1988	1
82184-90D04	BU60..D..CBU ｱﾘ(ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	08/1988 - 05/1995	1
82184-90D02	BU60..N..4D ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1988 - 08/1988	1
82184-90D04	BU60..N ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	08/1988 - 05/1995	1
82185 - WIRE, BACK DOOR, NO.2
82185-90D00	BU60..N	05/1988 - 08/1988	1
82185-90D01	BU60..N	01/1986 - 08/1987	1
82185-90D02	BU60..N	08/1988 - 05/1995	1
82185-90D00	BU60..N	08/1987 - 05/1988	1
82185-90D00	BU60..N W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1987	1
82186 - WIRE, REAR WINDOW, NO.1
82186-90D01	BU60..D W/RW & W/O WDL	08/1987 - 05/1988	1
82186-90D01	BU60 W/RW & W/O WDL	01/1986 - 08/1987	1
82186-90D00	BU60..N W/WDL & W/O RW	01/1986 - 08/1987	1
82186-90D00	BU60..N	08/1987 - 05/1988	1
82186-90D00	BU60..N	05/1988 - 05/1995	1
82186-90D01	BU60..D..CBU	05/1988 - 05/1995	1
82186-90D02	BU60..N W/WDL & W/RW	01/1986 - 08/1987	1
82187 - WIRE, REAR WINDOW, NO.2
82187-90D00	BU60..N	08/1987 - 05/1988	1
82187-90D00	BU60..N W/WIRELESS DOOR LOCK OR *RW	01/1986 - 08/1987	1
82187-90D00	BU60..N	05/1988 - 05/1995	1
82187-90D01	BU60..N	01/1986 - 08/1987	1
82188A - WIRE, BACK DOOR, NO.3
82188-90D01	BU60..4D	08/1988 - 05/1995	1
82189 - WIRE, BACK DOOR, NO.4
82189-90D00	BU60..N	08/1988 - 05/1995	1
82210C - FUSIBLE LINK
90982-08232	BU60 ﾊﾞｯﾃﾘ	01/1986 - 05/1988	1
90982-08232	BU60 ﾊﾞｯﾃﾘ	05/1988 - 05/1995	1
90982-08206	BU60 GLOW RESISTER	09/1993 - 05/1995	1
82345 - DIODE
82345-12050	BU60	01/1986 - 05/1995	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-90K00	BU60	01/1986 - 05/1995	1
Common parts
90119-06005
90119-08103
90119-08116
90119-08827
90159-50162
90179-06158
91661-40614
Linked diagrams
8401

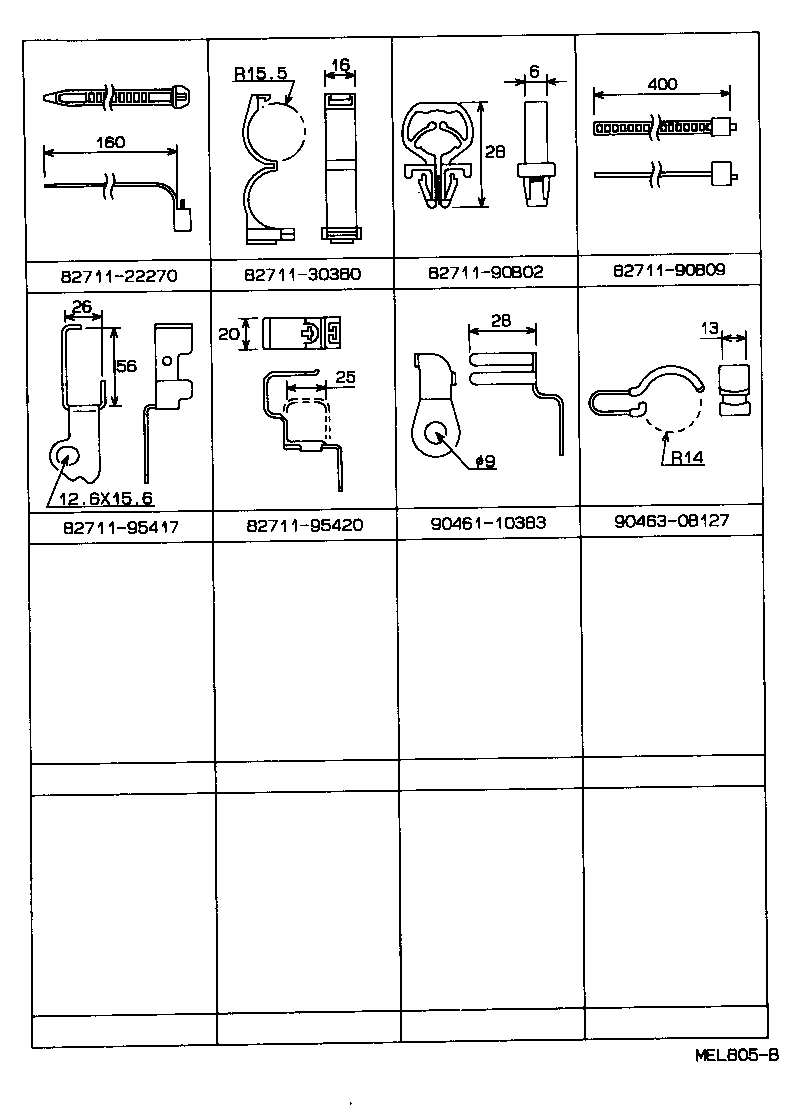

ILLUST NO. 3 OF 3(8601- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-22270
82711-30380
82711-90B02
82711-90B09
82711-95417
82711-95420
90461-10383
90463-08127

BU60VH-QNFTF (1986)

ILLUST NO. 1 OF 3(8601-8808)

ILLUST NO. 3 OF 3(8601- )

ILLUST NO. 2 OF 3(8808- )

ILLUST NO. 3 OF 3(8601- )

Part Price Details
