Toyota Dyna/toyoace quick BU60 FRONT DOOR PANEL & GLASS

BU60VH-QNFTF (1986)

Toyota Dyna/Toyoace Quick

Production Jan 1986 - May 1995

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

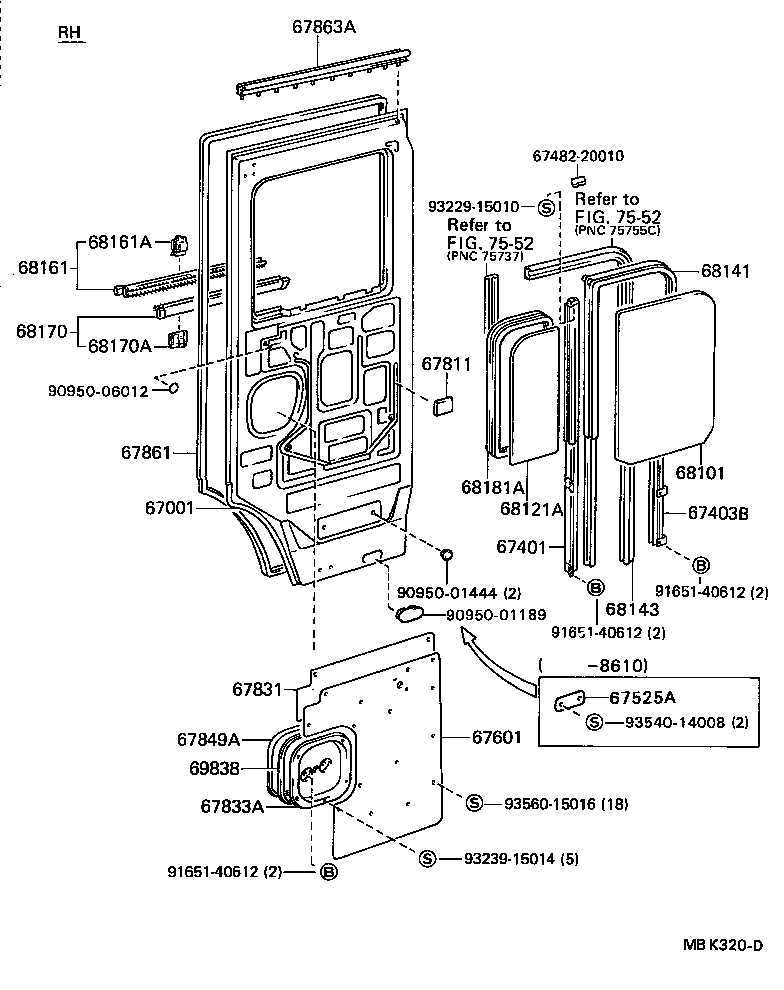

ILLUST NO. 1 OF 2(8601- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-90D07	BU60..N W/*EL	02/1986 - 08/1987	1
67001-90D09	BU60..N ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	05/1988 - 08/1990	1
67001-90D04	BU60	01/1986 - 02/1986	1
67001-90D05	BU60..N W/*EL	01/1986 - 02/1986	1
67001-90D09	BU60..N W/*EL	08/1987 - 05/1988	1
67001-90D12	BU60..N ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	08/1990 - 05/1995	1
67001-90D11	BU60..CBU	08/1990 - 05/1995	1
67001-90D08	BU60	08/1987 - 08/1990	1
67001-90D06	BU60	02/1986 - 08/1987	1
67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67503-90D01	BU60	10/1989 - 05/1995	1
67503-90D00	BU60	01/1986 - 10/1989	1
67403B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH
67403-90D00	BU60	01/1986 - 05/1995	1
67525A - COVER, SLIDE DOOR PANEL, LOWER
67525-90D00	BU60	01/1986 - 10/1986	2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67611-90D0205	BU60 BEIGE,BEIGE,TRIM4#	08/1987 - 05/1988	1
67601-90D00	BU60	01/1986 - 08/1987	1
67611-90D0205	BU60..CBU BEIGE,TRIM4#	05/1988 - 05/1995	1
67811 - PAD, FRONT DOOR SILENCER
67811-90D00	BU60	01/1986 - 05/1988	3
67811-90D00	BU60	05/1988 - 05/1995	1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-90D01	BU60	10/1987 - 05/1995	1
67831-90D01	BU60	01/1986 - 08/1987	1
67831-90D02	BU60	08/1987 - 10/1987	1
67833A - COVER, FRONT SLIDE DOOR PANEL, INNER
67833-90D00	BU60	01/1986 - 05/1995	1
67849A - PROTECTOR, FRONT SLIDE DOOR PANEL COVER
67849-90D00	BU60	01/1986 - 05/1995	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-90D06	BU60 ｶﾝﾚｲﾁｼﾖｳ	05/1988 - 08/1990	1
67861-90D06	BU60	08/1990 - 05/1995	1
67861-90D04	BU60	01/1986 - 08/1990	1
67863A - WEATHERSTRIP, FRONT DOOR, UPPER RH
67863-90D00	BU60	01/1986 - 05/1995	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-90D00	BU60 TEM,厚さ=3.5,TEM,T=3.5	01/1986 - 05/1988	1
68111-90D00	BU60 *TEM,厚さ=3.5	05/1988 - 05/1995	1
68121A - GLASS, DOOR VENTILATING WINDOW, RH
68121-90D00	BU60 *TEM,T=3.5	01/1986 - 05/1988	1
68121-90D00	BU60	05/1988 - 05/1995	1
68141 - RUN, FRONT DOOR GLASS
68141-90D00	BU60	01/1986 - 05/1995	1
68143 - RUN, FRONT DOOR GLASS, LOWER
68143-90D00	BU60	01/1986 - 05/1995	1
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-90D00	BU60	01/1986 - 05/1995	1
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68212-95J00	BU60	01/1986 - 05/1995	3
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-90D00	BU60	01/1986 - 05/1995	1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68212-95J00	BU60	01/1986 - 05/1995	3
68181A - WEATHERSTRIP, FRONT DOOR VENT WINDOW, RH
68181-90D00	BU60	01/1986 - 05/1995	1
69838 - SEAL, WINDOW REGULATOR HOLE, NO.2
69838-90D00	BU60	01/1986 - 05/1995	1
Common parts
67482-20010
90950-01189
90950-01444
90950-06012
91651-40612
93229-15010
93239-15014
93540-14008
93560-15016
Linked diagrams
7552

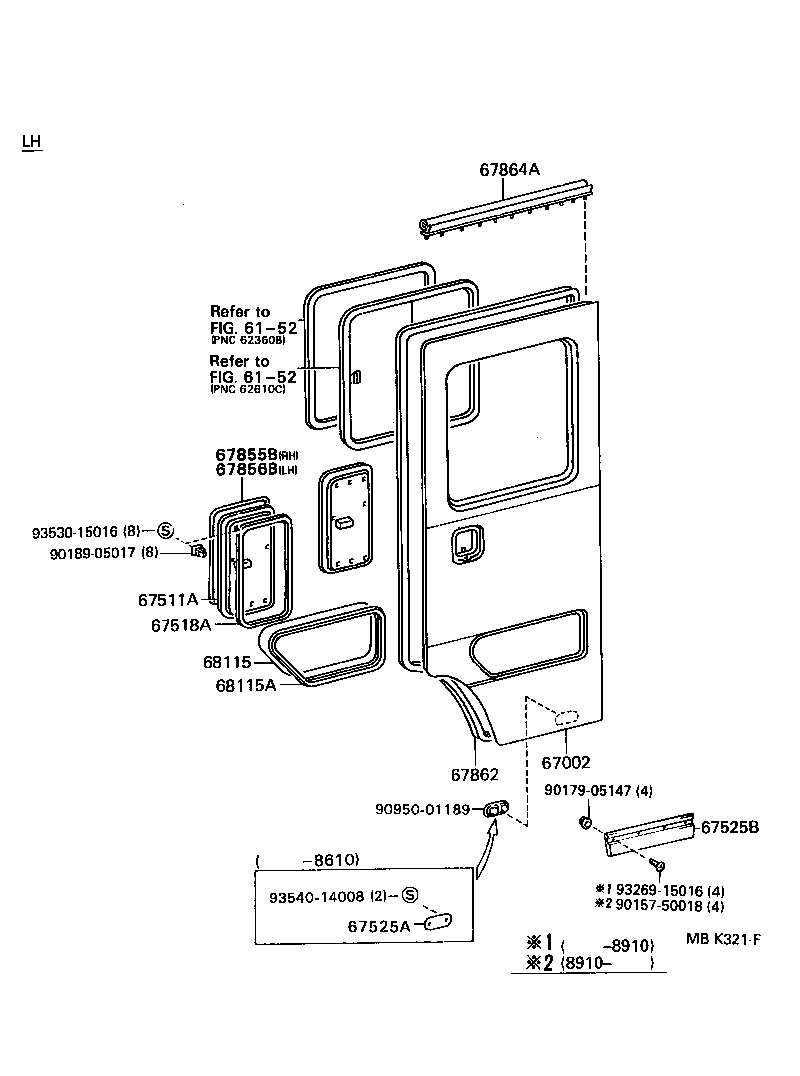

ILLUST NO. 2 OF 2(8601- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-90F02	BU60..N W/*EL	01/1986 - 02/1986	1
67002-90F01	BU60 W/LWR WINDOW GLASS	01/1986 - 02/1986	1
67002-90F00	BU60..D	01/1986 - 02/1986	1
67002-90F04	BU60 W/LWR WINDOW GLASS	02/1986 - 08/1987	1
67002-90F03	BU60..D	02/1986 - 08/1987	1
67002-90F11	BU60..D..CBU	08/1990 - 05/1995	1
67002-90F07	BU60 W/LWR WINDOW GLASS	08/1987 - 05/1988	1
67002-90F05	BU60..N W/*EL	02/1986 - 08/1987	1
67002-90F08	BU60..N ｱﾘ(*EL & ﾛﾜ- ｳｲﾝﾄﾞｳｶﾞﾗｽ)	08/1987 - 05/1988	1
67002-90F06	BU60..D	08/1987 - 08/1990	1
67002-90F13	BU60..N ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	08/1990 - 05/1995	1
67002-90F12	BU60..D..CBU ｱﾘ(ﾛﾜ- ｳｲﾝﾄﾞｳｶﾞﾗｽ)	08/1990 - 05/1995	1
67002-90F08	BU60..N ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	05/1988 - 08/1990	1
67002-90F07	BU60..N	05/1988 - 08/1990	1
67002-90F07	BU60..D ｱﾘ(ﾛﾜ- ｳｲﾝﾄﾞｳｶﾞﾗｽ)	05/1988 - 08/1990	1
67002-90F12	BU60..N	08/1990 - 05/1995	1
67511A - COVER SUB-ASSY, FRONT DOOR SERVICE HOLE, NO.1
67511-95A13	BU60..CBU	05/1988 - 05/1995	2
67511-95A13	BU60	01/1986 - 05/1988	2
67518A - PACKING, FRONT DOOR SERVICE HOLE, NO.1
67518-95A00	BU60..CBU	05/1988 - 05/1995	2
67518-95A00	BU60	01/1986 - 05/1988	2
67525A - COVER, SLIDE DOOR PANEL, LOWER
67525-90D00	BU60	01/1986 - 10/1986	2
67525B - COVER, SLIDE DOOR PANEL, LOWER NO.2
67525-90F00	BU60	01/1986 - 05/1995	1
67855B - PROTECTOR, FRONT DOOR PANEL, RH
67855-90D00	BU60	08/1990 - 05/1995	1
67856B - PROTECTOR, FRONT DOOR PANEL, LH
67855-90D00	BU60	08/1990 - 05/1995	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-90F00	BU60	01/1986 - 08/1990	1
67862-90F02	BU60 ｶﾝﾚｲﾁｼﾖｳ	05/1988 - 08/1990	1
67862-90F02	BU60	08/1990 - 05/1995	1
67864A - WEATHERSTRIP, FRONT DOOR, UPPER, LH
67864-90D00	BU60	01/1986 - 05/1995	1
68115 - GLASS, FRONT DOOR WINDOW, LOWER
68125-90D02	BU60	05/1988 - 05/1995	1
68125-90D02	BU60 *TEM,T=3.5	01/1986 - 05/1988	1
68115A - WEATHERSTRIP, FRONT DOOR WINDOW, LOWER
68215-90D02	BU60	01/1986 - 05/1995	1
Common parts
90157-50018
90179-05147
90189-05017
90950-01189
93269-15016
93530-15016
93540-14008
Linked diagrams
6152

BU60VH-QNFTF (1986)

ILLUST NO. 1 OF 2(8601- )

ILLUST NO. 2 OF 2(8601- )
