BU60VH-QNFTF (1986)

Toyota Dyna/Toyoace Quick

Production Jan 1986 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

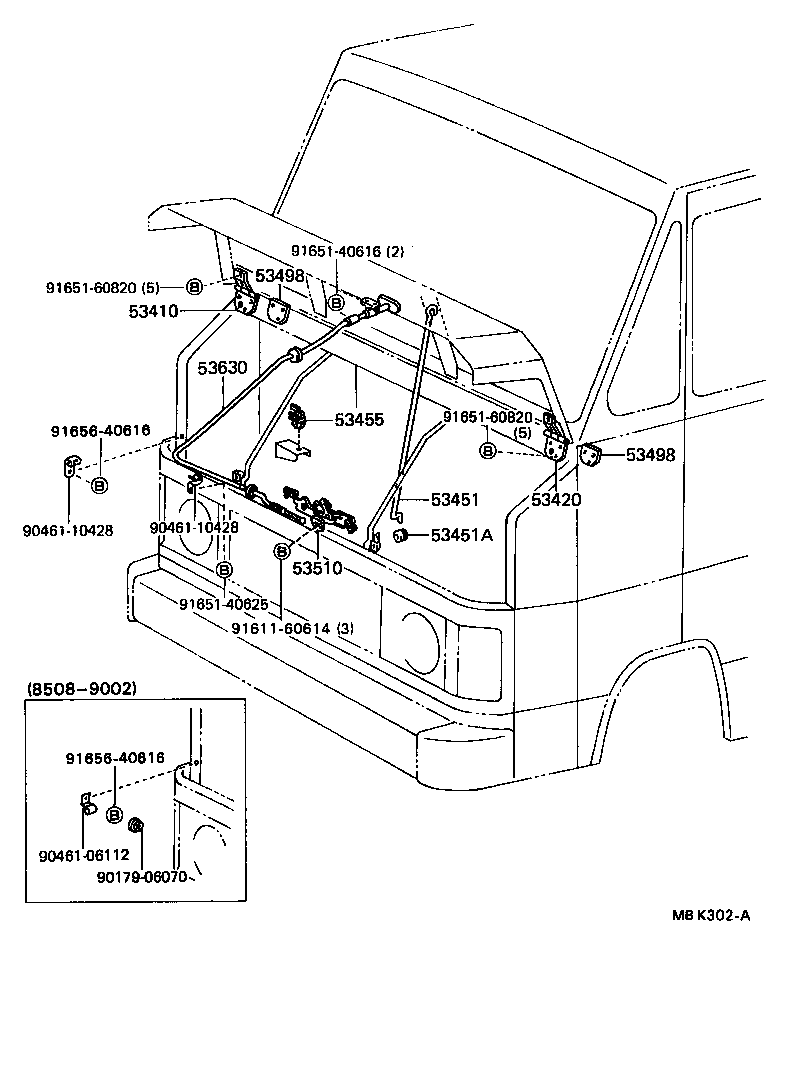

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53498 53498 53510 53630 9017906070 9046106112 9046110428 9046110428 9161160614 9165140616 9165140625 9165160820 9165160820 9165640616 9165640616
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53401-90D00

BU60

 1
53420 - HINGE ASSY, HOOD, LH
53401-90D00

BU60

 1
53451 - ROD, HOOD SUPPORT
53451-90D01

BU60

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15296

BU60

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-14020

BU60

 1
53498 - PAD, HOOD HINGE, NO.2
53498-90D00

BU60

 2
53498 - PAD, HOOD HINGE, NO.2
53498-90D00

BU60

 2
53510 - LOCK ASSY, HOOD
53510-90D01

BU60

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-90D00

BU60

 1
Common parts
90179-06070
90461-06112
90461-10428
91611-60614
91651-40616
91651-40625
91651-60820
91656-40616
