BU60VH-QNFTF (1986)
Toyota Dyna/Toyoace Quick
Production
Jan 1986
-
May 1995
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

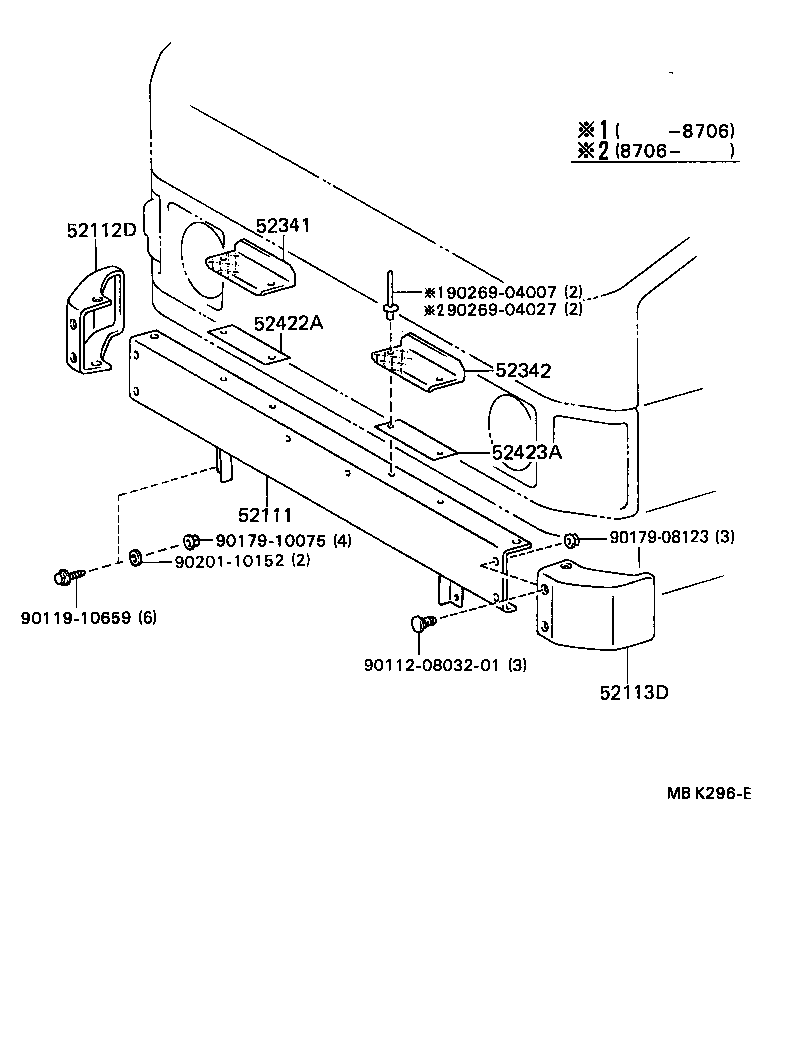

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111 - BUMPER ASSY, FRONT | ||||
| 52018-90F00 |
BU60 |
1 | ||
| 52018-90F01 |
BU60 |
1 | ||
| 52018-90F02 |
BU60 |
1 | ||
| 52018-90F04 |
BU60 |
1 | ||
| 52018-90F06 |
BU60 |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-90D00 |
BU60 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52112-90D00 |
BU60 |
1 | ||
| 52341 - STEP, FRONT BUMPER, RH | ||||
| 52341-90D02 |
BU60 |
1 | ||
| 52341-90D03 |
BU60 |
1 | ||
| 52341-26010 |
BU60 |
1 | ||
| 52342 - STEP, FRONT BUMPER, LH | ||||
| 52341-90D02 |
BU60 |
1 | ||
| 52341-26010 |
BU60 |
1 | ||
| 52341-90D03 |
BU60 |
1 | ||
| 52422A - PAD, FRONT BUMPER, RH | ||||
| 52421-26010 |
BU60 |
1 | ||
| 52421-90D00 |
BU60 |
1 | ||
| 52421-90D01 |
BU60 |
1 | ||
| 52423A - PAD, FRONT BUMPER, LH | ||||
| 52421-90D01 |
BU60 |
1 | ||
| 52421-26010 |
BU60 |
1 | ||
| 52421-90D00 |
BU60 |
1 | ||
| Common parts | ||||
| 90112-0803201 | ||||
| 90119-10659 | ||||
| 90179-08123 | ||||
| 90179-10075 | ||||
| 90201-10152 | ||||
| 90269-04007 | ||||
| 90269-04027 | ||||
